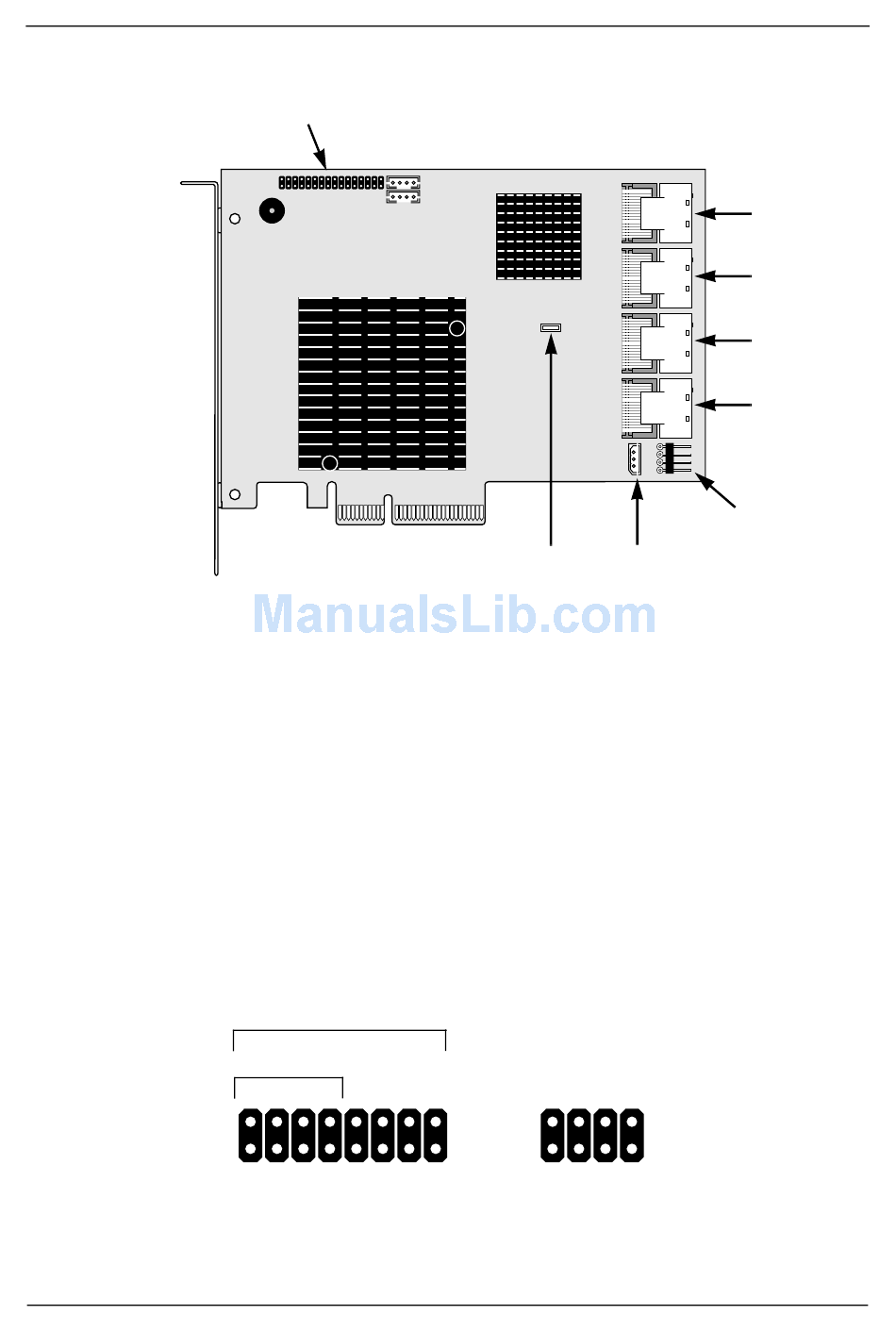

Figure 5. SuperTrak EX16650 card
Activity and Fault LED Pins
6. Attach the other end of the SAS multi-lane cable to a SAS port on your
enclosure's backplane or to your SAS expander.
For more information, see the user manual for your enclosure or SAS
expander.
7. Optional. Repeat steps 5 and 6 for the other SAS ports on the SuperTrak
EX8650, EX8654, EX8658, or 16650 card.
8. Optional. Attach cables from the LED pins on the SuperTrak card to the
LEDs in your PC or enclosure. See Figures 5 through 7.
For more information, see "Appendix D: LED Backplane Connections" on
page 291 and the user manual for your PC or enclosure.
Figure 6. Individual LED pins, EX4650, EX8650, and EX8654
Activity LEDs
Fault LEDs
EX8650
EX4650
1 2 3 4 5 6 7
Ports/Channels
BBU module
connector
EX8654
8 4 3 2
Ports/Channels
12
SAS Ports
Ch13-16
Ch9-12
Ch5-8
Ch1-4
Global and
Aggregate
LED Pins
SuperSwap
connector
Fault LEDs
Activity LEDs
1
