Appendix D: LED Backplane Connections

• Schematic Diagrams (below)
• Direct LED Display (page 293)
• Aggregate LED Display (page 293)
• Global LED Display (page 294)

Schematic Diagrams

To set up LED configuration for your enclosure or PC, make your backplane
connections as shown below. You can make connections for:
• Aggregate LEDs
• Global LEDs in two colors
• Direct connection – Individual fault and activity LEDs
For SuperTrak EX8654 and EX8658, note that only the interior SAS Ports
have individual LED pins.
For more information, see "Installing the SuperTrak Card" on page 9 and the user
manual for your PC or enclosure.

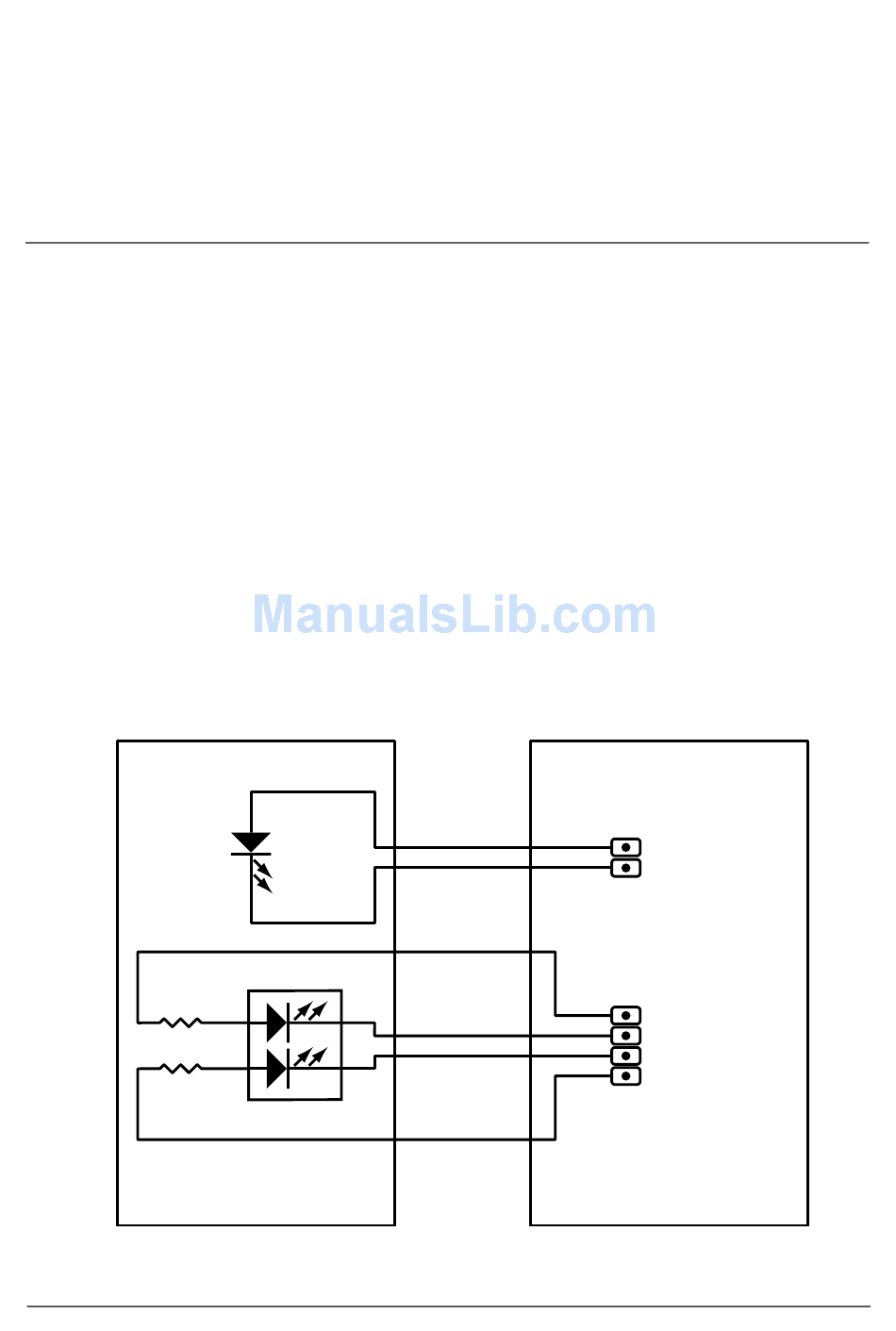

Figure 1. SuperTrak Aggregate and Global LED backplane connections
Backplane
0 Ω
0 Ω
Optional resistors for
tuning LED brightness.
1
2
D-704578362
1 2
3 4
LED R+G
SuperTrak Controller Card
LED activity = Low
1
2
pin pitch 2.54 mm
for header
1
2
3
4
pin pitch 2.54 mm
for header
291
Aggregate
LEDs
+
Global
R
LEDs
G
+
