Table 8-5 Set Up Wiring Procedure For Rtd Inputs - Honeywell UDC2300 Product Manual

Input Calibration
RTD Inputs
Refer to Figure 8-4 and wire the controller according to the procedure given in Table 8-5.
Make sure the jumper at S101 is in the #2 position. See Figure 2-2 Jumper Placements
Step
1 Connect the copper leads from the calibrator to the Input #1 terminals as shown in
Figure 8-4.
Place current source at zero before switching on.
2
Do not switch current sources ON/OFF while connected to the UDC2300 input.
3

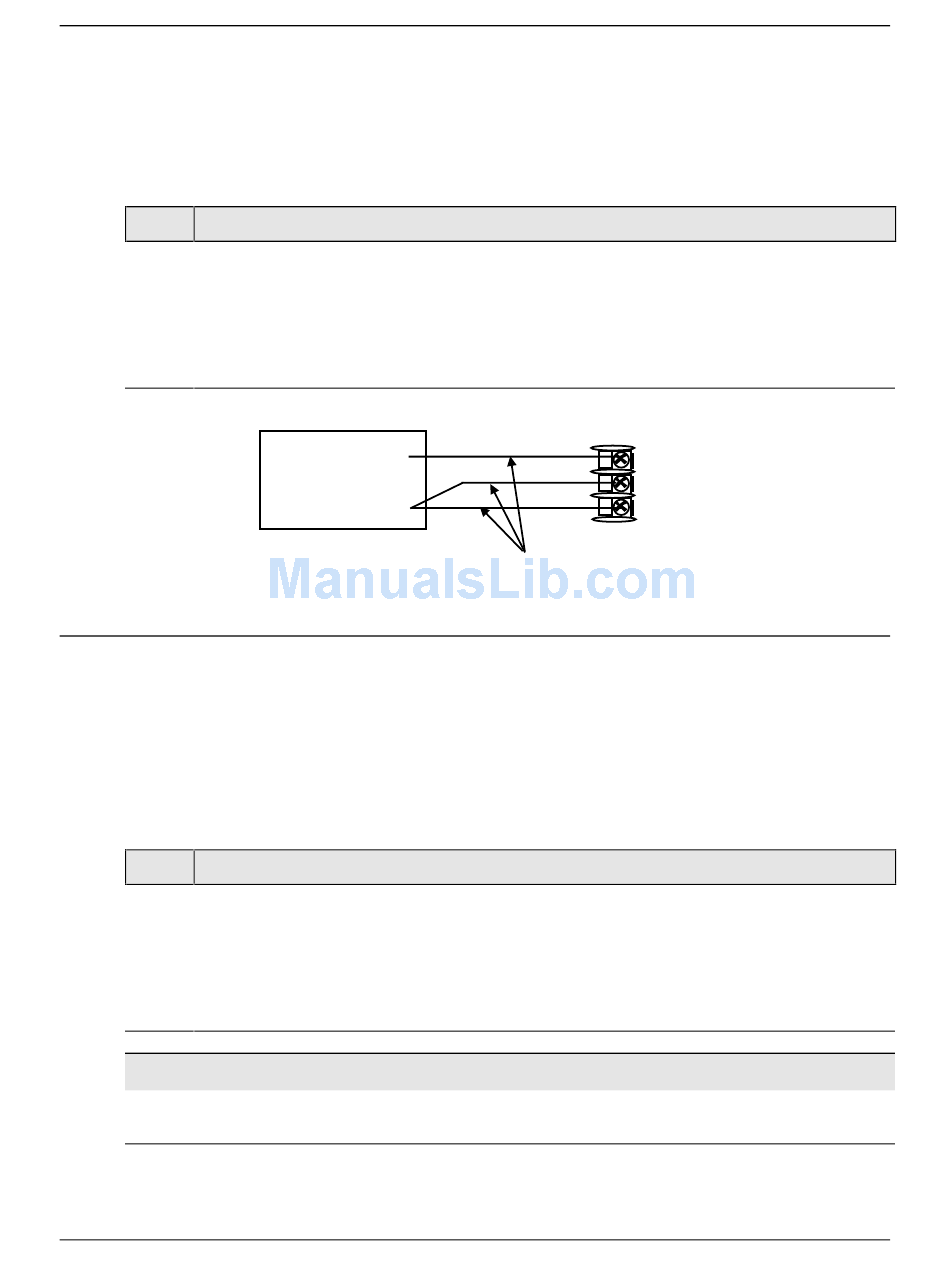

Figure 8-4 Wiring Connections for RTD (Resistance Thermometer Device)
Radiamatic, Millivolts, Milliamperes, or Volts
Refer to Figure 8-5 and wire the controller according to the procedure given in Table 8-6.
Make sure the jumper at S101 is in the #2 position for, mV, Volts, or the #4 position for
mA. See Figure 2-2 Jumper Placements.
Table 8-6 Set Up Wiring Procedure for Radiamatic, Milliampere, Millivolts,
Step
1 Connect the copper leads from the calibrator to the Input #1 terminals as shown in
Figure 8-5.
Place current source at zero before switching on.
2
Do not switch current sources ON/OFF while connected to the UDC2300 input.
3
ATTENTION
For radiamatic inputs only, set emissivity value to 1.0. See Subsection 4.9 – Configuration Set
Up prompt INPUT1, function prompt EMISS.
88

Table 8-5 Set Up Wiring Procedure for RTD Inputs

Decade
Resistance
Box
or Volts Inputs (Except 0-10 Volts)
UDC2300 Controller Product Manual
Action
8
+
_
7
6
R
24875
Copper Leads
Equal Length
Action
Continued next page
12/00
