7. LW3 Programmers' Reference

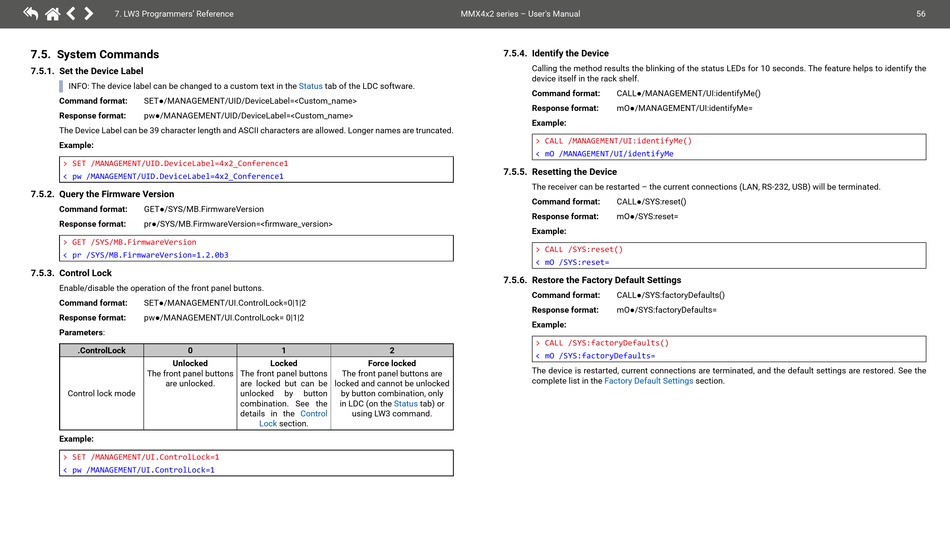

7.5. System Commands
7.5.1. Set the Device Label
INFO: The device label can be changed to a custom text in the
Command format: SET●/MANAGEMENT/UID/DeviceLabel=<Custom_name>
Response format: pw●/MANAGEMENT/UID/DeviceLabel=<Custom_name>
The Device Label can be 39 character length and ASCII characters are allowed. Longer names are truncated.
Example:
˃ SET /MANAGEMENT/UID.DeviceLabel=4x2_Conference1
˂ pw /MANAGEMENT/UID.DeviceLabel=4x2_Conference1
7.5.2. Query the Firmware Version
Command format: GET●/SYS/MB.FirmwareVersion
Response format: pr●/SYS/MB.FirmwareVersion=<firmware_version>
˃ GET /SYS/MB.FirmwareVersion
˂ pr /SYS/MB.FirmwareVersion=1.2.0b3
7.5.3. Control Lock
Enable/disable the operation of the front panel buttons.
Command format: SET●/MANAGEMENT/UI.ControlLock=0|1|2
Response format: pw●/MANAGEMENT/UI.ControlLock= 0|1|2
Parameters:
.ControlLock 0
Unlocked
The front panel buttons
are unlocked.
Control lock mode
Example:
˃ SET /MANAGEMENT/UI.ControlLock=1
˂ pw /MANAGEMENT/UI.ControlLock=1
Status tab of the LDC software.
1 2
Locked Force locked
The front panel buttons The front panel buttons are
are locked but can be locked and cannot be unlocked
unlocked by button by button combination, only
combination. See the in LDC (on the Status tab) or
details in the Control using LW3 command.
Lock section.
MMX4x2 series – User's Manual
7.5.4. Identify the Device
Calling the method results the blinking of the status LEDs for 10 seconds. The feature helps to identify the
device itself in the rack shelf.
Command format: CALL●/MANAGEMENT/UI:identifyMe()
Response format: mO●/MANAGEMENT/UI:identifyMe=
Example:
˃ CALL /MANAGEMENT/UI:identifyMe()
˂ mO /MANAGEMENT/UI/identifyMe
7.5.5. Resetting the Device
The receiver can be restarted – the current connections (LAN, RS-232, USB) will be terminated.
Command format: CALL●/SYS:reset()
Response format: mO●/SYS:reset=
Example:
˃ CALL /SYS:reset()
˂ mO /SYS:reset=
7.5.6. Restore the Factory Default Settings
Command format: CALL●/SYS:factoryDefaults()
Response format: mO●/SYS:factoryDefaults=
Example:
˃ CALL /SYS:factoryDefaults()
˂ mO /SYS:factoryDefaults=
The device is restarted, current connections are terminated, and the default settings are restored. See the
complete list in the Factory Default Settings section.
