5. Software Control - Lightware Device Controller

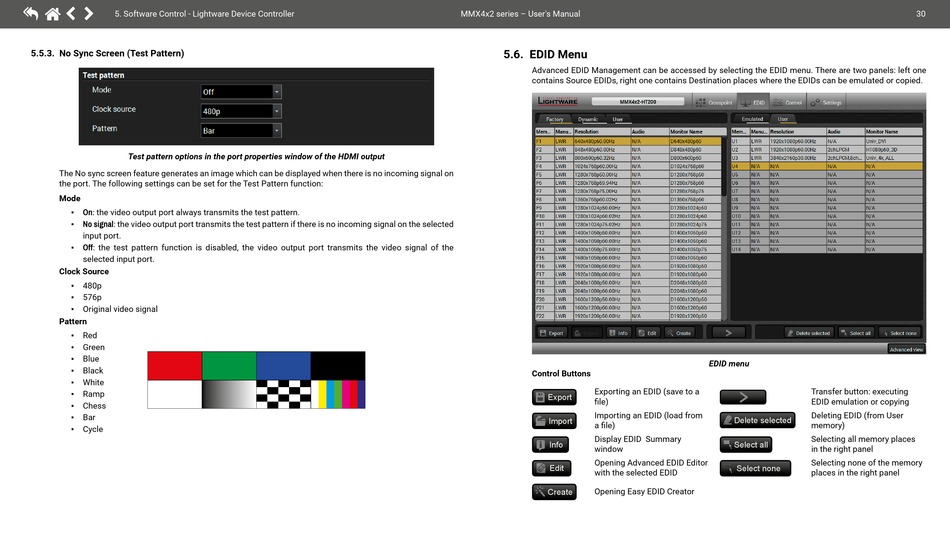

5.5.3. No Sync Screen (Test Pattern)
Test pattern options in the port properties window of the HDMI output
The No sync screen feature generates an image which can be displayed when there is no incoming signal on
the port. The following settings can be set for the Test Pattern function:
Mode
▪ On: the video output port always transmits the test pattern.
▪ No signal: the video output port transmits the test pattern if there is no incoming signal on the selected
input port.
▪ Off: the test pattern function is disabled, the video output port transmits the video signal of the
selected input port.
Clock Source
480p
▪
▪ 576p
▪ Original video signal
Pattern
Red
▪
▪ Green
▪ Blue
Black
▪
▪ White
▪ Ramp
Chess
▪
▪ Bar
▪ Cycle
MMX4x2 series – User's Manual
5.6. EDID Menu
Advanced EDID Management can be accessed by selecting the EDID menu. There are two panels: left one
contains Source EDIDs, right one contains Destination places where the EDIDs can be emulated or copied.
A
Control Buttons
A
Exporting an EDID (save to a
Export
file)
A
Importing an EDID (load from
Import
a file)
A
Display EDID Summary
Info
window
A
Opening Advanced EDID Editor
Edit
with the selected EDID
Opening Easy EDID Creator
Create

EDID menu

A
Transfer button: executing
EDID emulation or copying
A
Deleting EDID (from User
Delete selected
memory)
A
Selecting all memory places
Select all
in the right panel
Selecting none of the memory
Select none
places in the right panel
