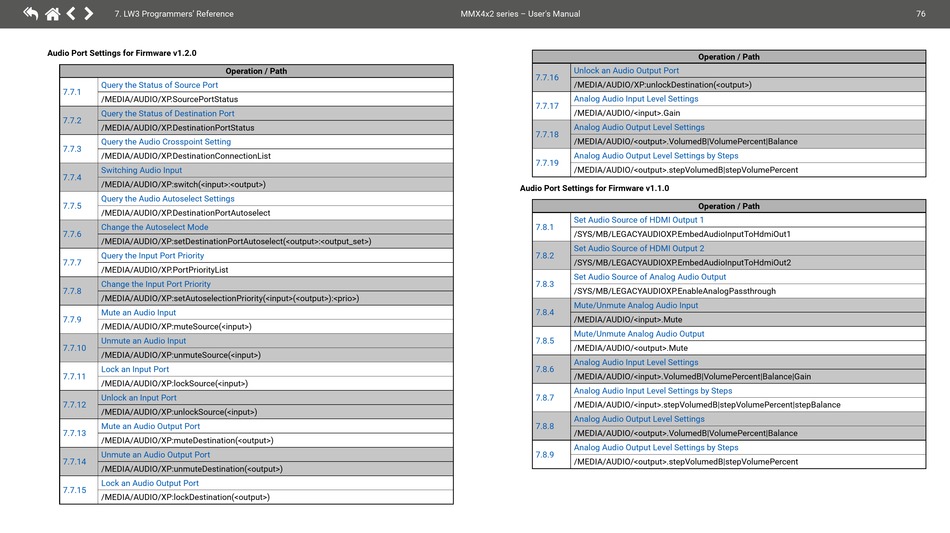

7. LW3 Programmers' Reference
Audio Port Settings for Firmware v1.2.0
Query the Status of Source Port
7.7.1
/MEDIA/AUDIO/XP.SourcePortStatus
Query the Status of Destination Port
7.7.2
/MEDIA/AUDIO/XP.DestinationPortStatus
Query the Audio Crosspoint Setting
7.7.3
/MEDIA/AUDIO/XP.DestinationConnectionList
Switching Audio Input
7.7.4
/MEDIA/AUDIO/XP:switch(<input>:<output>)
Query the Audio Autoselect Settings
7.7.5
/MEDIA/AUDIO/XP.DestinationPortAutoselect
Change the Autoselect Mode
7.7.6
/MEDIA/AUDIO/XP:setDestinationPortAutoselect(<output>:<output_set>)
Query the Input Port Priority
7.7.7
/MEDIA/AUDIO/XP.PortPriorityList
Change the Input Port Priority
7.7.8
/MEDIA/AUDIO/XP:setAutoselectionPriority(<input>(<output>):<prio>)
Mute an Audio Input
7.7.9
/MEDIA/AUDIO/XP:muteSource(<input>)
Unmute an Audio Input
7.7.10
/MEDIA/AUDIO/XP:unmuteSource(<input>)
Lock an Input Port
7.7.11
/MEDIA/AUDIO/XP:lockSource(<input>)
Unlock an Input Port
7.7.12
/MEDIA/AUDIO/XP:unlockSource(<input>)
Mute an Audio Output Port
7.7.13
/MEDIA/AUDIO/XP:muteDestination(<output>)
Unmute an Audio Output Port
7.7.14
/MEDIA/AUDIO/XP:unmuteDestination(<output>)
Lock an Audio Output Port
7.7.15
/MEDIA/AUDIO/XP:lockDestination(<output>)
Operation / Path
MMX4x2 series – User's Manual
Unlock an Audio Output Port
7.7.16
/MEDIA/AUDIO/XP:unlockDestination(<output>)
Analog Audio Input Level Settings
7.7.17
/MEDIA/AUDIO/<input>.Gain
Analog Audio Output Level Settings
7.7.18
/MEDIA/AUDIO/<output>.VolumedB|VolumePercent|Balance
Analog Audio Output Level Settings by Steps
7.7.19
/MEDIA/AUDIO/<output>.stepVolumedB|stepVolumePercent
Audio Port Settings for Firmware v1.1.0
Set Audio Source of HDMI Output 1
7.8.1
/SYS/MB/LEGACYAUDIOXP.EmbedAudioInputToHdmiOut1
Set Audio Source of HDMI Output 2
7.8.2
/SYS/MB/LEGACYAUDIOXP.EmbedAudioInputToHdmiOut2
Set Audio Source of Analog Audio Output
7.8.3
/SYS/MB/LEGACYAUDIOXP.EnableAnalogPassthrough
Mute/Unmute Analog Audio Input
7.8.4
/MEDIA/AUDIO/<input>.Mute
Mute/Unmute Analog Audio Output
7.8.5
/MEDIA/AUDIO/<output>.Mute
Analog Audio Input Level Settings
7.8.6
/MEDIA/AUDIO/<input>.VolumedB|VolumePercent|Balance|Gain
Analog Audio Input Level Settings by Steps
7.8.7
/MEDIA/AUDIO/<input>.stepVolumedB|stepVolumePercent|stepBalance
Analog Audio Output Level Settings
7.8.8
/MEDIA/AUDIO/<output>.VolumedB|VolumePercent|Balance
Analog Audio Output Level Settings by Steps
7.8.9
/MEDIA/AUDIO/<output>.stepVolumedB|stepVolumePercent
Operation / Path
Operation / Path
