5. Software Control - Lightware Device Controller

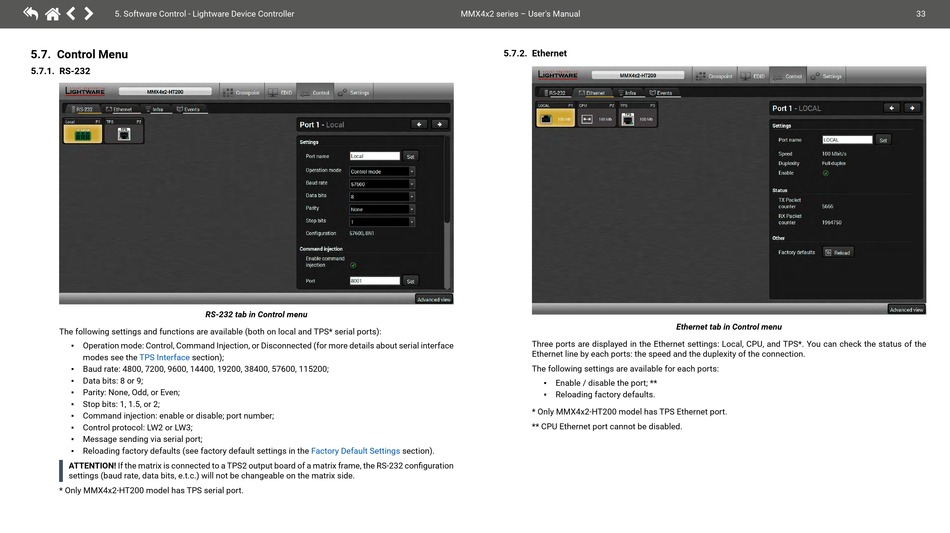

5.7. Control Menu
5.7.1. RS-232
The following settings and functions are available (both on local and TPS* serial ports):
Operation mode: Control, Command Injection, or Disconnected (for more details about serial interface
▪
modes see the TPS Interface section);
▪ Baud rate: 4800, 7200, 9600, 14400, 19200, 38400, 57600, 115200;
Data bits: 8 or 9;
▪
▪ Parity: None, Odd, or Even;
▪ Stop bits: 1, 1.5, or 2;
Command injection: enable or disable; port number;
▪
Control protocol: LW2 or LW3;
▪
▪ Message sending via serial port;
▪ Reloading factory defaults (see factory default settings in the
ATTENTION! If the matrix is connected to a TPS2 output board of a matrix frame, the RS-232 configuration
settings (baud rate, data bits, e.t.c.) will not be changeable on the matrix side.
* Only MMX4x2-HT200 model has TPS serial port.
RS-232 tab in Control menu
Factory Default Settings
MMX4x2 series – User's Manual
5.7.2. Ethernet
Three ports are displayed in the Ethernet settings: Local, CPU, and TPS*. You can check the status of the
Ethernet line by each ports: the speed and the duplexity of the connection.
The following settings are available for each ports:
Enable / disable the port; **
▪
Reloading factory defaults.
▪
* Only MMX4x2-HT200 model has TPS Ethernet port.
** CPU Ethernet port cannot be disabled.
section).
Ethernet tab in Control menu
33
