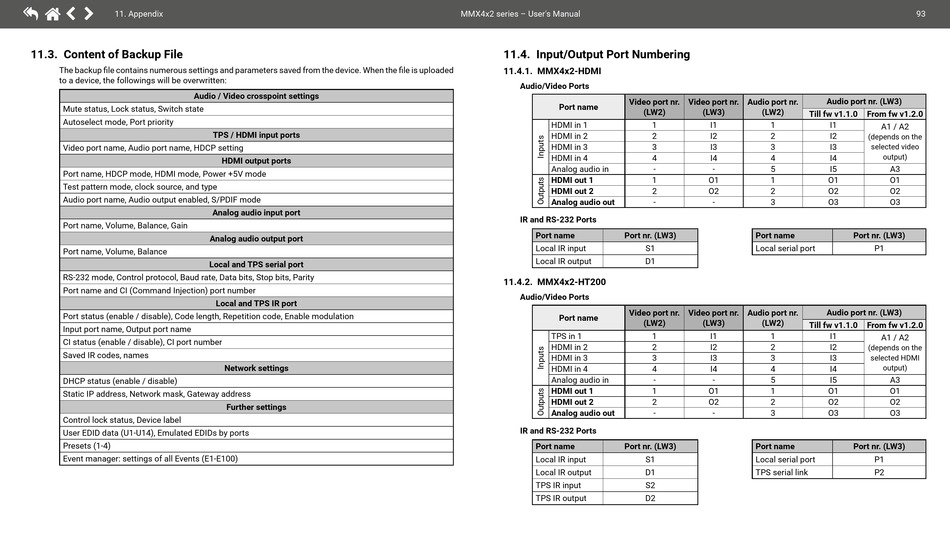

11.3. Content of Backup File
The backup file contains numerous settings and parameters saved from the device. When the file is uploaded
to a device, the followings will be overwritten:
Audio / Video crosspoint settings
Mute status, Lock status, Switch state
Autoselect mode, Port priority
Video port name, Audio port name, HDCP setting
Port name, HDCP mode, HDMI mode, Power +5V mode
Test pattern mode, clock source, and type
Audio port name, Audio output enabled, S/PDIF mode
Port name, Volume, Balance, Gain
Port name, Volume, Balance
RS-232 mode, Control protocol, Baud rate, Data bits, Stop bits, Parity
Port name and CI (Command Injection) port number
Port status (enable / disable), Code length, Repetition code, Enable modulation
Input port name, Output port name
CI status (enable / disable), CI port number
Saved IR codes, names
DHCP status (enable / disable)
Static IP address, Network mask, Gateway address
Control lock status, Device label
User EDID data (U1-U14), Emulated EDIDs by ports
Presets (1-4)
Event manager: settings of all Events (E1-E100)
TPS / HDMI input ports
HDMI output ports
Analog audio input port
Analog audio output port
Local and TPS serial port
Local and TPS IR port
Network settings
Further settings
MMX4x2 series – User's Manual
11.4. Input/Output Port Numbering
11.4.1. MMX4x2-HDMI
Audio/Video Ports
Video port nr.
Port name
HDMI in 1
HDMI in 2
HDMI in 3
HDMI in 4
Analog audio in
HDMI out 1
HDMI out 2
Analog audio out
IR and RS-232 Ports
Port name Port nr. (LW3)
Local IR input
Local IR output
11.4.2. MMX4x2-HT200
Audio/Video Ports
Video port nr.
Port name
TPS in 1
HDMI in 2
HDMI in 3
HDMI in 4
Analog audio in
HDMI out 1
HDMI out 2
Analog audio out
IR and RS-232 Ports
Port name Port nr. (LW3)
Local IR input
Local IR output
TPS IR input
TPS IR output
Video port nr. Audio port nr.
(LW2) (LW3) (LW2)
Till fw v1.1.0
1 I1 1
2 I2 2
3 I3 3
4 I4 4
- - 5
1 O1 1
2 O2 2
- - 3
Port name
S1 Local serial port
D1
Video port nr. Audio port nr.
(LW2) (LW3) (LW2)
Till fw v1.1.0
1 I1 1
2 I2 2
3 I3 3
4 I4 4
- - 5
1 O1 1
2 O2 2
- - 3
Port name
S1 Local serial port
D1 TPS serial link
S2
D2
93
Audio port nr. (LW3)
From fw v1.2.0
I1
A1 / A2
I2
(depends on the
I3 selected video
output)
I4
I5 A3
O1 O1
O2 O2
O3 O3
Port nr. (LW3)
P1
Audio port nr. (LW3)
From fw v1.2.0
I1
A1 / A2
I2
(depends on the
I3 selected HDMI
output)
I4
I5 A3
O1 O1
O2 O2
O3 O3
Port nr. (LW3)
P1
P2
