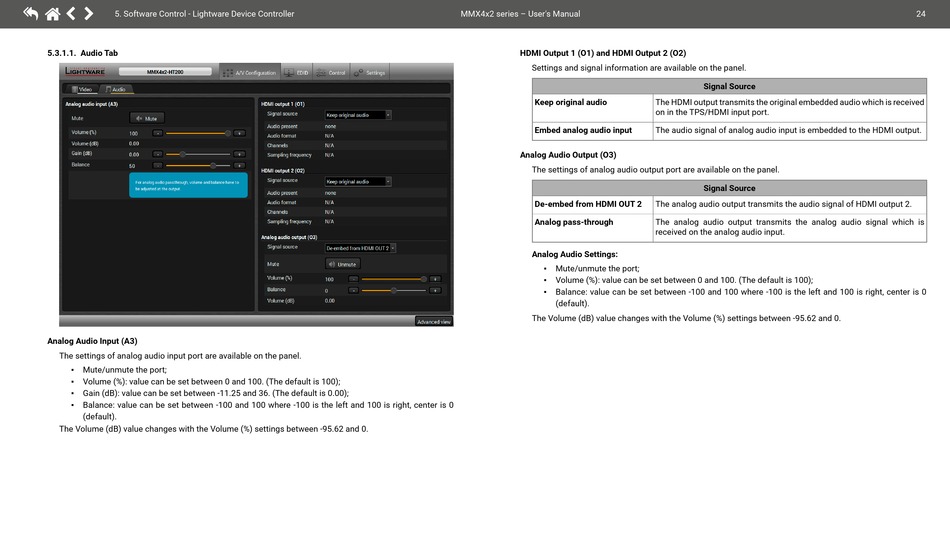

Lightware MMX4x2-HT200 User Manual page 24


  
5. Software Control - Lightware Device Controller
5.3.1.1. Audio Tab
Analog Audio Input (A3)
The settings of analog audio input port are available on the panel.
Mute/unmute the port;
▪
Volume (%): value can be set between 0 and 100. (The default is 100);
▪
▪ Gain (dB): value can be set between -11.25 and 36. (The default is 0.00);
▪ Balance: value can be set between -100 and 100 where -100 is the left and 100 is right, center is 0
(default).
The Volume (dB) value changes with the Volume (%) settings between -95.62 and 0.
MMX4x2 series – User's Manual
HDMI Output 1 (O1) and HDMI Output 2 (O2)
Settings and signal information are available on the panel.
Keep original audio
Embed analog audio input
Analog Audio Output (O3)
The settings of analog audio output port are available on the panel.
De-embed from HDMI OUT 2
Analog pass-through
Analog Audio Settings:
▪ Mute/unmute the port;
▪ Volume (%): value can be set between 0 and 100. (The default is 100);
Balance: value can be set between -100 and 100 where -100 is the left and 100 is right, center is 0
▪
(default).
The Volume (dB) value changes with the Volume (%) settings between -95.62 and 0.
Signal Source
The HDMI output transmits the original embedded audio which is received
on in the TPS/HDMI input port.
The audio signal of analog audio input is embedded to the HDMI output.
Signal Source
The analog audio output transmits the audio signal of HDMI output 2.
The analog audio output transmits the analog audio signal which is
received on the analog audio input.
