5. Software Control - Lightware Device Controller
5.4.2. HDMI Video Input

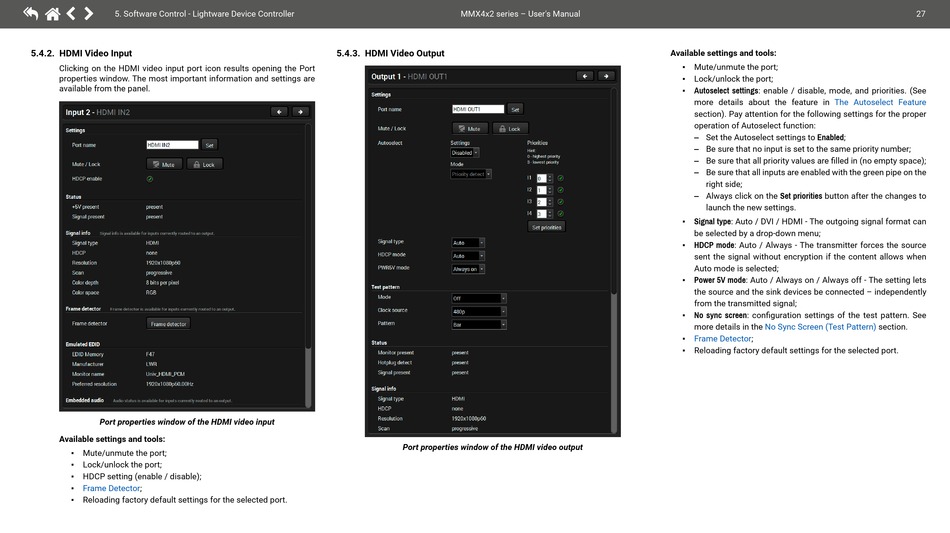

Clicking on the HDMI video input port icon results opening the Port
properties window. The most important information and settings are
available from the panel.
Port properties window of the HDMI video input
Available settings and tools:
▪ Mute/unmute the port;
Lock/unlock the port;
▪
▪ HDCP setting (enable / disable);
▪ Frame Detector;
Reloading factory default settings for the selected port.
▪
MMX4x2 series – User's Manual
5.4.3. HDMI Video Output
Port properties window of the HDMI video output
Available settings and tools:
▪ Mute/unmute the port;
Lock/unlock the port;
▪
Autoselect settings: enable / disable, mode, and priorities. (See
▪
more details about the feature in The Autoselect Feature
section). Pay attention for the following settings for the proper
operation of Autoselect function:
– Set the Autoselect settings to Enabled;
– Be sure that no input is set to the same priority number;
– Be sure that all priority values are filled in (no empty space);
– Be sure that all inputs are enabled with the green pipe on the
right side;
– Always click on the Set priorities button after the changes to
launch the new settings.
Signal type: Auto / DVI / HDMI - The outgoing signal format can
▪
be selected by a drop-down menu;
▪ HDCP mode: Auto / Always - The transmitter forces the source
sent the signal without encryption if the content allows when
Auto mode is selected;
▪ Power 5V mode: Auto / Always on / Always off - The setting lets
the source and the sink devices be connected – independently
from the transmitted signal;
▪ No sync screen: configuration settings of the test pattern. See
more details in the No Sync Screen (Test Pattern)
Frame Detector;
▪
▪ Reloading factory default settings for the selected port.
27
section.
