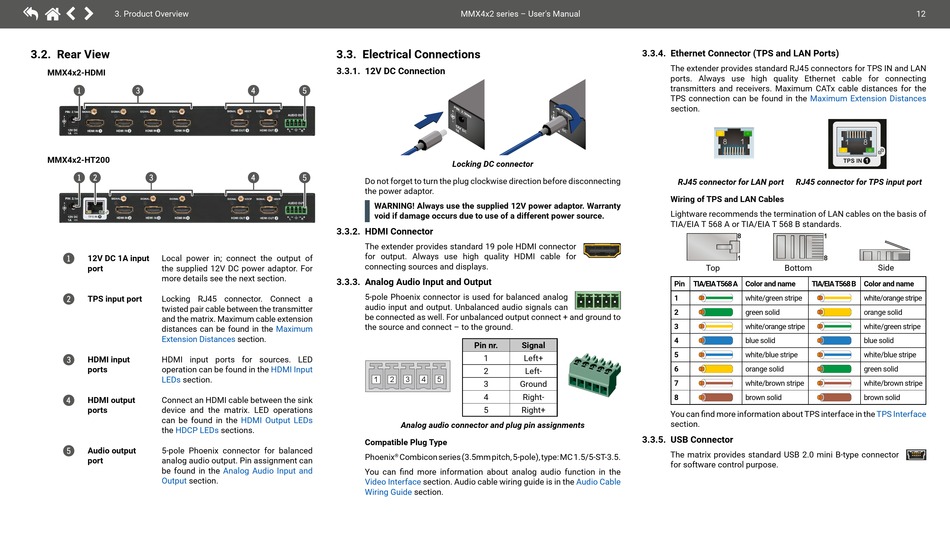

3. Product Overview
3.2. Rear View
MMX4x2-HDMI
1 3
MMX4x2-HT200
1 2 3
1 12V DC 1A input Local power in; connect the output of
port the supplied 12V DC power adaptor. For
more details see the next section.
2 TPS input port Locking RJ45 connector. Connect a
twisted pair cable between the transmitter
and the matrix. Maximum cable extension
distances can be found in the
Extension Distances
HDMI input HDMI input ports for sources. LED
3
ports operation can be found in the
LEDs section.
4 HDMI output Connect an HDMI cable between the sink
ports device and the matrix. LED operations
can be found in the
the HDCP LEDs
Audio output 5-pole Phoenix connector for balanced
5
port analog audio output. Pin assignment can
be found in the
Output section.
3.3. Electrical Connections
3.3.1. 12V DC Connection
4 5
4 5
Do not forget to turn the plug clockwise direction before disconnecting
the power adaptor.
WARNING! Always use the supplied 12V power adaptor. Warranty
void if damage occurs due to use of a different power source.
3.3.2. HDMI Connector
The extender provides standard 19 pole HDMI connector
for output. Always use high quality HDMI cable for
connecting sources and displays.
3.3.3. Analog Audio Input and Output
5-pole Phoenix connector is used for balanced analog
audio input and output. Unbalanced audio signals can
be connected as well. For unbalanced output connect + and ground to
the source and connect – to the ground.
Maximum
section.
HDMI Input
1 2
HDMI Output LEDs
sections.
Compatible Plug Type
Phoenix Combicon series (3.5mm pitch, 5-pole), type: MC 1.5/5-ST-3.5.
®
Analog Audio Input and
You can find more information about analog audio function in the
Video Interface
Wiring Guide
MMX4x2 series – User's Manual
P I P I
N : N :
2 . 1
2 . 1
m m
m m
1 2 1 2
V V
1 A D 1 A D C
C
Locking DC connector
Pin nr. Signal
1 Left+
2 Left-
3 4 5
3 Ground
4 Right-
5 Right+
Analog audio connector and plug pin assignments
section. Audio cable wiring guide is in the Audio Cable
section.
3.3.4. Ethernet Connector (TPS and LAN Ports)
The extender provides standard RJ45 connectors for TPS IN and LAN
ports. Always use high quality Ethernet cable for connecting
transmitters and receivers. Maximum CATx cable distances for the
TPS connection can be found in the Maximum Extension Distances
section.
8 1
RJ45 connector for LAN port RJ45 connector for TPS input port
Wiring of TPS and LAN Cables
Lightware recommends the termination of LAN cables on the basis of
TIA/EIA T 568 A or TIA/EIA T 568 B standards.
8
1
Top Bottom
Pin TIA/EIA T568 A Color and name TIA/EIA T568 B Color and name
1 white/green stripe
2 green solid
3 white/orange stripe
4 blue solid
5 white/blue stripe
6 orange solid
7 white/brown stripe
8 brown solid
You can find more information about TPS interface in the
section.
3.3.5. USB Connector
The matrix provides standard USB 2.0 mini B-type connector
for software control purpose.
12
1 8
1
8
Side
white/orange stripe
orange solid
white/green stripe
blue solid
white/blue stripe
green solid
white/brown stripe
brown solid
TPS Interface
