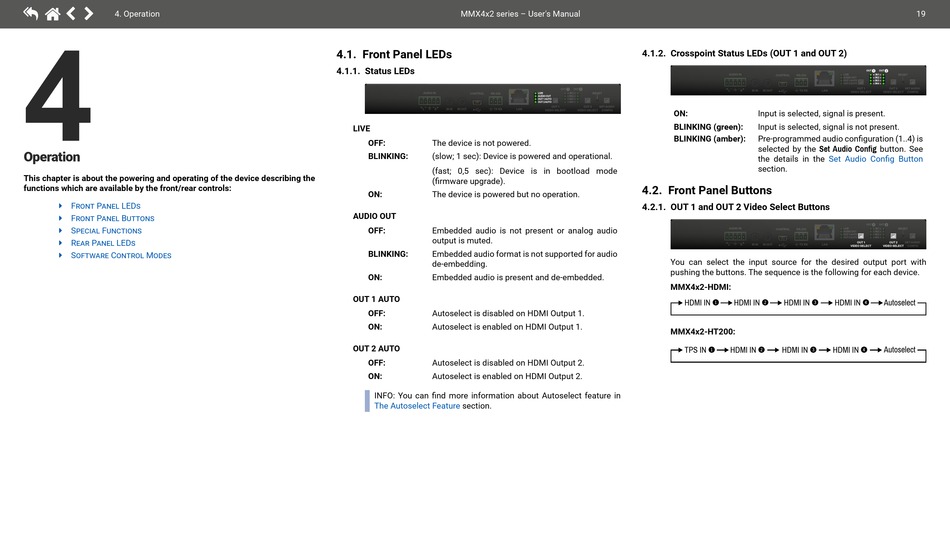

4. Operation

4
O peration
This chapter is about the powering and operating of the device describing the
functions which are available by the front/rear controls:

Front Panel LEDs

Î

Front Panel Buttons

Î
Special Functions
Î
Rear Panel LEDs
Î
Software Control Modes
Î
MMX4x2 series – User's Manual
4.1. Front Panel LEDs
4.1.1. Status LEDs
AUDIO IN
CONTROL RS-232
L R IR IN IR OUT TX RX
LIVE
OFF: The device is not powered.
BLINKING: (slow; 1 sec): Device is powered and operational.
(fast; 0,5 sec): Device is in bootload mode
(firmware upgrade).
ON: The device is powered but no operation.
AUDIO OUT
OFF: Embedded audio is not present or analog audio
output is muted.
BLINKING: Embedded audio format is not supported for audio
de-embedding.
ON: Embedded audio is present and de-embedded.
OUT 1 AUTO
OFF: Autoselect is disabled on HDMI Output 1.
ON: Autoselect is enabled on HDMI Output 1.
OUT 2 AUTO
OFF: Autoselect is disabled on HDMI Output 2.
ON: Autoselect is enabled on HDMI Output 2.
INFO: You can find more information about Autoselect feature in
The Autoselect Feature section.
4.1.2. Crosspoint Status LEDs (OUT 1 and OUT 2)
OUT OUT
LIVE IN 1 RESET
AUDIO OUT IN 2
OUT 1 AUTO IN 3
OUT 2 AUTO IN 4
OUT 1 OUT 2 SET AUDIO
LAN ON:
VIDEO SELECT VIDEO SELECT CONFIG
BLINKING (green):
BLINKING (amber):
4.2. Front Panel Buttons
4.2.1. OUT 1 and OUT 2 Video Select Buttons
You can select the input source for the desired output port with
pushing the buttons. The sequence is the following for each device.
MMX4x2-HDMI:
HDMI IN 1
MMX4x2-HT200:
TPS IN 1
OUT OUT
AUDIO IN
CONTROL RS-232 LIVE IN 1 RESET
AUDIO OUT IN 2
OUT 1 AUTO IN 3
OUT 2 AUTO IN 4
OUT 1 OUT 2 SET AUDIO
L R IR IN IR OUT TX RX LAN
VIDEO SELECT VIDEO SELECT CONFIG
Input is selected, signal is present.
Input is selected, signal is not present.
Pre-programmed audio configuration (1..4) is
selected by the Set Audio Config button. See
the details in the Set Audio Config Button
section.
OUT OUT
AUDIO IN
CONTROL RS-232 LIVE IN 1 RESET
AUDIO OUT IN 2
OUT 1 AUTO IN 3
OUT 2 AUTO IN 4
OUT 1 OUT 2 SET AUDIO
L R IR IN IR OUT TX RX LAN
VIDEO SELECT VIDEO SELECT CONFIG
HDMI IN 2 HDMI IN 3 HDMI IN 4 Autoselect
HDMI IN 2 HDMI IN 3 HDMI IN 4 Autoselect
