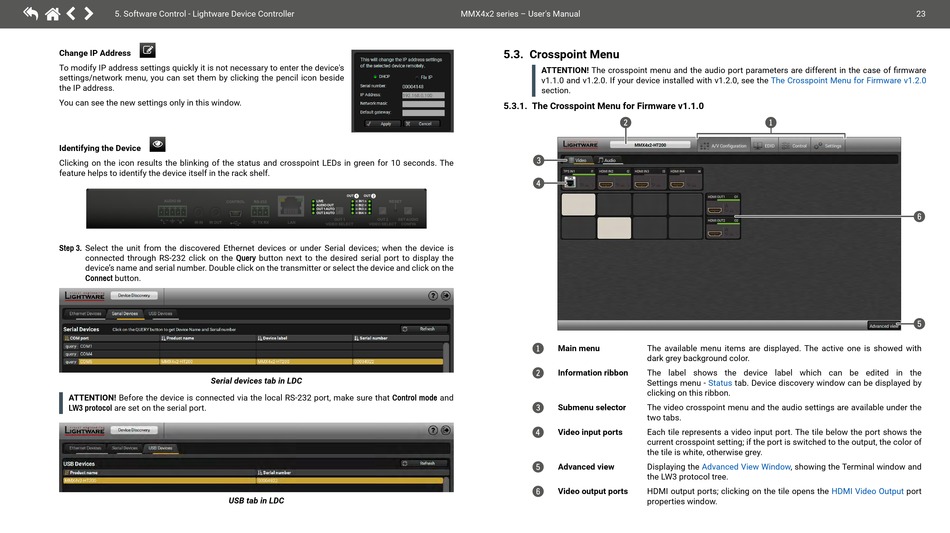

5. Software Control - Lightware Device Controller
Change IP Address
To modify IP address settings quickly it is not necessary to enter the device's
settings/network menu, you can set them by clicking the pencil icon beside
the IP address.
You can see the new settings only in this window.
Identifying the Device
Clicking on the icon results the blinking of the status and crosspoint LEDs in green for 10 seconds. The
feature helps to identify the device itself in the rack shelf.
AUDIO IN
L R IR IN
Step 3. Select the unit from the discovered Ethernet devices or under Serial devices; when the device is
connected through RS-232 click on the Query button next to the desired serial port to display the
device's name and serial number. Double click on the transmitter or select the device and click on the
Connect button.
ATTENTION! Before the device is connected via the local RS-232 port, make sure that Control mode and
LW3 protocol are set on the serial port.
OUT OUT
CONTROL RS-232 LIVE IN 1
AUDIO OUT IN 2
OUT 1 AUTO IN 3
OUT 2 AUTO IN 4
OUT 1 OUT 2
IR OUT TX RX LAN
VIDEO SELECT VIDEO SELECT
Serial devices tab in LDC
USB tab in LDC
MMX4x2 series – User's Manual
5.3. Crosspoint Menu
ATTENTION! The crosspoint menu and the audio port parameters are different in the case of firmware
v1.1.0 and v1.2.0. If your device installed with v1.2.0, see the
section.
5.3.1. The Crosspoint Menu for Firmware v1.1.0
3
4
RESET
SET AUDIO
CONFIG
1 Main menu
Information ribbon
2
Submenu selector
3
4 Video input ports
Advanced view
5
6 Video output ports
The Crosspoint Menu for Firmware v1.2.0
2 1
The available menu items are displayed. The active one is showed with
dark grey background color.
The label shows the device label which can be edited in the
Settings menu - Status tab. Device discovery window can be displayed by
clicking on this ribbon.
The video crosspoint menu and the audio settings are available under the
two tabs.
Each tile represents a video input port. The tile below the port shows the
current crosspoint setting; if the port is switched to the output, the color of
the tile is white, otherwise grey.
Displaying the Advanced View Window, showing the Terminal window and
the LW3 protocol tree.
HDMI output ports; clicking on the tile opens the
properties window.
23
6
5
HDMI Video Output port
