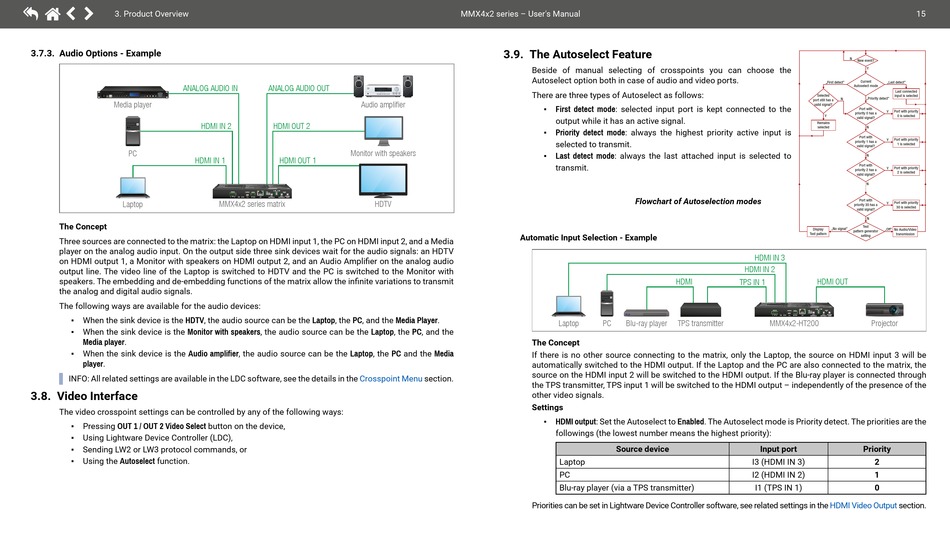

3.7.3. Audio Options - Example
ANALOG AUDIO IN
Media player
HDMI IN 2
PC
HDMI IN 1
Laptop
The Concept
Three sources are connected to the matrix: the Laptop on HDMI input 1, the PC on HDMI input 2, and a Media
player on the analog audio input. On the output side three sink devices wait for the audio signals: an HDTV
on HDMI output 1, a Monitor with speakers on HDMI output 2, and an Audio Amplifier on the analog audio
output line. The video line of the Laptop is switched to HDTV and the PC is switched to the Monitor with
speakers. The embedding and de-embedding functions of the matrix allow the infinite variations to transmit
the analog and digital audio signals.
The following ways are available for the audio devices:
▪ When the sink device is the HDTV, the audio source can be the Laptop, the PC, and the Media Player.
▪ When the sink device is the Monitor with speakers, the audio source can be the Laptop, the PC, and the
Media player.
When the sink device is the Audio amplifier, the audio source can be the Laptop, the PC and the Media
▪
player.
INFO: All related settings are available in the LDC software, see the details in the
3.8. Video Interface
The video crosspoint settings can be controlled by any of the following ways:
▪ Pressing OUT 1 / OUT 2 Video Select button on the device,
Using Lightware Device Controller (LDC),
▪
Sending LW2 or LW3 protocol commands, or
▪
▪ Using the Autoselect function.
ANALOG AUDIO OUT
Audio amplifier
HDMI OUT 2
Monitor with speakers
HDMI OUT 1
OUT OUT
AUDIO IN CONTROL RS-232 LIVE IN 1 RESET
AUDIO OUT IN 2
OUT 1 AUTO IN 3
OUT 2 AUTO IN 4
OUT 1 OUT 2 SET AUDIO
L R IR IN IR OUT TX RX LAN VIDEO SELECT VIDEO SELECT CONFIG
MMX4x2 series matrix HDTV
Crosspoint Menu
MMX4x2 series – User's Manual
3.9. The Autoselect Feature
Beside of manual selecting of crosspoints you can choose the
Autoselect option both in case of audio and video ports.
There are three types of Autoselect as follows:
▪ First detect mode: selected input port is kept connected to the
output while it has an active signal.
Priority detect mode: always the highest priority active input is
▪
selected to transmit.
▪ Last detect mode: always the last attached input is selected to
transmit.
Automatic Input Selection - Example
Laptop PC
The Concept
If there is no other source connecting to the matrix, only the Laptop, the source on HDMI input 3 will be
automatically switched to the HDMI output. If the Laptop and the PC are also connected to the matrix, the
source on the HDMI input 2 will be switched to the HDMI output. If the Blu-ray player is connected through
section.
the TPS transmitter, TPS input 1 will be switched to the HDMI output – independently of the presence of the
other video signals.
Settings
HDMI output: Set the Autoselect to Enabled. The Autoselect mode is Priority detect. The priorities are the
▪
followings (the lowest number means the highest priority):
Laptop
PC
Blu-ray player (via a TPS transmitter)
Priorities can be set in Lightware Device Controller software, see related settings in the
Flowchart of Autoselection modes
HDMI IN 3
HDMI IN 2
HDMI
TPS IN 1
AUDIO IN
CONTROL RS-232
L R IR IN IR OUT TX RX
Blu-ray player TPS transmitter MMX4x2-HT200
Source device Input port
I3 (HDMI IN 3)
I2 (HDMI IN 2)
I1 (TPS IN 1)
15
N
New event?
Y
Current
„First detect" „Last detect"
Autoselect mode
Last connected
Selected input is selected
N „Priority detect"
port still has a
valid signal?
Port with
Y Port with priority
priority 0 has a
Y 0 is selected
valid signal?
Remains
N
selected
Port with
Y Port with priority
priority 1 has a
1 is selected
valid signal?
N
Port with
Port with priority
Y
priority 2 has a
2 is selected
valid signal?
N
Port with
Y Port with priority
priority 30 has a
30 is selected
valid signal?
N
Test
„No signal" „Off"
Display No Audio/Video
pattern generator
Test pattern transmission
setting
HDMI OUT
OUT OUT
LIVE IN 1 RESET
AUDIO OUT IN 2
OUT 1 AUTO IN 3
OUT 2 AUTO IN 4
LAN OUT 1 OUT 2 SET AUDIO
VIDEO SELECT VIDEO SELECT CONFIG
Projector
Priority
2
1
0
HDMI Video Output section.
