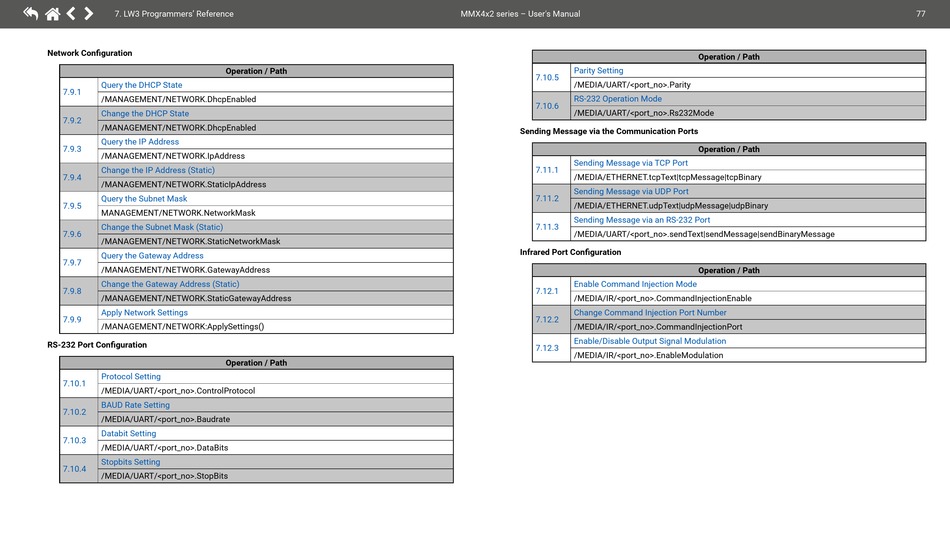

7. LW3 Programmers' Reference
Network Configuration
Query the DHCP State
7.9.1
/MANAGEMENT/NETWORK.DhcpEnabled
Change the DHCP State
7.9.2
/MANAGEMENT/NETWORK.DhcpEnabled
Query the IP Address
7.9.3
/MANAGEMENT/NETWORK.IpAddress
Change the IP Address (Static)
7.9.4
/MANAGEMENT/NETWORK.StaticIpAddress
Query the Subnet Mask
7.9.5
MANAGEMENT/NETWORK.NetworkMask
Change the Subnet Mask (Static)
7.9.6
/MANAGEMENT/NETWORK.StaticNetworkMask
Query the Gateway Address
7.9.7
/MANAGEMENT/NETWORK.GatewayAddress
Change the Gateway Address (Static)
7.9.8
/MANAGEMENT/NETWORK.StaticGatewayAddress
Apply Network Settings
7.9.9
/MANAGEMENT/NETWORK:ApplySettings()
RS-232 Port Configuration
Protocol Setting
7.10.1
/MEDIA/UART/<port_no>.ControlProtocol
BAUD Rate Setting
7.10.2
/MEDIA/UART/<port_no>.Baudrate
Databit Setting
7.10.3
/MEDIA/UART/<port_no>.DataBits
Stopbits Setting
7.10.4
/MEDIA/UART/<port_no>.StopBits
Operation / Path
Operation / Path
MMX4x2 series – User's Manual
Parity Setting
7.10.5
/MEDIA/UART/<port_no>.Parity
RS-232 Operation Mode
7.10.6
/MEDIA/UART/<port_no>.Rs232Mode
Sending Message via the Communication Ports
Sending Message via TCP Port
7.11.1
/MEDIA/ETHERNET.tcpText|tcpMessage|tcpBinary
Sending Message via UDP Port
7.11.2
/MEDIA/ETHERNET.udpText|udpMessage|udpBinary
Sending Message via an RS-232 Port
7.11.3
/MEDIA/UART/<port_no>.sendText|sendMessage|sendBinaryMessage
Infrared Port Configuration
Enable Command Injection Mode
7.12.1
/MEDIA/IR/<port_no>.CommandInjectionEnable
Change Command Injection Port Number
7.12.2
/MEDIA/IR/<port_no>.CommandInjectionPort
Enable/Disable Output Signal Modulation
7.12.3
/MEDIA/IR/<port_no>.EnableModulation
Operation / Path
Operation / Path
Operation / Path
