8. Firmware Upgrade

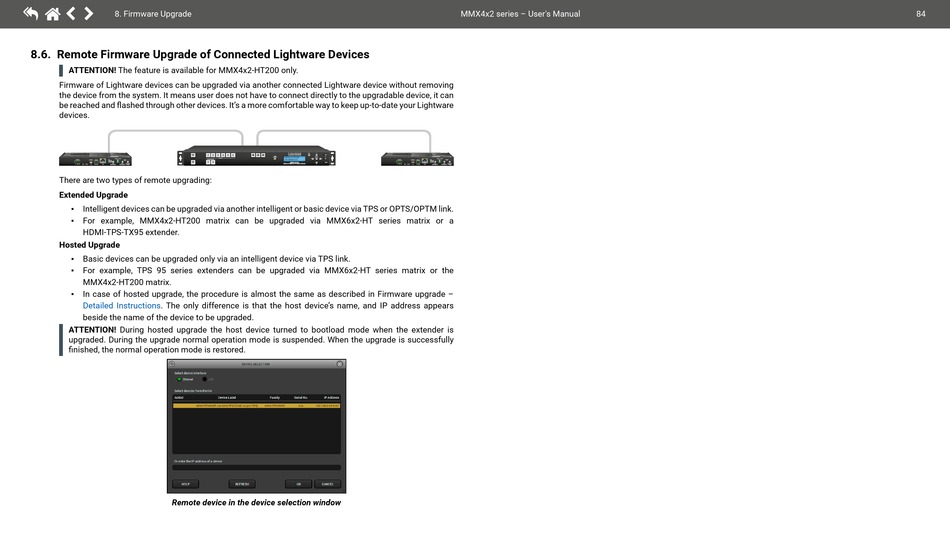

8.6. Remote Firmware Upgrade of Connected Lightware Devices
ATTENTION! The feature is available for MMX4x2-HT200 only.
Firmware of Lightware devices can be upgraded via another connected Lightware device without removing
the device from the system. It means user does not have to connect directly to the upgradable device, it can
be reached and flashed through other devices. It's a more comfortable way to keep up-to-date your Lightware
devices.
C C O O N N T T R R O O L L
L L O O C C K K
OUT OUT
AUDIO IN CONTROL RS-232 LIVE IN 1 RESET
AUDIO OUT IN 2
OUT 1 AUTO OUT 2 AUTO IN 3 IN 4 O O U U T T P P U U T T
L L O O C C K K
L R IR IN IR OUT TX RX LAN OUT 1 OUT 2 SET AUDIO
VIDEO SELECT VIDEO SELECT CONFIG
There are two types of remote upgrading:
Extended Upgrade
▪ Intelligent devices can be upgraded via another intelligent or basic device via TPS or OPTS/OPTM link.
For example, MMX4x2-HT200 matrix can be upgraded via MMX6x2-HT series matrix or a
▪
HDMI-TPS-TX95 extender.
Hosted Upgrade
Basic devices can be upgraded only via an intelligent device via TPS link.
▪
For example, TPS 95 series extenders can be upgraded via MMX6x2-HT series matrix or the
▪
MMX4x2-HT200 matrix.
▪ In case of hosted upgrade, the procedure is almost the same as described in Firmware upgrade –
Detailed Instructions. The only difference is that the host device's name, and IP address appears
beside the name of the device to be upgraded.
ATTENTION! During hosted upgrade the host device turned to bootload mode when the extender is
upgraded. During the upgrade normal operation mode is suspended. When the upgrade is successfully
finished, the normal operation mode is restored.
Remote device in the device selection window
ESC
1 2 3 4 5 6
T T A A K K E E T T A A K K E E L L O O A A D D L L O O A A D D S S A A V V E E S S A A V V E E LIVE
A A U U T T O O A A U U T T O O P P R R E E S S E E T T P P R R E E S S E E T T P P R R E E S S E E T T P P R R E E S S E E T T USB
CONTROL MMX6x2-HT220 ENTER 5V
SOURCES
DESTINATIONS SN:00003326 48V
1 2
MMX6x2-HT220 RESET
Multiport HDMI and TPS Matrix Switcher
MMX4x2 series – User's Manual
