5. Software Control - Lightware Device Controller

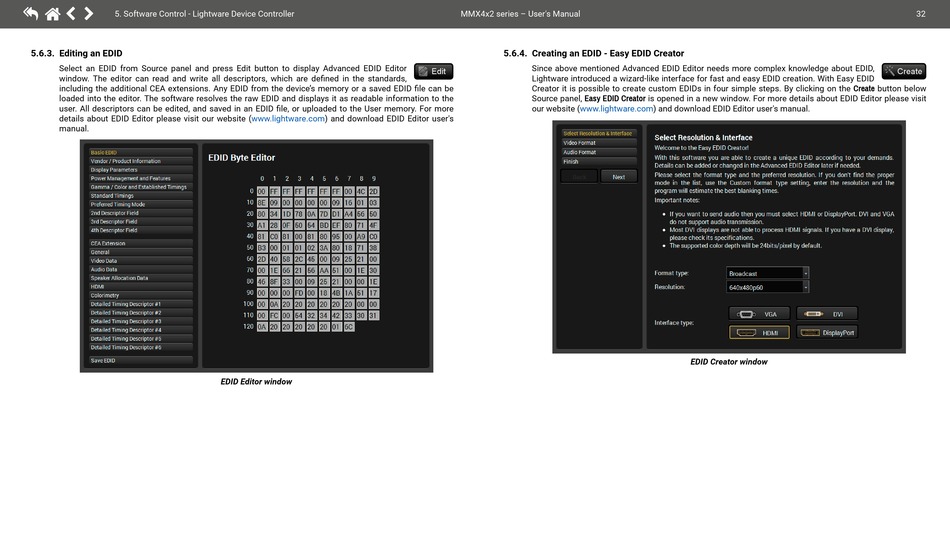

5.6.3. Editing an EDID
Select an EDID from Source panel and press Edit button to display Advanced EDID Editor
window. The editor can read and write all descriptors, which are defined in the standards,
including the additional CEA extensions. Any EDID from the device's memory or a saved EDID file can be
loaded into the editor. The software resolves the raw EDID and displays it as readable information to the
user. All descriptors can be edited, and saved in an EDID file, or uploaded to the User memory. For more
details about EDID Editor please visit our website (www.lightware.com) and download EDID Editor user's
manual.
EDID Editor window
MMX4x2 series – User's Manual
A
5.6.4. Creating an EDID - Easy EDID Creator
Since above mentioned Advanced EDID Editor needs more complex knowledge about EDID,
Edit
Lightware introduced a wizard-like interface for fast and easy EDID creation. With Easy EDID
Creator it is possible to create custom EDIDs in four simple steps. By clicking on the Create button below
Source panel, Easy EDID Creator is opened in a new window. For more details about EDID Editor please visit
our website (www.lightware.com) and download EDID Editor user's manual.
EDID Creator window
32
A
Create
