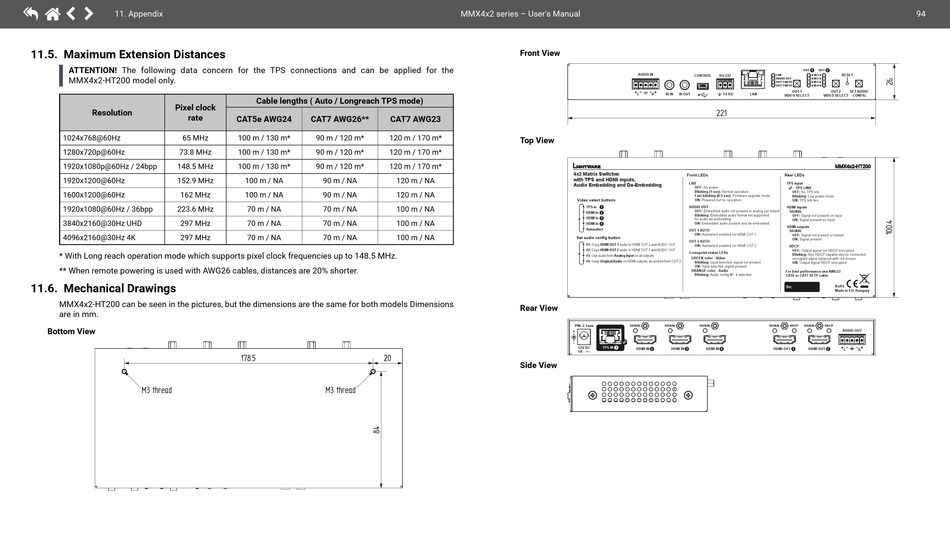

11.5. Maximum Extension Distances
ATTENTION! The following data concern for the TPS connections and can be applied for the
MMX4x2-HT200 model only.
Pixel clock
Resolution
rate
1024x768@60Hz 65 MHz
1280x720p@60Hz 73.8 MHz
1920x1080p@60Hz / 24bpp 148.5 MHz
1920x1200@60Hz 152.9 MHz
1600x1200@60Hz 162 MHz
1920x1080@60Hz / 36bpp 223.6 MHz
3840x2160@30Hz UHD 297 MHz
4096x2160@30Hz 4K 297 MHz
* With Long reach operation mode which supports pixel clock frequencies up to 148.5 MHz.
** When remote powering is used with AWG26 cables, distances are 20% shorter.
11.6. Mechanical Drawings
MMX4x2-HT200 can be seen in the pictures, but the dimensions are the same for both models Dimensions
are in mm.
Bottom View
M3 thread
Cable lengths ( Auto / Longreach TPS mode)
CAT5e AWG24 CAT7 AWG26** CAT7 AWG23
100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
100 m / NA 90 m / NA 120 m / NA
100 m / NA 90 m / NA 120 m / NA
70 m / NA 70 m / NA 100 m / NA
70 m / NA 70 m / NA 100 m / NA
70 m / NA 70 m / NA 100 m / NA
178.5 20
M3 thread
MMX4x2 series – User's Manual
Front View
AUDIO IN
L
Top View
4x2 Matrix Switcher
with TPS and HDMI inputs,
Audio Embedding and De-Embedding
Video select buttons
TPS in 1
HDMI in 2
HDMI in 3
HDMI in 4
Autoselect
Set audio config button
#1: Copy HDMI OUT 1 audio to HDMI OUT 2 and AUDIO OUT
#2: Copy HDMI OUT 2 audio to HDMI OUT 1 and AUDIO OUT
#3: Use audio from Analog Input on all outputs
#4: Keep Original Audio on HDMI outputs, de-embed from OUT 2
Rear View
PIN: 2.1mm SIGNAL
12V DC TPS IN 1
HDMI IN
1A
Side View
1 2
OUT OUT
CONTROL RS-232 LIVE IN 1
AUDIO OUT IN 2
OUT 1 AUTO IN 3
OUT 2 AUTO IN 4
OUT 1 OUT 2
R IR IN IR OUT TX RX LAN
VIDEO SELECT VIDEO SELECT
221
Front LEDs Rear LEDs
LIVE TPS input
OFF: No power - TPS LINK
Blinking (1 sec): Normal operation OFF: No TPS link
Fast blinking (0.5 sec): Firmware upgrade mode
Blinking: Low power mode
ON: Powered but no operation
ON: TPS link live
AUDIO OUT
HDMI inputs
OFF: Embedded audio not present or analog out muted
SIGNAL
Blinking: Embedded audio format not supported OFF: Signal not present on input
for audio de-embedding ON: Signal present on input
ON: Embedded audio present and de-embedded
HDMI outputs
OUT 1 AUTO SIGNAL
ON: Autoselect enabled on HDMI OUT 1 OFF: Signal not present or muted
ON: Signal present
OUT 2 AUTO
ON: Autoselect enabled on HDMI OUT 2
HDCP
OFF: Output signal not HDCP encrypted
Crosspoint status LEDs
Blinking: Non HDCP capable device connected,
GREEN color - Video
encrypted signal replaced with red screen
Blinking: Input selected, signal not present ON: Output signal HDCP encrypted
ON: Input selected, signal present
ORANGE color - Audio
For best performance use AWG23
Blinking: Audio config #1..4 selected
CAT6 or CAT7 SFTP cable
Sn:
SIGNAL SIGNAL SIGNAL HDCP SIGNAL HDCP
2 HDMI IN 3 HDMI IN 4 HDMI OUT 1 HDMI OUT 2
94
RESET
SET AUDIO
CONFIG
MMX4x2-HT200
RoHS
Made in EU, Hungary
AUDIO OUT
L R
