3. Product Overview

3
P roduct Overview
The following sections are about the physical structure of the device, input/
output ports and connectors; software and hardware capabilities:

Front View

Î
Rear View
Î
Electrical Connections
Î
Compact Size Matrix Concept
Î
Port Diagram
Î
TPS Interface
Î
Audio Interface
Î
Video Interface
Î
The Autoselect Feature
Î
Controlling Features
Î
Further Built-in Features
Î
MMX4x2 series – User's Manual

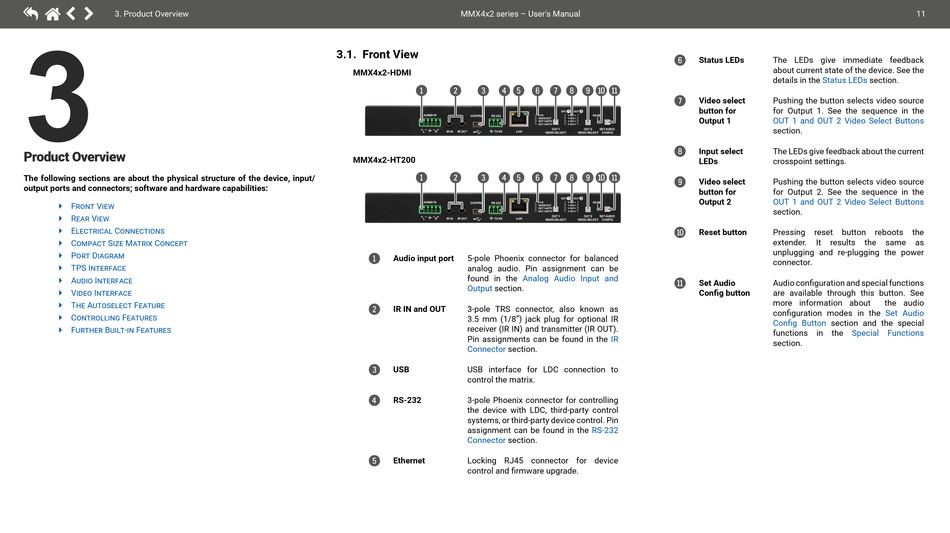

3.1. Front View
MMX4x2-HDMI
1 2 3 5 6 7 8 9
4
MMX4x2-HT200
1 2 3 5 6 7 8 9
4
1 Audio input port 5-pole Phoenix connector for balanced
analog audio. Pin assignment can be
found in the
Output section.
2 IR IN and OUT 3-pole TRS connector, also known as
3.5 mm (1/8") jack plug for optional IR
receiver (IR IN) and transmitter (IR OUT).
Pin assignments can be found in the
Connector section.
USB USB interface for LDC connection to
3
control the matrix.
4 RS-232 3-pole Phoenix connector for controlling
the device with LDC, third-party control
systems, or third-party device control. Pin
assignment can be found in the
Connector section.
Ethernet Locking RJ45 connector for device
5
control and firmware upgrade.
6 Status LEDs
qw
Video select
7
button for
Output 1
8 Input select
LEDs
qw
Video select
9
button for
Output 2
q Reset button
Analog Audio Input and
w Set Audio
Config button
IR
RS-232
11
The LEDs give immediate feedback
about current state of the device. See the
details in the Status LEDs section.
Pushing the button selects video source
for Output 1. See the sequence in the
OUT 1 and OUT 2 Video Select Buttons
section.
The LEDs give feedback about the current
crosspoint settings.
Pushing the button selects video source
for Output 2. See the sequence in the
OUT 1 and OUT 2 Video Select Buttons
section.
Pressing reset button reboots the
extender. It results the same as
unplugging and re-plugging the power
connector.
Audio configuration and special functions
are available through this button. See
more information about the audio
configuration modes in the Set Audio
Config Button section and the special
functions in the Special Functions
section.
