7. LW3 Programmers' Reference

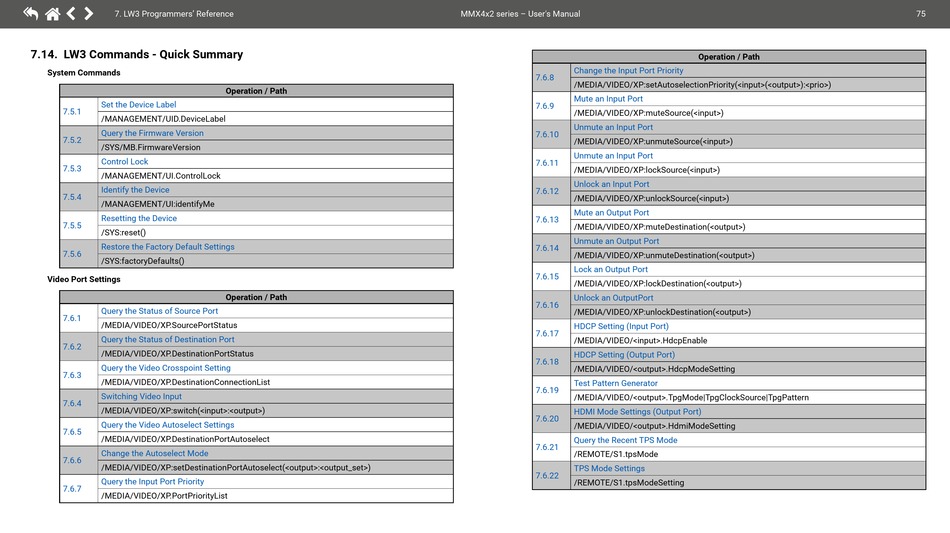

7.14. LW3 Commands - Quick Summary
System Commands
Set the Device Label
7.5.1
/MANAGEMENT/UID.DeviceLabel
Query the Firmware Version
7.5.2
/SYS/MB.FirmwareVersion
Control Lock
7.5.3
/MANAGEMENT/UI.ControlLock
Identify the Device
7.5.4
/MANAGEMENT/UI:identifyMe
Resetting the Device
7.5.5
/SYS:reset()
Restore the Factory Default Settings
7.5.6
/SYS:factoryDefaults()
Video Port Settings
Query the Status of Source Port
7.6.1
/MEDIA/VIDEO/XP.SourcePortStatus
Query the Status of Destination Port
7.6.2
/MEDIA/VIDEO/XP.DestinationPortStatus
Query the Video Crosspoint Setting
7.6.3
/MEDIA/VIDEO/XP.DestinationConnectionList
Switching Video Input
7.6.4
/MEDIA/VIDEO/XP:switch(<input>:<output>)
Query the Video Autoselect Settings
7.6.5
/MEDIA/VIDEO/XP.DestinationPortAutoselect
Change the Autoselect Mode
7.6.6
/MEDIA/VIDEO/XP:setDestinationPortAutoselect(<output>:<output_set>)
Query the Input Port Priority
7.6.7
/MEDIA/VIDEO/XP.PortPriorityList
Operation / Path
Operation / Path
MMX4x2 series – User's Manual
Change the Input Port Priority
7.6.8
/MEDIA/VIDEO/XP:setAutoselectionPriority(<input>(<output>):<prio>)
Mute an Input Port
7.6.9
/MEDIA/VIDEO/XP:muteSource(<input>)
Unmute an Input Port
7.6.10
/MEDIA/VIDEO/XP:unmuteSource(<input>)
Unmute an Input Port
7.6.11
/MEDIA/VIDEO/XP:lockSource(<input>)
Unlock an Input Port
7.6.12
/MEDIA/VIDEO/XP:unlockSource(<input>)
Mute an Output Port
7.6.13
/MEDIA/VIDEO/XP:muteDestination(<output>)
Unmute an Output Port
7.6.14
/MEDIA/VIDEO/XP:unmuteDestination(<output>)
Lock an Output Port
7.6.15
/MEDIA/VIDEO/XP:lockDestination(<output>)
Unlock an OutputPort
7.6.16
/MEDIA/VIDEO/XP:unlockDestination(<output>)
HDCP Setting (Input Port)
7.6.17
/MEDIA/VIDEO/<input>.HdcpEnable
HDCP Setting (Output Port)
7.6.18
/MEDIA/VIDEO/<output>.HdcpModeSetting
Test Pattern Generator
7.6.19
/MEDIA/VIDEO/<output>.TpgMode|TpgClockSource|TpgPattern
HDMI Mode Settings (Output Port)
7.6.20
/MEDIA/VIDEO/<output>.HdmiModeSetting
Query the Recent TPS Mode
7.6.21
/REMOTE/S1.tpsMode
TPS Mode Settings
7.6.22
/REMOTE/S1.tpsModeSetting
Operation / Path
