11. Appendix

11
Appendix
Tables, drawings, guides, and technical details as follows:

Specification

Î
Factory Default Settings
Î
Content of Backup File
Î
Input/Output Port Numbering
Î
Maximum Extension Distances
Î
Mechanical Drawings
Î
Audio Cable Wiring Guide
Î
Factory EDID List
Î
LW3 Command Changes in Firmware v1.2.0
Î
Further Information
Î
MMX4x2 series – User's Manual

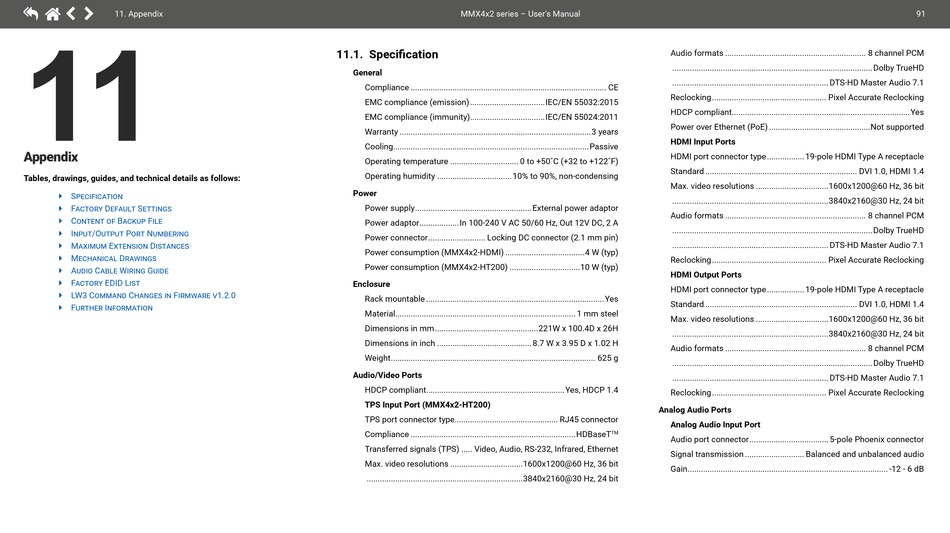

11.1. Specification
General
Compliance ......................................................................................... CE
EMC compliance (emission) ..................................IEC/EN 55032:2015
EMC compliance (immunity) ..................................IEC/EN 55024:2011
Warranty .......................................................................................3 years
Cooling.........................................................................................Passive
Operating temperature ............................... 0 to +50˚C (+32 to +122˚F)
Operating humidity ..................................10% to 90%, non-condensing
Power
Power supply .....................................................External power adaptor
Power adaptor ..................In 100-240 V AC 50/60 Hz, Out 12V DC, 2 A
Power connector .......................... Locking DC connector (2.1 mm pin)
Power consumption (MMX4x2-HDMI) ....................................4 W (typ)
Power consumption (MMX4x2-HT200) ................................10 W (typ)
Enclosure
Rack mountable .................................................................................Yes
Material .................................................................................. 1 mm steel
Dimensions in mm ...............................................221W x 100.4D x 26H
Dimensions in inch ........................................... 8.7 W x 3.95 D x 1.02 H
Weight ............................................................................................. 625 g
Audio/Video Ports
HDCP compliant...............................................................Yes, HDCP 1.4
TPS Input Port (MMX4x2-HT200)
TPS port connector type............................................... RJ45 connector
Compliance ...........................................................................HDBaseT
Transferred signals (TPS) ..... Video, Audio, RS-232, Infrared, Ethernet
Max. video resolutions .................................1600x1200@60 Hz, 36 bit
.......................................................................3840x2160@30 Hz, 24 bit
Audio formats ................................................................ 8 channel PCM
........................................................................................... Dolby TrueHD
....................................................................... DTS-HD Master Audio 7.1
Reclocking .................................................... Pixel Accurate Reclocking
HDCP compliant.................................................................................Yes
Power over Ethernet (PoE) ..............................................Not supported
HDMI Input Ports
HDMI port connector type ................. 19-pole HDMI Type A receptacle
Standard ..................................................................... DVI 1.0, HDMI 1.4
Max. video resolutions .................................1600x1200@60 Hz, 36 bit
.......................................................................3840x2160@30 Hz, 24 bit
Audio formats ................................................................ 8 channel PCM
........................................................................................... Dolby TrueHD
....................................................................... DTS-HD Master Audio 7.1
Reclocking .................................................... Pixel Accurate Reclocking
HDMI Output Ports
HDMI port connector type ................. 19-pole HDMI Type A receptacle
Standard ..................................................................... DVI 1.0, HDMI 1.4
Max. video resolutions .................................1600x1200@60 Hz, 36 bit
.......................................................................3840x2160@30 Hz, 24 bit
Audio formats ................................................................ 8 channel PCM
........................................................................................... Dolby TrueHD
....................................................................... DTS-HD Master Audio 7.1
Reclocking .................................................... Pixel Accurate Reclocking
Analog Audio Ports
Analog Audio Input Port
TM
Audio port connector .................................... 5-pole Phoenix connector
Signal transmission ........................... Balanced and unbalanced audio
Gain ........................................................................................... -12 - 6 dB
