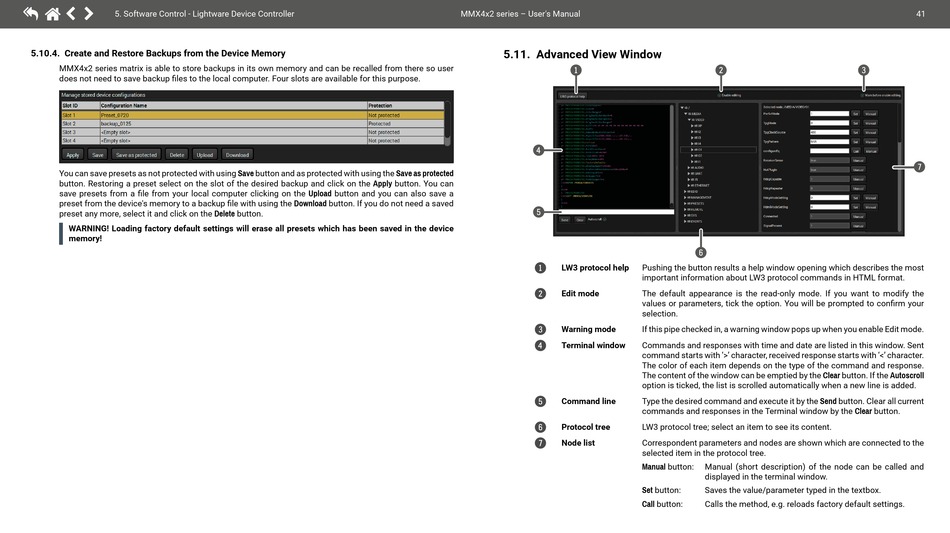

5.10.4. Create and Restore Backups from the Device Memory
MMX4x2 series matrix is able to store backups in its own memory and can be recalled from there so user
does not need to save backup files to the local computer. Four slots are available for this purpose.
You can save presets as not protected with using Save button and as protected with using the Save as protected
button. Restoring a preset select on the slot of the desired backup and click on the Apply button. You can
save presets from a file from your local computer clicking on the Upload button and you can also save a
preset from the device's memory to a backup file with using the Download button. If you do not need a saved
preset any more, select it and click on the Delete button.
WARNING! Loading factory default settings will erase all presets which has been saved in the device
memory!
MMX4x2 series – User's Manual
5.11. Advanced View Window
1
4
5
LW3 protocol help
1
Edit mode
2
3 Warning mode
4 Terminal window
5 Command line
6 Protocol tree
7 Node list
2
6
Pushing the button results a help window opening which describes the most
important information about LW3 protocol commands in HTML format.
The default appearance is the read-only mode. If you want to modify the
values or parameters, tick the option. You will be prompted to confirm your
selection.
If this pipe checked in, a warning window pops up when you enable Edit mode.
Commands and responses with time and date are listed in this window. Sent
command starts with '>' character, received response starts with '<' character.
The color of each item depends on the type of the command and response.
The content of the window can be emptied by the Clear button. If the Autoscroll
option is ticked, the list is scrolled automatically when a new line is added.
Type the desired command and execute it by the Send button. Clear all current
commands and responses in the Terminal window by the Clear button.
LW3 protocol tree; select an item to see its content.
Correspondent parameters and nodes are shown which are connected to the
selected item in the protocol tree.
Manual button: Manual (short description) of the node can be called and
displayed in the terminal window.
Set button: Saves the value/parameter typed in the textbox.
Call button: Calls the method, e.g. reloads factory default settings.
