5. Software Control - Lightware Device Controller

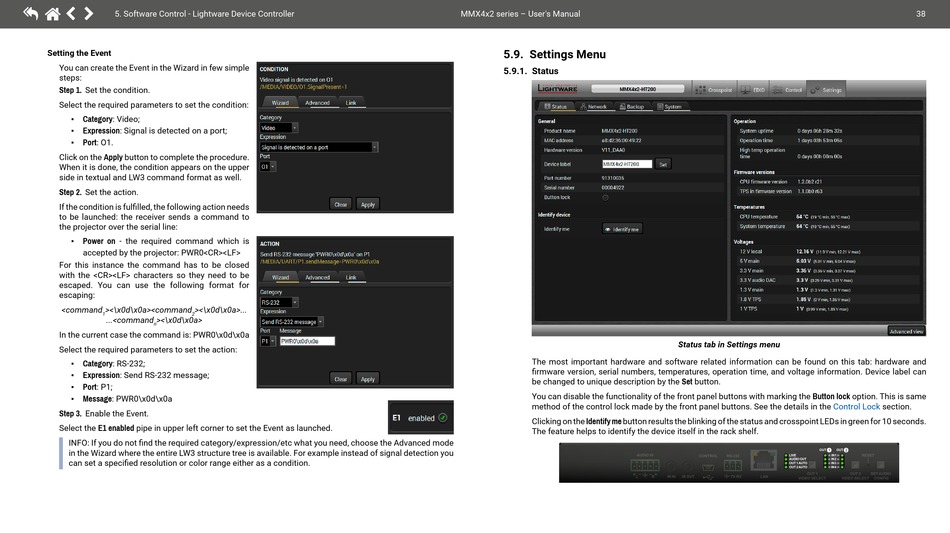

Setting the Event
You can create the Event in the Wizard in few simple
steps:
Step 1. Set the condition.
Select the required parameters to set the condition:
▪ Category: Video;
Expression: Signal is detected on a port;
▪
Port: O1.
▪
Click on the Apply button to complete the procedure.
When it is done, the condition appears on the upper
side in textual and LW3 command format as well.
Step 2. Set the action.
If the condition is fulfilled, the following action needs
to be launched: the receiver sends a command to
the projector over the serial line:
▪ Power on - the required command which is
accepted by the projector: PWR0<CR><LF>
For this instance the command has to be closed
with the <CR><LF> characters so they need to be
escaped. You can use the following format for
escaping:
<command ><\x0d\x0a><command ><\x0d\x0a>...
1 2
...<command ><\x0d\x0a>
n
In the current case the command is: PWR0\x0d\x0a
Select the required parameters to set the action:
Category: RS-232;
▪
▪ Expression: Send RS-232 message;
▪ Port: P1;
Message: PWR0\x0d\x0a
▪
Step 3. Enable the Event.
Select the E1 enabled pipe in upper left corner to set the Event as launched.
INFO: If you do not find the required category/expression/etc what you need, choose the Advanced mode
in the Wizard where the entire LW3 structure tree is available. For example instead of signal detection you
can set a specified resolution or color range either as a condition.
MMX4x2 series – User's Manual
5.9. Settings Menu
5.9.1. Status
The most important hardware and software related information can be found on this tab: hardware and
firmware version, serial numbers, temperatures, operation time, and voltage information. Device label can
be changed to unique description by the Set button.
You can disable the functionality of the front panel buttons with marking the Button lock option. This is same
method of the control lock made by the front panel buttons. See the details in the
Clicking on the Identify me button results the blinking of the status and crosspoint LEDs in green for 10 seconds.
The feature helps to identify the device itself in the rack shelf.
AUDIO IN
L
Status tab in Settings menu
OUT
CONTROL RS-232 LIVE
AUDIO OUT
OUT 1 AUTO
OUT 2 AUTO
OUT 1
R IR IN IR OUT TX RX LAN
VIDEO SELECT
38
Control Lock section.
