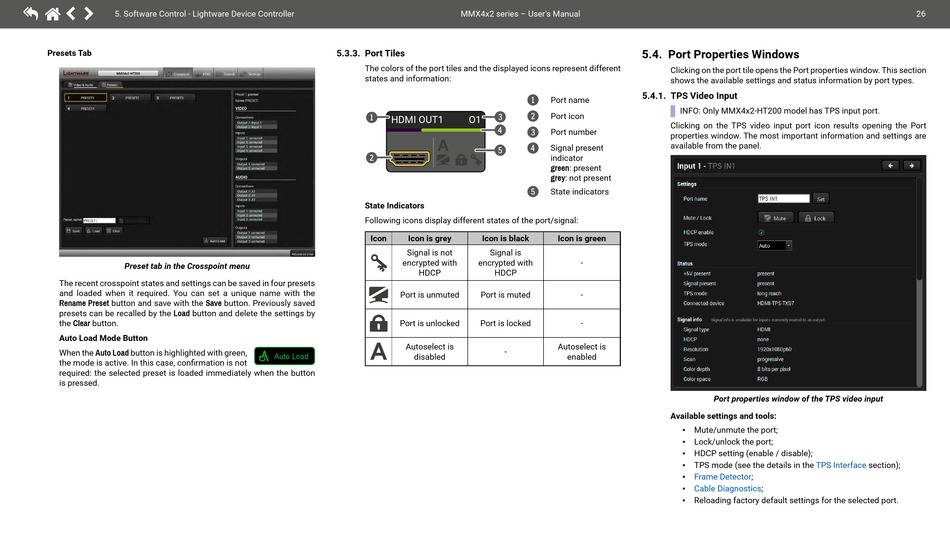

Presets Tab
Preset tab in the Crosspoint menu
The recent crosspoint states and settings can be saved in four presets
and loaded when it required. You can set a unique name with the
Rename Preset button and save with the Save button. Previously saved
presets can be recalled by the Load button and delete the settings by
the Clear button.
Auto Load Mode Button
When the Auto Load button is highlighted with green,
the mode is active. In this case, confirmation is not
required: the selected preset is loaded immediately when the button
is pressed.
5.3.3. Port Tiles
The colors of the port tiles and the displayed icons represent different
states and information:
1
HDMI OUT1
A
2
State Indicators
Following icons display different states of the port/signal:
Icon Icon is grey
A
Signal is not
encrypted with
HDCP
A
Port is unmuted
A
Port is unlocked
A
Autoselect is
Auto Load disabled
MMX4x2 series – User's Manual
1 Port name
2 Port icon
3
O1
4
3 Port number
4 Signal present
5
indicator
green: present
grey: not present
State indicators
5
Icon is black Icon is green
Signal is
encrypted with -
HDCP
Port is muted -
Port is locked -
Autoselect is
-
enabled
5.4. Port Properties Windows
Clicking on the port tile opens the Port properties window. This section
shows the available settings and status information by port types.
5.4.1. TPS Video Input
INFO: Only MMX4x2-HT200 model has TPS input port.
Clicking on the TPS video input port icon results opening the Port
properties window. The most important information and settings are
available from the panel.
Port properties window of the TPS video input
Available settings and tools:
▪ Mute/unmute the port;
Lock/unlock the port;
▪
▪ HDCP setting (enable / disable);
▪ TPS mode (see the details in the TPS Interface
Frame Detector;
▪
Cable Diagnostics;
▪
▪ Reloading factory default settings for the selected port.
26
section);
