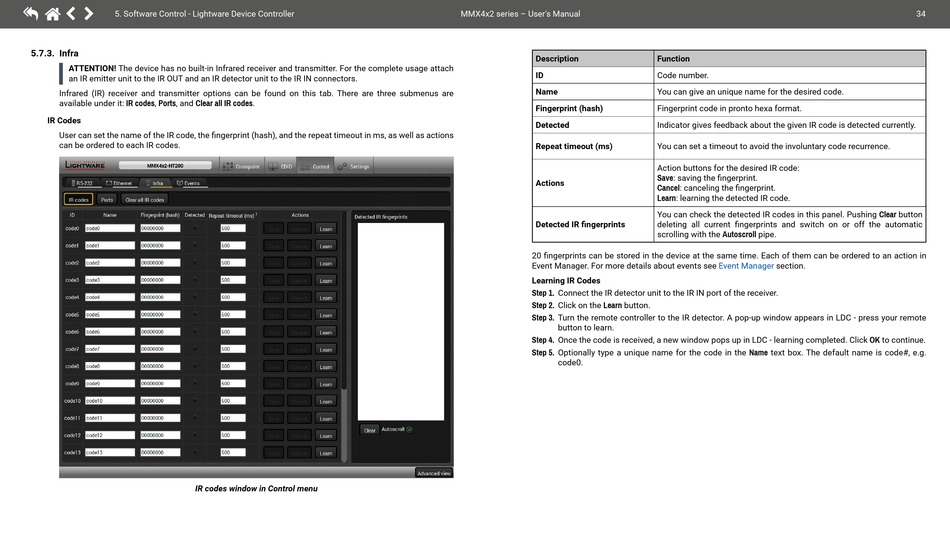

Infra - Lightware MMX4x2-HT200 User Manual


  
5. Software Control - Lightware Device Controller
5.7.3. Infra
ATTENTION! The device has no built-in Infrared receiver and transmitter. For the complete usage attach
an IR emitter unit to the IR OUT and an IR detector unit to the IR IN connectors.
Infrared (IR) receiver and transmitter options can be found on this tab. There are three submenus are
available under it: IR codes, Ports, and Clear all IR codes.
IR Codes
User can set the name of the IR code, the fingerprint (hash), and the repeat timeout in ms, as well as actions
can be ordered to each IR codes.
IR codes window in Control menu
MMX4x2 series – User's Manual
Description
ID
Name
Fingerprint (hash)
Detected
Repeat timeout (ms)
Actions
Detected IR fingerprints
20 fingerprints can be stored in the device at the same time. Each of them can be ordered to an action in
Event Manager. For more details about events see
Learning IR Codes
Step 1. Connect the IR detector unit to the IR IN port of the receiver.
Step 2. Click on the Learn button.
Step 3. Turn the remote controller to the IR detector. A pop-up window appears in LDC - press your remote
button to learn.
Step 4. Once the code is received, a new window pops up in LDC - learning completed. Click OK to continue.
Step 5. Optionally type a unique name for the code in the Name text box. The default name is code#, e.g.
code0.
Function
Code number.
You can give an unique name for the desired code.
Fingerprint code in pronto hexa format.
Indicator gives feedback about the given IR code is detected currently.
You can set a timeout to avoid the involuntary code recurrence.
Action buttons for the desired IR code:
Save: saving the fingerprint.
Cancel: canceling the fingerprint.
Learn: learning the detected IR code.
You can check the detected IR codes in this panel. Pushing Clear button
deleting all current fingerprints and switch on or off the automatic
scrolling with the Autoscroll pipe.
Event Manager section.
