7. LW3 Programmers' Reference

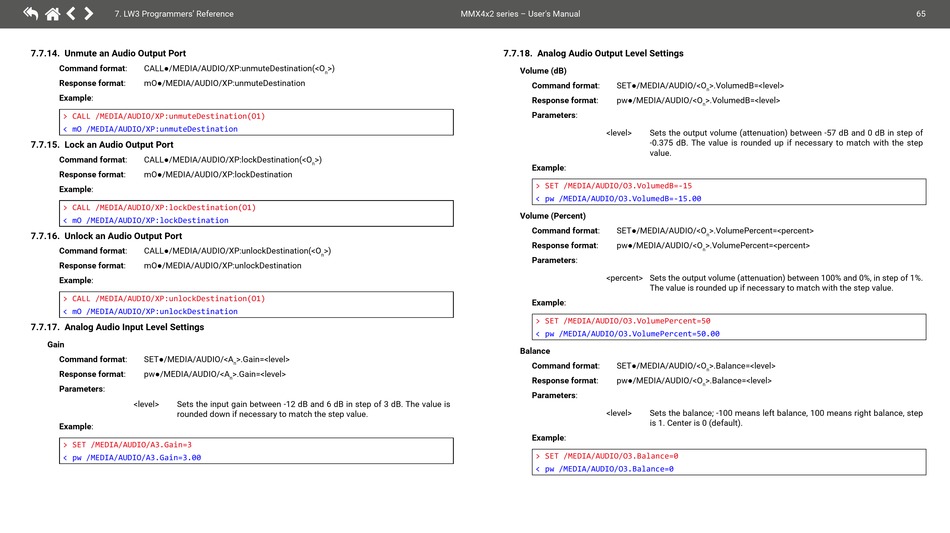

7.7.14. Unmute an Audio Output Port
Command format: CALL●/MEDIA/AUDIO/XP:unmuteDestination(<O
Response format: mO●/MEDIA/AUDIO/XP:unmuteDestination
Example:
˃ CALL /MEDIA/AUDIO/XP:unmuteDestination(O1)
˂ mO /MEDIA/AUDIO/XP:unmuteDestination
7.7.15. Lock an Audio Output Port
Command format: CALL●/MEDIA/AUDIO/XP:lockDestination(<O
Response format: mO●/MEDIA/AUDIO/XP:lockDestination
Example:
˃ CALL /MEDIA/AUDIO/XP:lockDestination(O1)
˂ mO /MEDIA/AUDIO/XP:lockDestination
7.7.16. Unlock an Audio Output Port
Command format: CALL●/MEDIA/AUDIO/XP:unlockDestination(<O
Response format: mO●/MEDIA/AUDIO/XP:unlockDestination
Example:
˃ CALL /MEDIA/AUDIO/XP:unlockDestination(O1)
˂ mO /MEDIA/AUDIO/XP:unlockDestination
7.7.17. Analog Audio Input Level Settings
Gain
Command format: SET●/MEDIA/AUDIO/<A
Response format: pw●/MEDIA/AUDIO/<A
Parameters:
<level> Sets the input gain between -12 dB and 6 dB in step of 3 dB. The value is
rounded down if necessary to match the step value.
Example:
˃ SET /MEDIA/AUDIO/A3.Gain=3
˂ pw /MEDIA/AUDIO/A3.Gain=3.00
>)
n
>)
n
>)
n
>.Gain=<level>
n
>.Gain=<level>
n
MMX4x2 series – User's Manual
7.7.18. Analog Audio Output Level Settings
Volume (dB)
Command format: SET●/MEDIA/AUDIO/<O
Response format: pw●/MEDIA/AUDIO/<O
Parameters:
<level>
Example:
˃ SET /MEDIA/AUDIO/O3.VolumedB=-15
˂ pw /MEDIA/AUDIO/O3.VolumedB=-15.00
Volume (Percent)
Command format: SET●/MEDIA/AUDIO/<O
Response format: pw●/MEDIA/AUDIO/<O
Parameters:
<percent> Sets the output volume (attenuation) between 100% and 0%, in step of 1%.
Example:
˃ SET /MEDIA/AUDIO/O3.VolumePercent=50
˂ pw /MEDIA/AUDIO/O3.VolumePercent=50.00
Balance
Command format: SET●/MEDIA/AUDIO/<O
Response format: pw●/MEDIA/AUDIO/<O
Parameters:
<level>
Example:
˃ SET /MEDIA/AUDIO/O3.Balance=0
˂ pw /MEDIA/AUDIO/O3.Balance=0
>.VolumedB=<level>
n
>.VolumedB=<level>
n
Sets the output volume (attenuation) between -57 dB and 0 dB in step of
-0.375 dB. The value is rounded up if necessary to match with the step
value.
>.VolumePercent=<percent>
n
>.VolumePercent=<percent>
n
The value is rounded up if necessary to match with the step value.
>.Balance=<level>
n
>.Balance=<level>
n
Sets the balance; -100 means left balance, 100 means right balance, step
is 1. Center is 0 (default).
65
