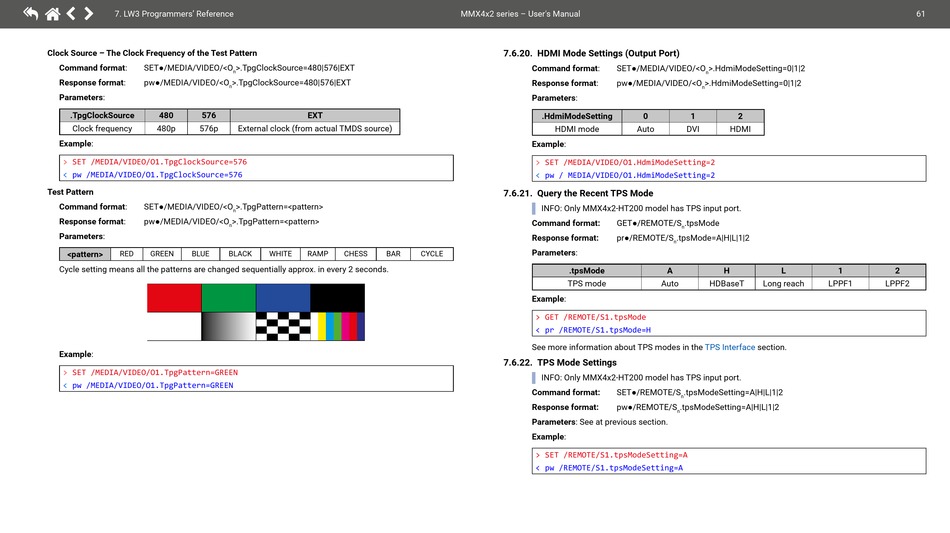

7. LW3 Programmers' Reference
Clock Source – The Clock Frequency of the Test Pattern
Command format: SET●/MEDIA/VIDEO/<O
Response format: pw●/MEDIA/VIDEO/<O
Parameters:
.TpgClockSource 480 576
Clock frequency 480p 576p
Example:
˃ SET /MEDIA/VIDEO/O1.TpgClockSource=576
˂ pw /MEDIA/VIDEO/O1.TpgClockSource=576
Test Pattern
Command format: SET●/MEDIA/VIDEO/<O
Response format: pw●/MEDIA/VIDEO/<O
Parameters:
<pattern> RED GREEN BLUE
Cycle setting means all the patterns are changed sequentially approx. in every 2 seconds.
Example:
˃ SET /MEDIA/VIDEO/O1.TpgPattern=GREEN
˂ pw /MEDIA/VIDEO/O1.TpgPattern=GREEN
>.TpgClockSource=480|576|EXT
n
>.TpgClockSource=480|576|EXT
n
EXT
External clock (from actual TMDS source)
>.TpgPattern=<pattern>
n
>.TpgPattern=<pattern>
n
BLACK WHITE RAMP CHESS BAR
MMX4x2 series – User's Manual
7.6.20. HDMI Mode Settings (Output Port)
Command format:
Response format:
Parameters:
.HdmiModeSetting
HDMI mode
Example:
˃ SET /MEDIA/VIDEO/O1.HdmiModeSetting=2
˂ pw / MEDIA/VIDEO/O1.HdmiModeSetting=2
7.6.21. Query the Recent TPS Mode
INFO: Only MMX4x2-HT200 model has TPS input port.
Command format:
Response format:
Parameters:
CYCLE
.tpsMode
TPS mode
Example:
˃ GET /REMOTE/S1.tpsMode
˂ pr /REMOTE/S1.tpsMode=H
See more information about TPS modes in the
7.6.22. TPS Mode Settings
INFO: Only MMX4x2-HT200 model has TPS input port.
Command format:
Response format:
Parameters: See at previous section.
Example:
˃ SET /REMOTE/S1.tpsModeSetting=A
˂ pw /REMOTE/S1.tpsModeSetting=A
SET●/MEDIA/VIDEO/<O >.HdmiModeSetting=0|1|2
n
pw●/MEDIA/VIDEO/<O >.HdmiModeSetting=0|1|2
n
0 1 2
Auto DVI HDMI
GET●/REMOTE/S .tpsMode
n
pr●/REMOTE/S .tpsMode=A|H|L|1|2
n
A H L
Auto HDBaseT Long reach
TPS Interface section.
SET●/REMOTE/S .tpsModeSetting=A|H|L|1|2
n
pw●/REMOTE/S .tpsModeSetting=A|H|L|1|2
n
61
1 2
LPPF1 LPPF2
