2. Product Overview

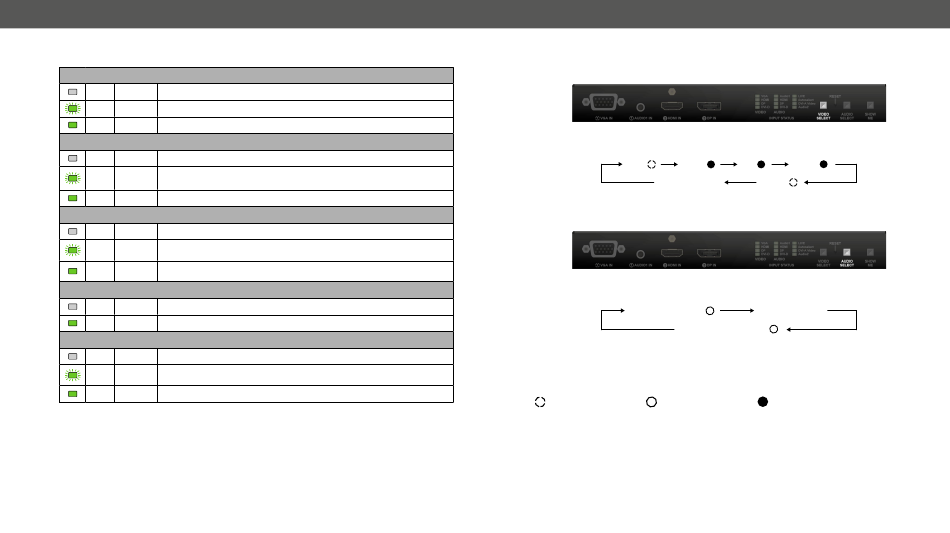

2.3. Status LEDs
Input status LEDs (VIDEO, AUDIO)
off The video source is not selected.
blinking The video source is selected but signal is not detected.
green
on The video source is selected and signal is detected.
green
LIVE LEDs
off The device is not powered.
Slow (1 sec): the device is powered and operational.
blinking
green
Fast (0.5 sec): the device is in firmware update mode.
on The device is powered but not operational.
green
AUTOSELECT LED
off Autoselect function is disabled.
Autoselect function is enabled, searching for signal (the video input LEDs are
blinking
green
also blinking).
Autoselect function is enabled, the active video signal is found (the selected video
on
green
input's LED is also ON).
SIGNAL LED
off Signal is not present on output.
on Signal is present on output.
green
HDCP LED
off Output signal is not HDCP-encrypted.
Non-HDCP capable device is connected, encrypted signal is replaced with red
blinking
green
screen.
on Output signal is HDCP-encrypted.
green
UMX-HDMI-140 series– User's Manual
2.4. Front Panel Operation - AV Functions
2.4.1. Video Select Button
You can select the video input source for the output by pushing the Video Select button. The sequence is the
following:
You can find more details about Autoselect feature in the
2.4.2. Audio Select Button
You can select the audio input source for the output by pushing the Audio Select button. The sequence is the
following:
Embedded audio is received on the digital video input port (HDMI / DP / DVI-D) which is currently selected.
If analog video input signal (VGA / DVI-A) is selected which cannot contain embedded audio, this source is
skipped.
2.4.3. Port Legend
1
Applied firmware package: v1.3.0b5 | LDC software: v2.5.6b2
#switch #crosspoint
VGA HDMI
1 2
AUTOSELECT
Analog audio (Jack)
1
Analog audio (Phoenix)
Video only Audio only
1
16
DP DVI-D
3 4
DVI-A
5
The Autoselect Feature section.
Embedded audio
5
2 Video with embedded audio
