Ethernet Management
Save / Load
This section allows the user to save, then load (recall) up to 10 configuration sets. The status of
each slot is identified as either having a stored configuration set slot (Yes) or an empty slot (No).
•
To save a configuration set: After all configuration parameters have been adjusted to suit,
use the Save Location drop-down to select 0 through 9, then click [Submit] as needed to
store the configuration set in the designated slot.
•
To load (recall) a configuration set: Use the Load Location drop-down to select 0
through 9, then click [Submit] as needed to recall the selected configuration settings.
6.5.4.4 Status pages
The Status pages provide the user with status, event logging, and operational statistics windows.
Select the Status, Logs, Info, Firmware, ACM, IP Statistics, or BB Statistics tab to continue.
6.5.4.4.1

Status | Status

The read-only 'Status | Status' page (Figure 6-8), which updates automatically every 10
seconds, provides information pertaining to:
•
Alarms Status
•
Rx Parameters
•
ACM Status
•
CnC (Carrier-in-Carrier) information (including Fractional CnC Counters)
•
General Operating Status (Redundancy and Unit Temperature)

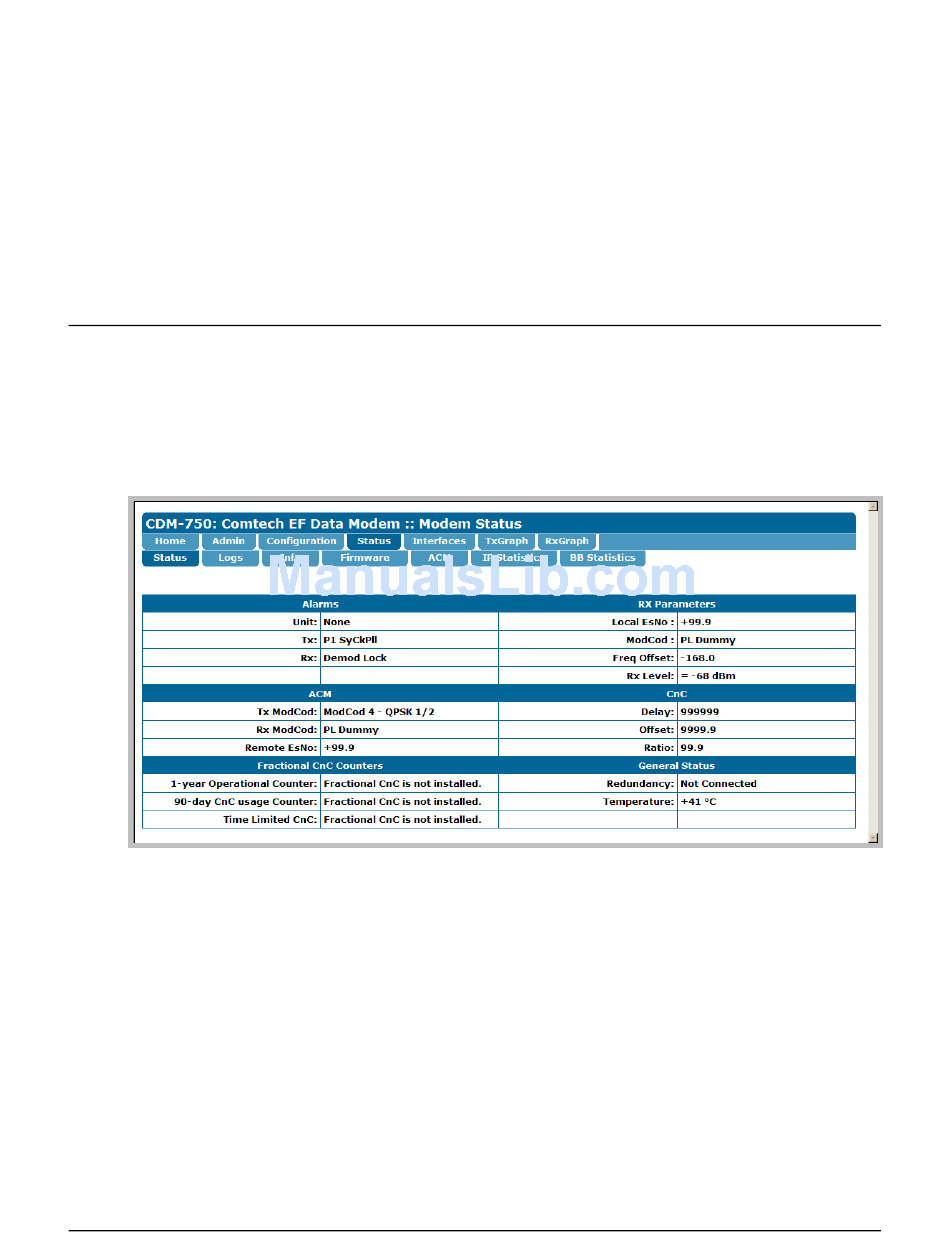

Figure 6-8. Status | Status page
