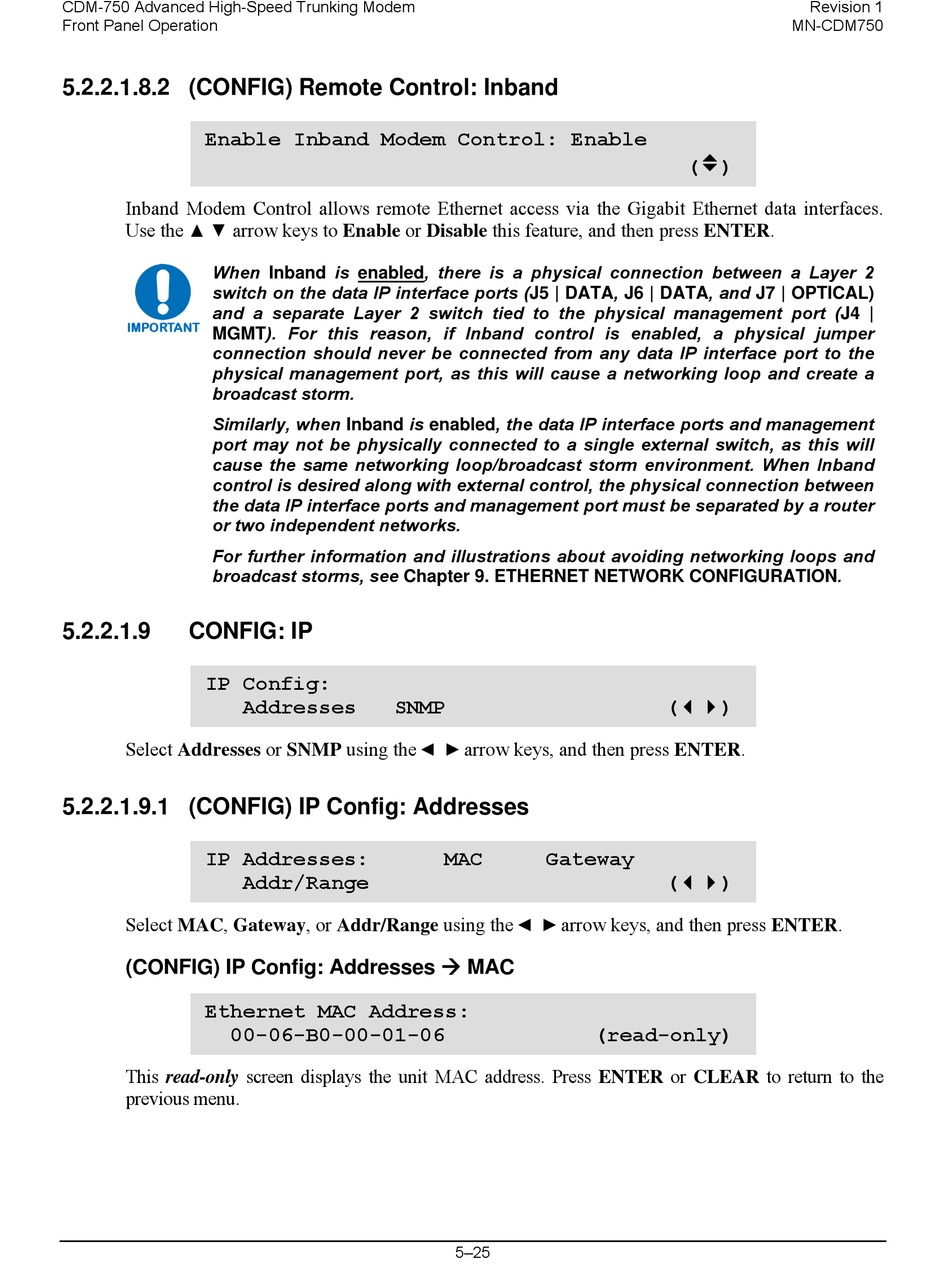

CDM-750 Advanced High-Speed Trunking Modem
Front Panel Operation

5.2.2.1.8.2 (CONFIG) Remote Control: Inband

Enable Inband Modem Control: Enable
Inband Modem Control allows remote Ethernet access via the Gigabit Ethernet data interfaces.
Use the arrow keys to Enable or Disable this feature, and then press ENTER.
▲ ▼
When Inband is enabled, there is a physical connection between a Layer 2
switch on the data IP interface ports (J5 | DATA, J6 | DATA, and J7 | OPTICAL)
and a separate Layer 2 switch tied to the physical management port (J4 |
IMPORTANT
MGMT). For this reason, if Inband control is enabled, a physical jumper
connection should never be connected from any data IP interface port to the
physical management port, as this will cause a networking loop and create a
broadcast storm.
Similarly, when Inband is enabled, the data IP interface ports and management
port may not be physically connected to a single external switch, as this will
cause the same networking loop/broadcast storm environment. When Inband
control is desired along with external control, the physical connection between
the data IP interface ports and management port must be separated by a router
or two independent networks.
For further information and illustrations about avoiding networking loops and
broadcast storms, see Chapter 9. ETHERNET NETWORK CONFIGURATION.
5.2.2.1.9

CONFIG: IP

IP Config:
Select Addresses or SNMP using the

5.2.2.1.9.1 (CONFIG) IP Config: Addresses

IP Addresses:
Select MAC, Gateway, or Addr/Range using the
(CONFIG) IP Config: Addresses
Ethernet MAC Address:
00-06-B0-00-01-06
This read-only screen displays the unit MAC address. Press ENTER or CLEAR to return to the
previous menu.
Addresses SNMP
Addr/Range
◄ ► arrow keys, and then press ENTER.
MAC Gateway
◄ ► arrow keys, and then press ENTER.
MAC
(read-only)
5–25
Revision 1
MN-CDM750
(v)
( )
( )
