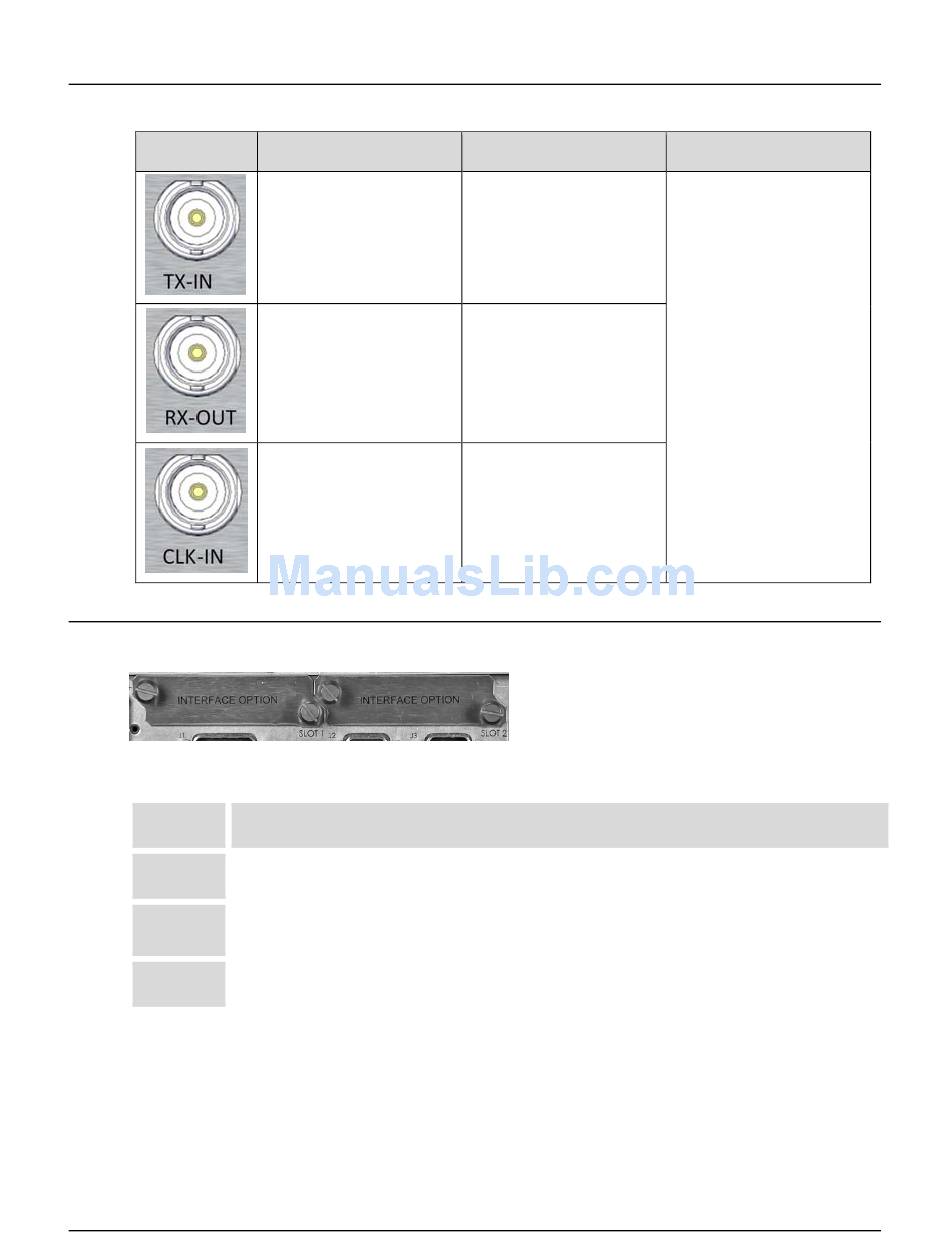

11.3 G.703 E3/T3/STS-1 PIIC Connectors and Pinouts
Connector

11.4 Installing the G.703 E3/T3/STS-1 PIIC

To install the G.703 E3/T3/STS-1 PIIC(s):
Step Description
1 Remove the blank panel(s) by loosening the captive thumbscrews
Install the module(s) into position using the chassis' internal card guides, sliding straight
2
back into the chassis until the module is firmly plugged into the mating receptacle(s).
3 Secure the module(s) to the chassis using the module captive thumbscrews.
Description
TX-IN
RX-OUT
CLK-IN
11–3
Direction
Data In
Data Out
Ext Clock Input
Two slots that accommodate the G.703
E3/T3/STS-1 PIIC are provided on the rear
panel of the CDM-750 chassis.
Revision 1
MN-CDM750
Connector Type
BNC Female
