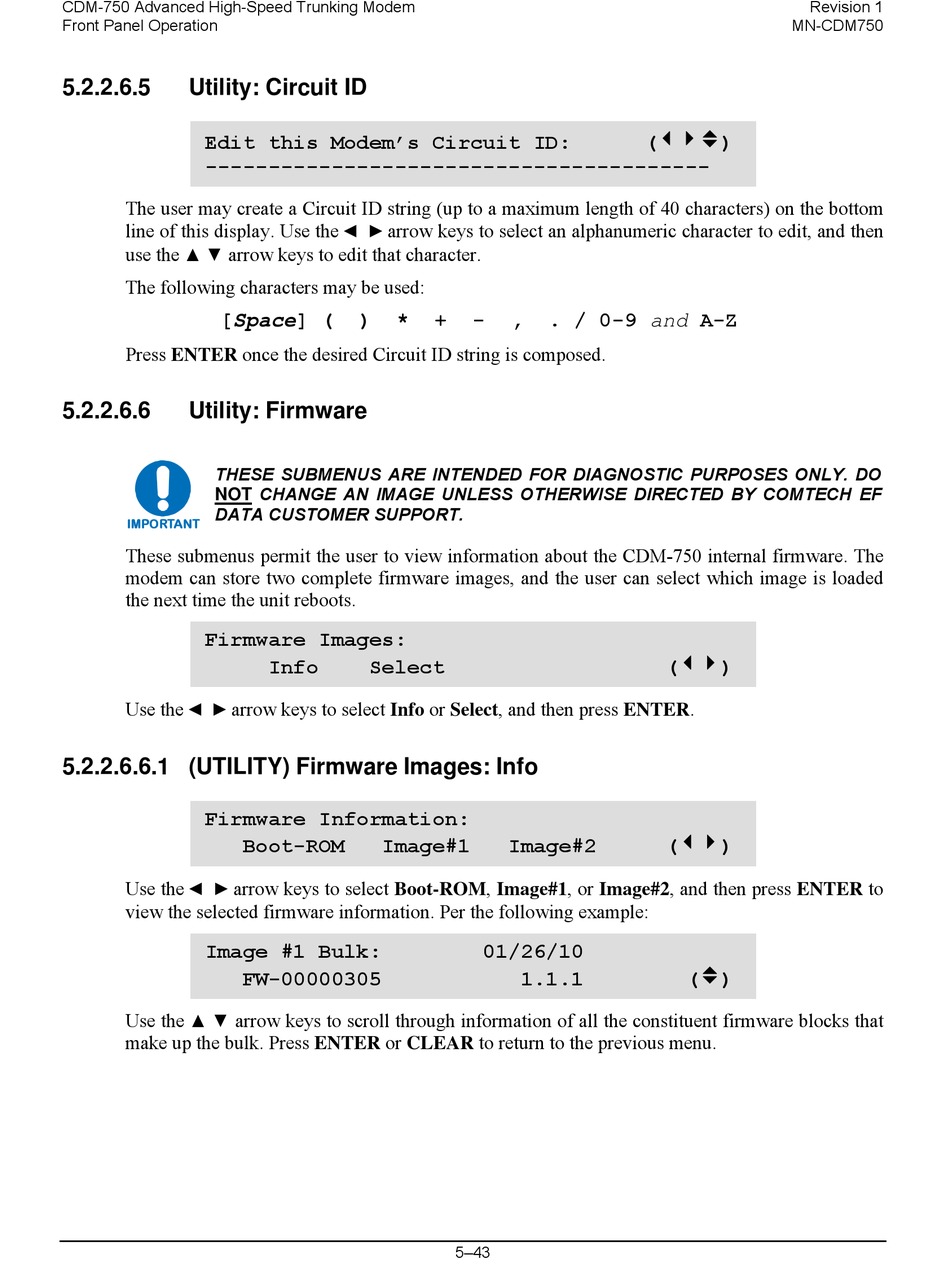

CDM-750 Advanced High-Speed Trunking Modem
Front Panel Operation
5.2.2.6.5

Utility: Circuit ID

Edit this Modem's Circuit ID:
----------------------------------------
The user may create a Circuit ID string (up to a maximum length of 40 characters) on the bottom
line of this display. Use the
use the arrow keys to edit that character.
▲ ▼
The following characters may be used:
[Space] (
Press ENTER once the desired Circuit ID string is composed.
5.2.2.6.6

Utility: Firmware

THESE SUBMENUS ARE INTENDED FOR DIAGNOSTIC PURPOSES ONLY. DO
NOT CHANGE AN IMAGE UNLESS OTHERWISE DIRECTED BY COMTECH EF
DATA CUSTOMER SUPPORT.
IMPORTANT
These submenus permit the user to view information about the CDM-750 internal firmware. The
modem can store two complete firmware images, and the user can select which image is loaded
the next time the unit reboots.
Firmware Images:
Use the ◄ ► arrow keys to select Info or Select, and then press ENTER.

5.2.2.6.6.1 (UTILITY) Firmware Images: Info

Firmware Information:
Use the ◄ ► arrow keys to select Boot-ROM, Image#1, or Image#2, and then press ENTER to
view the selected firmware information. Per the following example:
Image #1 Bulk:
Use the arrow keys to scroll through information of all the constituent firmware blocks that
▲ ▼
make up the bulk. Press ENTER or CLEAR to return to the previous menu.
◄ ►
arrow keys to select an alphanumeric character to edit, and then
) *
Info Select
Boot-ROM Image#1
FW-00000305
+ - , . / 0-9 and A-Z
Image#2
01/26/10
1.1.1
5–43
Revision 1
MN-CDM750
(34v)
(34)
(34)
(v)
