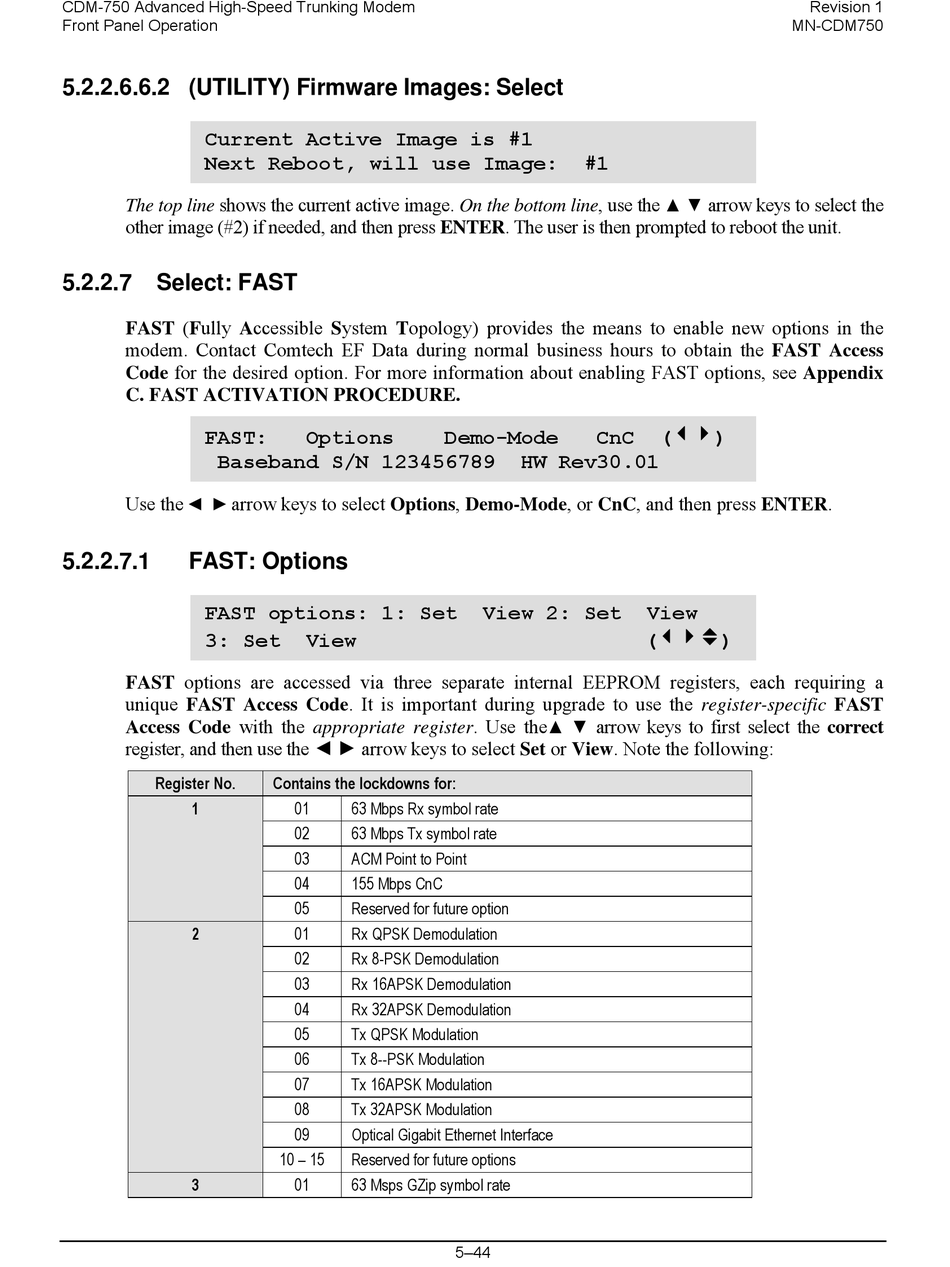

5.2.2.6.6.2 (UTILITY) Firmware Images: Select

Current Active Image is #1
Next Reboot, will use Image:
The top line shows the current active image. On the bottom line, use the
other image (#2) if needed, and then press ENTER. The user is then prompted to reboot the unit.
5.2.2.7

Select: FAST

FAST (Fully Accessible System Topology) provides the means to enable new options in the
modem. Contact Comtech EF Data during normal business hours to obtain the FAST Access
Code for the desired option. For more information about enabling FAST options, see Appendix
C. FAST ACTIVATION PROCEDURE.
FAST:
Baseband S/N 123456789
◄ ►
Use the arrow keys to select Options, Demo-Mode, or CnC, and then press ENTER.
5.2.2.7.1

FAST: Options

FAST options: 1: Set
3: Set
FAST options are accessed via three separate internal EEPROM registers, each requiring a
unique FAST Access Code. It is important during upgrade to use the register-specific FAST
Access Code with the appropriate register. Use the
register, and then use the ◄ ► arrow keys to select Set or View. Note the following:
Register No.
1
2
3
Options Demo-Mode
View
Contains the lockdowns for:
01 63 Mbps Rx symbol rate
02 63 Mbps Tx symbol rate
03 ACM Point to Point
04 155 Mbps CnC
05 Reserved for future option
01 Rx QPSK Demodulation
02 Rx 8-PSK Demodulation
03 Rx 16APSK Demodulation
04 Rx 32APSK Demodulation
05 Tx QPSK Modulation
06 Tx 8--PSK Modulation
07 Tx 16APSK Modulation
08 Tx 32APSK Modulation
09 Optical Gigabit Ethernet Interface
10 – 15 Reserved for future options
01 63 Msps GZip symbol rate
#1
CnC
HW Rev30.01
View 2: Set
arrow keys to first select the correct
▲ ▼
5–44
Revision 1
MN-CDM750
arrow keys to select the
▲ ▼
(34)
View
(34v)
