13.5.3 Data Reception in Master Mode

A data receiving procedure and operations in master mode are shown below. Figures 13.5.3.1 and 13.5.3.2 show a
timing chart and flowcharts, respectively.
Data receiving procedure
1. Assert the slave select signal by controlling the general-purpose output port (if necessary).
2. Check to see if the SPInINTF.TBEIF bit is set to 1 (transmit buffer empty).
3. Write dummy data (or transmit data) to the SPInTXD register.
4. Wait for a transmit buffer empty interrupt (SPInINTF.TBEIF bit = 1).
5. Write dummy data (or transmit data) to the SPInTXD register.
6. Wait for a receive buffer full interrupt (SPInINTF.RBFIF bit = 1).
7. Read the received data from the SPInRXD register.
8. Repeat Steps 5 to 7 until the end of data reception.
9. Negate the slave select signal by controlling the general-purpose output port (if necessary).
Note: To perform continuous data reception without stopping SPICLKn, Steps 7 and 5 operations must
be completed within the SPICLKn cycles equivalent to "Data bit length - 1" after Step 6.
Data receiving operations
SPIA Ch.n starts data receiving operations simultaneously with data sending operations when transmit data (may
be dummy data if data transmission is not required) is written to the SPInTXD register.
The SPICLKn pin outputs clocks of the number of the bits specified by the SPInMOD.CHLN[3:0] bits. The
transmit data bits are output in sequence from the SDOn pin in sync with these clocks and the receive data bits
input from the SDIn pin are shifted into the shift register.
When the last clock is output from the SPICLKn pin and receive data bits are all shifted into the shift register,
the received data is transferred to the receive data buffer and the SPInINTF.RBFIF bit is set to 1. At the same
time SPIA issues a receive buffer full interrupt request if the SPInINTE.RBFIE bit = 1. After that, the received
data in the receive data buffer can be read through the SPInRXD register.
Note: If data of the number of the bits specified by the SPInMOD.CHLN[3:0] bits is received when the
SPInINTF.RBFIF bit is set to 1, the SPInRXD register is overwritten with the newly received data
and the previously received data is lost. In this case, the SPInINTF.OEIF bit is set.
SPICLKn
SDOn
SDIn
SPInINTF.TBEIF
SPInINTF.RBFIF
SPInINTF.TENDIF
Data (W) → SPInTXD
Software operations

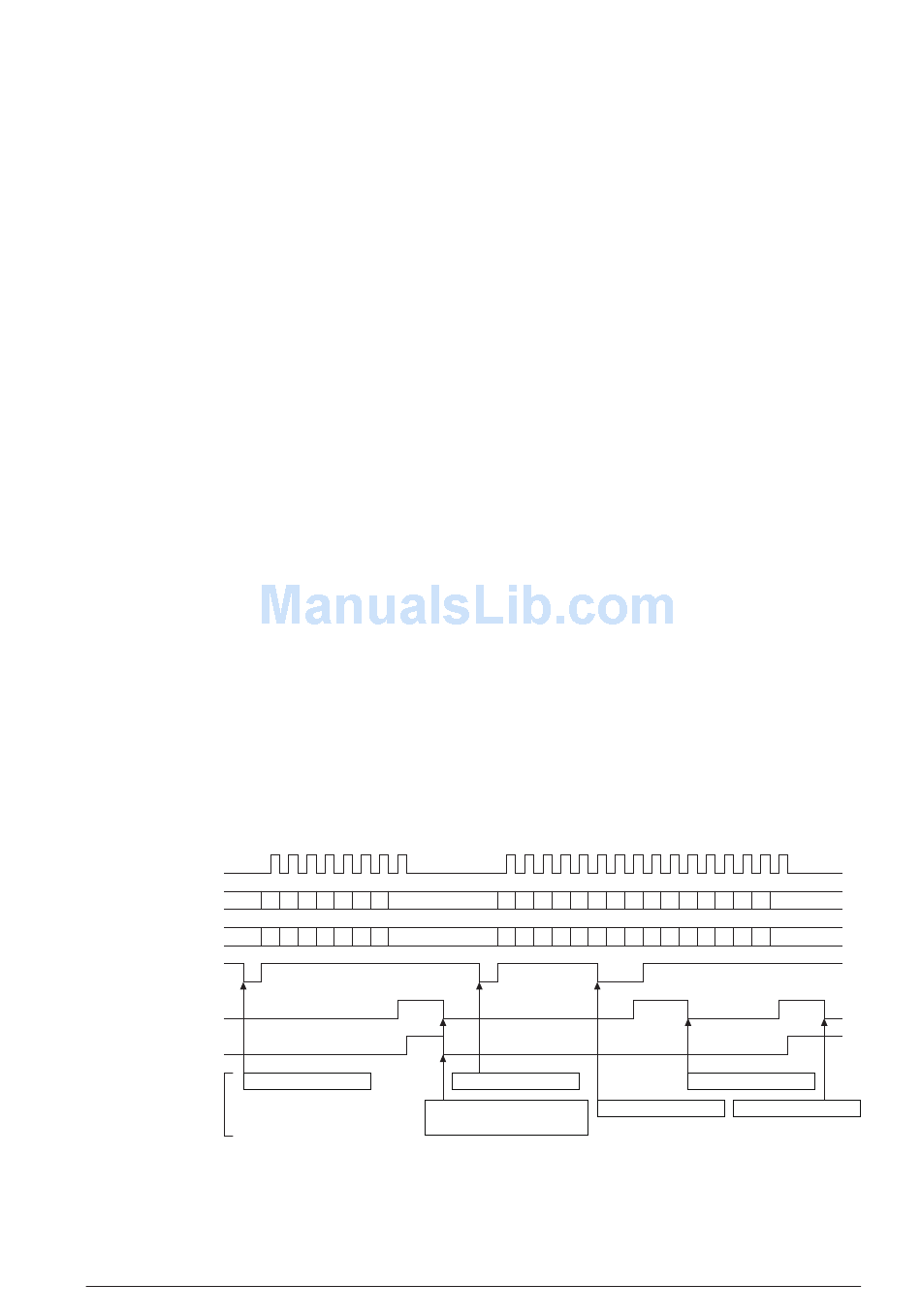

Figure 13.5.3.1 Example of Data Receiving Operations in Master Mode (SPInMOD.CHLN[3:0] bits = 0x7)
S1C17M20/M21/M22/M23/M24/M25
TECHNICAL MANUAL (Rev. 1.0)
1 2 3 4 5 6 7 8
SPInRXD → Data (R)
1 (W) → SPInINTF.TENDIF
Seiko Epson Corporation
13 SYNCHRONOUS SERIAL INTERFACE (SPIA)
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
Data (W) → SPInTXD
Data (W) → SPInTXD
SPInRXD → Data (R)
SPInRXD → Data (R)
