To add a palette reference to an attribute select it from the panel on the left and while holding the mouse button down
drag and drop it onto the attribute.
Alternatively you can enter palettes by clicking in the required attribute field and start typing the name of the palette
you want. As you begin to type a popup list of palettes will appear. Use the up and down arrow on your keyboard to
select the palette you want and press enter to assign it to the attribute.
Using the palette reference tab in the detail editor is a very slow way to add palette reference and is designed to be
used as an editing tool to make changes after the cue is created. The easiest way to work with palettes is to record
them from the channel display.
Matrix
A cue can also be viewed as a pre-defined matrix and edited in a painting style.

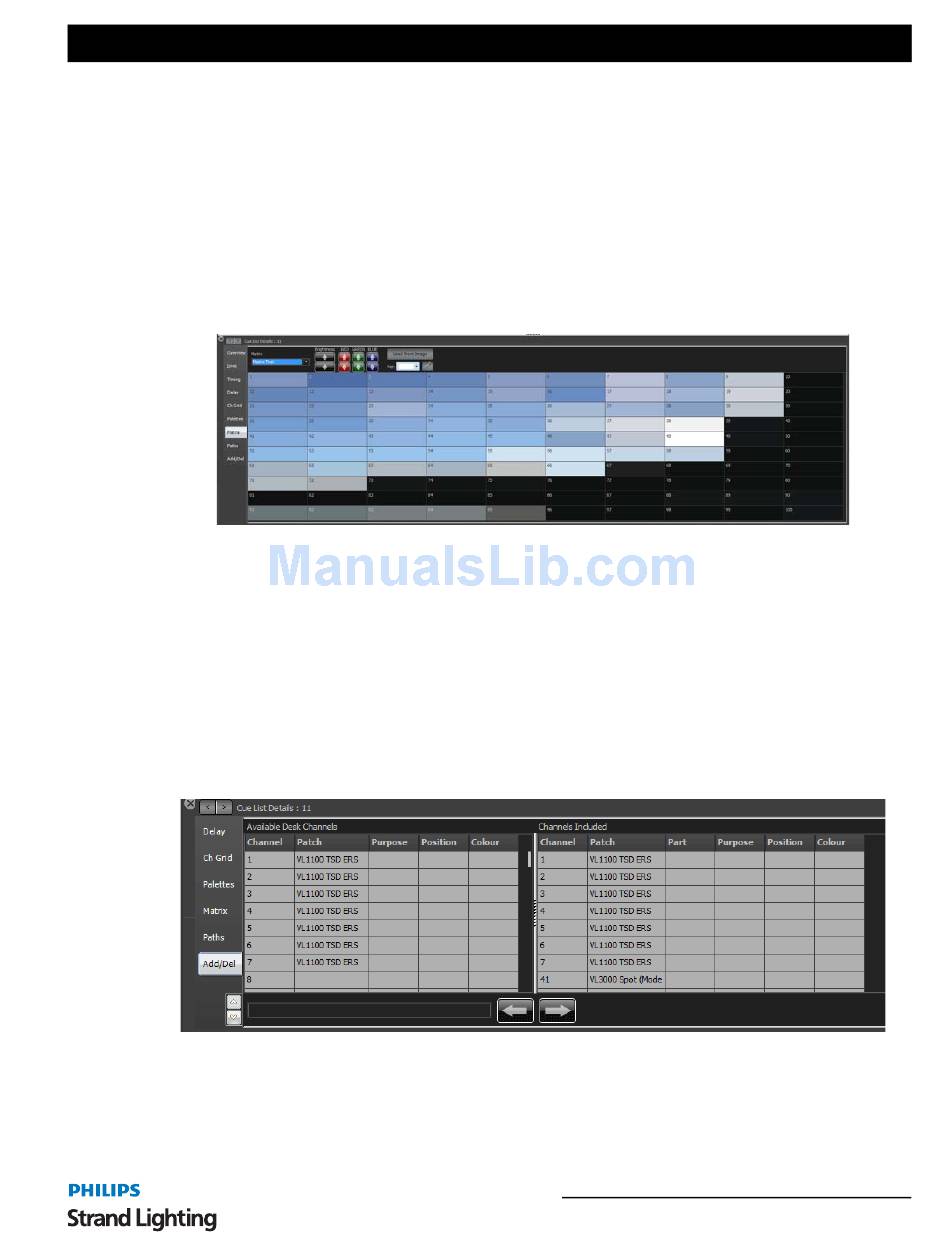

Fixture Detail - Matrix view
Select the matrix you want to view the cue as using the drop down box at the top left of the window. The Matrix tab
shown above will appear if any matrices have been defined in the software. The two dimensional grid will show a
representation of the matrix definition. You can then paint to the matrix by selecting the pen color and then clicking
anywhere in the grid. Use the "Load from Image" button to map any bitmap or jpeg onto the matrix.
If the channels connected to the matrix cell do not exist in the cue they will be automatically added as soon as you
paint to it and the appropriate color will be set. If the channel already exists in the cue then its color will be changed
to reflect the painted color.
Additional controls allow you to tweak the brightness, red, green or blue content of the matrix.
Add/Delete
The final tab provides convenient options for adding and removing channels from the cue.
This window is divided into two halves. On the left hand side is a list of all the channels in the system. Additional
information such as purpose, positions etc are also provided to help identify channels. The right hand panel is the list
of channels that are included in the cue.
103
