Thumb Wheel
For systems that do not have a scroll wheel on the mouse or cursor (such as tablet or pen based systems)
you can use the on screen wheel provided. Click on this control and hold down the mouse button down. As
you move your mouse or cursor up and down the intensity of the channels will change in the same way as
the scroll wheel.

Control Tabs

The Control Tabs display onscreen control for the tabbed item. These onscreen controls link to the hardware as well
as Command Line operation.
Fixture Control
Fixture Control appears when any patched attributed fixture is selected. Attributes are collected into Attribute
Families. While the fixture library can be infinitely flexible, standard Attribute Families have been created to best
interface with the hardware.
These are Position (movement), Color (all colors), Beam (gobos, prism and all inside beam attributes), Edge (focus,
zoom, iris, shutters and all outside beam attributes).
Position Tab

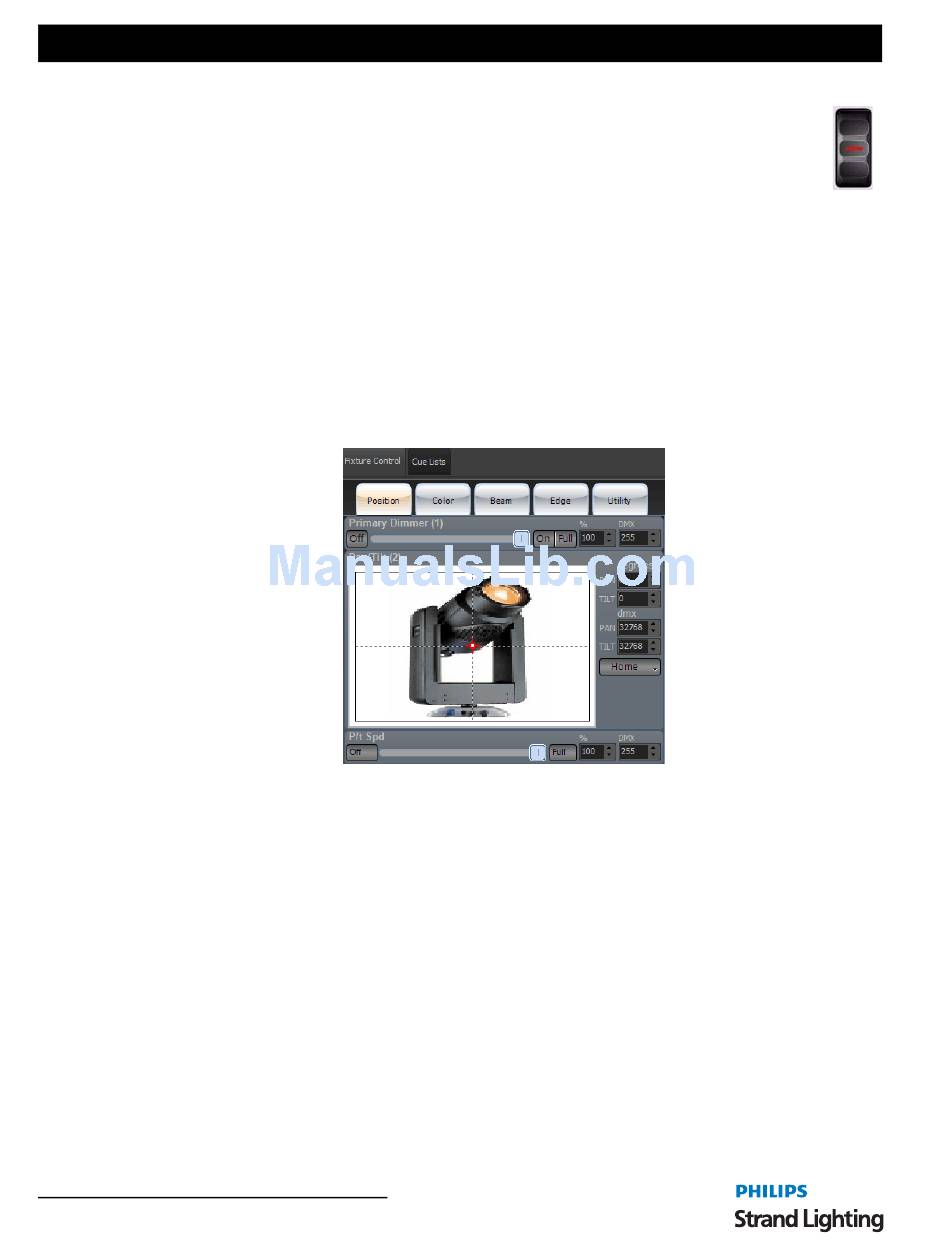

The example fixture here is a VARI*LITE VL1100TSD Automated Luminaire. The Position page shows the Intensity
(Primary Dimmer), Pan/Tilt and Pan/Tilt Speed. These have shortcut buttons for On/Full/Off and edit boxes for
percentages/degrees and DMX values. The console itself has buttons for all of the Attribute Families.
