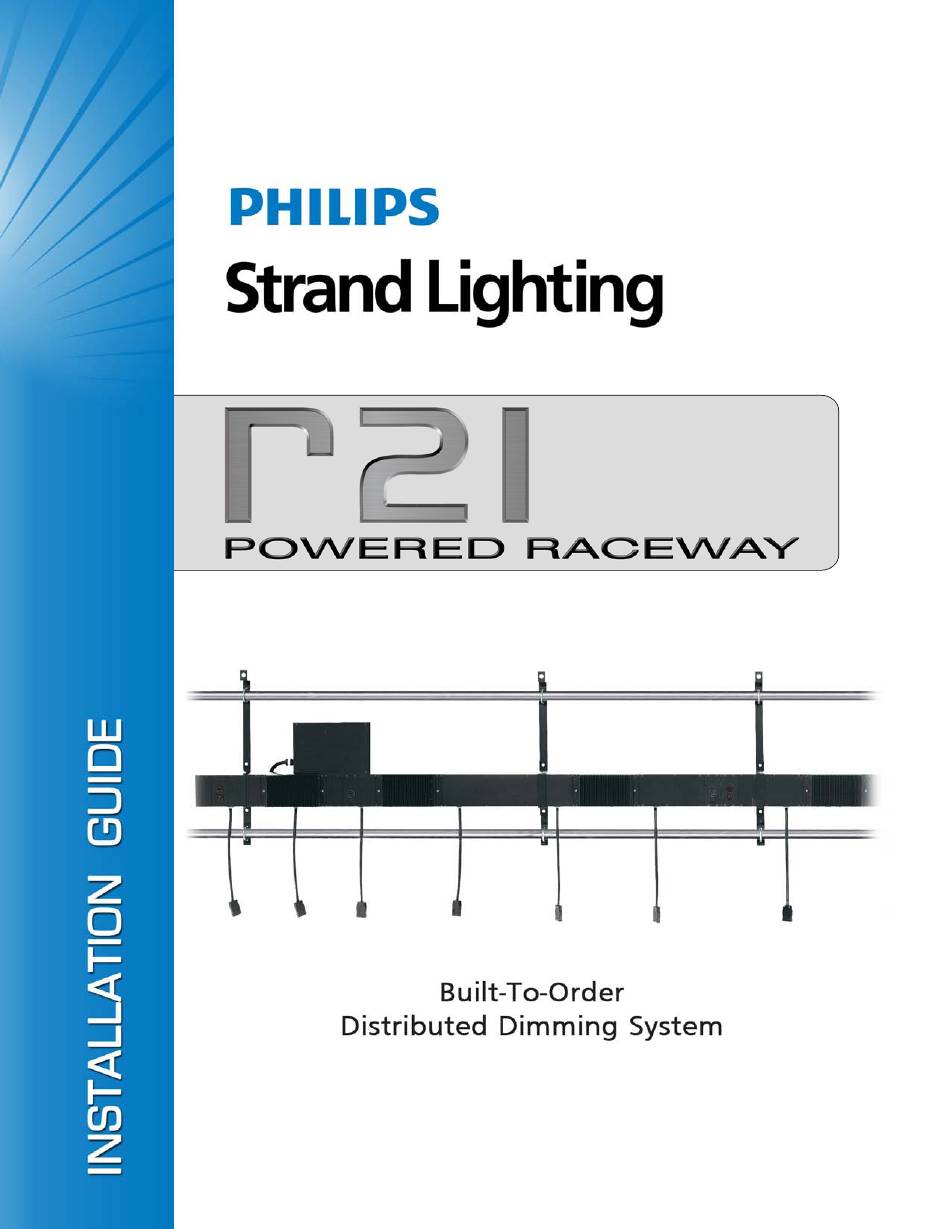

Strand Lighting R21 Installation Manual

Powered raceway

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R21 and is the answer not in the manual?

Questions and answers

Summary of Contents for Strand Lighting R21

  • Page 2: Strand Lighting Offices

    Lighting no asume responsabilidad por errores o omisiones que puedan aparecer. Cualquier comentario, sugerencia o corrección con respecto a este manual, favor de dirijirlo a la oficina de Strand Lighting más cercana. Der Inhalt dieses Handbuches ist nur für Informationszwecke gedacht, Aenderungen sind vorbehalten. Strand Lighting uebernimmt keine Verantwortung für Fehler oder Irrtuemer, die in diesem Handbuch auftreten.
  • Page 3: Important Safeguards

    R21 Powered Raceway Installation Guide IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed including the following: a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. b. Do not use outdoors. c. Do not mount near gas or electric heaters.
  • Page 4: Table Of Contents

    Master/Slave Wiring (DIM96) ........................18 Panic Input..............................18 Installing Cable Tray (if applicable)........................19 Complete and Test ..............................19 Maintenance Procedures Replacing a Dimmer Module..........................20 Appendix A. R21 Powered Raceway Dimmer DIP Switch Settings ..................21 Table of Contents...
  • Page 5 R21 Powered Raceway Installation Guide...
  • Page 6: Preface

    Installation Guide PREFACE 1. About This Guide The document provides installation instructions for all configurations of the R21 Powered Raceway. Please read all instructions before installing or using this product. Retain this guide for future reference. 2. Additional Resources Other Manuals For additional operation, maintenance, and setup information, please see the following Strand manuals: •...
  • Page 7: Overview

    Call For Approval Do not energize the R21 Powered Raceway until the wiring has been approved by an authorized technician. Call Strand Lighting to schedule an Engineering Checkout. Installation and Checkout Sequence...
  • Page 8: Components

    1. R21 Powered Raceway The R21 Powered Raceway - up to 96 feet long - contains one Raceway Control Module (RCM), up to forty-eight 20A Dual Dimmer Modules, and at least one Power Terminal Box (PTB). The number of Power Terminal Boxes is determined by the location and the number of necessary power feeds.
  • Page 9: Raceway Control Modules

    Installation Guide 2. Raceway Control Modules The Raceway Control Module (RCM) is used to configure the R21 Powered Raceway. The RCM comes in two configurations, a 19-inch "rack mount" configuration for remote applications or a "head end" configuration for local applications.
  • Page 10: Dimmer Modules

    Installation Guide 3. Dimmer Modules R21 Powered Raceway Dimmer Modules contain one 20A dual dimmer with 20A (2400W) power shared between the two dimmers. Each dual dimmer module includes two Focus/LED Indicator buttons, which function as both focus adjustment controls and status indicators.
  • Page 11: Mechanical Considerations

    • Indoor Use Only - The R21 Powered Raceway is rated for indoor use only. • Dry Locations Only - The R21 Powered Raceway can only be installed in an "office clean" area that is never exposed to moisture of any kind. Strand Lighting is not responsible for damage to equipment caused by paint, dust, solvents or cleaning supplies.
  • Page 12: Wire Routing

    Failure to disconnect power before installing or servicing the unit may result in injury. 4. Wiring Requirements • For control wire-type requirements, refer to your job drawings as prepared by Strand Lighting. • For power wire-type requirements, refer to Strand Lighting drawings, contract drawings, and applicable codes.
  • Page 13: Installation Procedure

    The 71444 Single-Pipe Overhung Hanger Bracket is used to attach an R21 Powered Raceway to a single 1-1/2" schedule 40 pipe with no additional overhead support. The 71440 Single-Pipe Rigged Hanger Bracket is used to suspend a single 1-1/2" schedule 40 pipe and an R21 Powered Raceway from a rigging system or a ceiling.
  • Page 14: Double-Pipe Methods

    Figure 7: Double-Pipe Methods Threaded Rod and Wall Mount Methods The 71445 Threaded Rod Bracket is used to suspend one 1-1/2" schedule 40 pipe and an R21 Powered Raceway from a rigging system using threaded rod support. The 71442 Wall Mount Hanger Bracket is used to permanently mount an R21 Powered Raceway to a wall.
  • Page 15: Connecting Power Wiring

    Overview The R21 Powered Raceway is designed to be wired from the top or side of the Power Terminal Box (see Figure 10 on next page). Eight knock-out holes are provided (four on top, two on each side) for this purpose. We recommend connecting the Line Power wiring and Grounds (if applicable) first, and the Load Neutral and Load Hot wires last.
  • Page 16: Line Power

    R21 Powered Raceway Installation Guide Line Power WARNING! You must have access to a main circuit breaker or other power disconnect devices in order to install any wiring. Failure to disconnect power before installing or servicing the unit may result in injury.
  • Page 17: Connecting Control Wiring

    For details regarding the specific low-voltage control cable wiring for your project, refer to your project drawings as prepared by Strand Lighting. The low-voltage control cable will connect to the R21 Raceway Control Module (RCM). The RCM comes in two configurations, a 19-inch "rack mount" configuration for remote applications or a "head end"...
  • Page 18: Dmx512

    R21 Powered Raceway Installation Guide DMX512 DMX512 XLR Pin WE Color Code IECA Color Belden Standard CAT5e Terminal Name (e.g., Belden #8132) Code Color Code Color Code Brown (8) Drain Wire (Shield) Drain (Shield) Drain (Shield) White/Brown (7) Black DMX -...
  • Page 19: Vision.net Networks (Svn/485)

    R21 Powered Raceway Installation Guide Vision.net Networks (SVN/485) Pin Number Signal Name CAT5e Wire Color Data + White w/ Orange Data - Orange SHIELD Shield +24 VDC White w/ Green Signal GND Green +24 VDC White w/ Blue Signal GND...
  • Page 20: Termination Of Ethernet Cable

    R21 Powered Raceway Installation Guide Termination of Ethernet Cable Function Pair # Pin Out (T568B) Wire Color (T1) White w/ Blue (R1) Blue Tx + (T2) White w/ Orange Tx - (R2) Orange Rx + (T3) White w/ Green Rx - (R3)
  • Page 21: Master/Slave Wiring (Dim96)

    R21 Powered Raceway Installation Guide Master/Slave Wiring (DIM96) Pin Number Signal Name CAT5e Wire Color + 24 VDC White w/ Orange +24 VDC Orange + RX White w/ Green - RX Green + TX White w/ Blue - TX Blue...
  • Page 22: Installing Cable Tray (If Applicable)

    5. Installing Cable Tray (if applicable) Once the R21 Powered Raceway is mounted, install the cable tray (basket) if this optional component has been included. The cable tray is installed using the appropriate holes at the top of the unit. Dress control cables in cable tray as required.
  • Page 23: Maintenance Procedures

    WARNING! Failure to disconnect power before servicing may result in injury. To replace a dimmer module: Step 1. Turn off all power to R21 Powered Raceway. Step 2. At dimmer module, loosen four screws and partially remove from system (Figure 13).
  • Page 24: R21 Powered Raceway Dimmer Dip Switch Settings

    R21 Powered Raceway Installation Guide APPENDIX A. 1. R21 Powered Raceway Dimmer DIP Switch Settings Dimmer 1-2 Dimmer 33-34 Dimmer 3-4 Dimmer 35-36 Dimmer 5-6 Dimmer 37-38 Dimmer 7-8 Dimmer 39-40 Dimmer 9-10 Dimmer 42-42 Dimmer 11-12 Dimmer 43-44 Dimmer 13-14...
  • Page 25 Module 43 Dimmer 85-86 Module 44 Dimmer 87-88 Module 45 Dimmer 89-90 Module 46 Dimmer 91-92 Module 47 Dimmer 93-94 Module 48 Dimmer 95-96 Figure 15: Dimmer DIP Switch Setting Chart (Part 2) R21 Powered Raceway Dimmer DIP Switch Settings...
  • Page 26 Notes...
