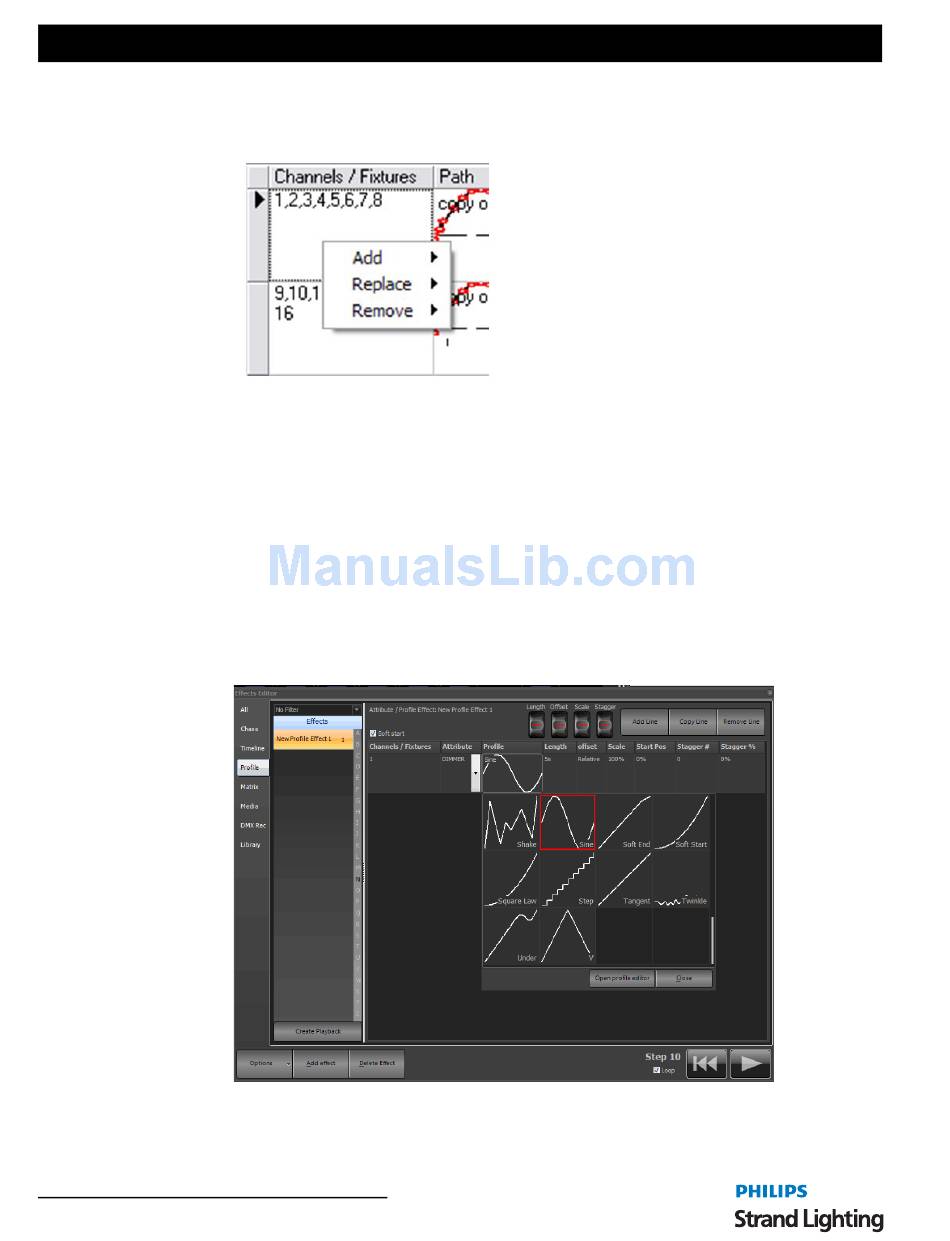

If you right click on the channel list cell you can add or remove channels from the selection shortcuts. The popup
menu will provide options to add, replace or remove channels. Each submenu will display the selection shortcuts
already setup in the system.
Prop Effect Channel List Menu
Attribute
This value specifies the attribute of each of the fixtures that values will be applied to. Use the drop down menu to
select from a generic attribute list the attribute you want to use. You can also enter a number corresponding to the
attribute for a specific fixture type. If you are using an attribute number then all of the fixtures should be of the same
type. If different types exist then you will get strange results. The generic attribute can be used on any mix of fixtures.
If the fixture does not support the selected generic attribute then any applied values will be ignored.
Profile
The profile is the key to this type of effect as it defines exactly what the selected attribute of the fixtures will do. As
the effect plays, the output value (DMX value) is derived from a point in the profile path. A "sine" wave for example
will output the DMX values 127 at time 0, 0 at ¼ of the way through the effect and full (255) at ¾ of the way through
the effect. The selected profile is shown graphically in each line of the effect
To change the profile click on the profile column of the line you want to change. A drop down box will appear listing
all of the profiles that exists in the system.
The profile chooser will display four profiles access to maximize the number that can be seen. The profile currently
assigned to the line will be highlighted with a red border. Use the scroll bar on the left hand side to find other profiles
not visible on the page.
