NEO Lighting Control Console

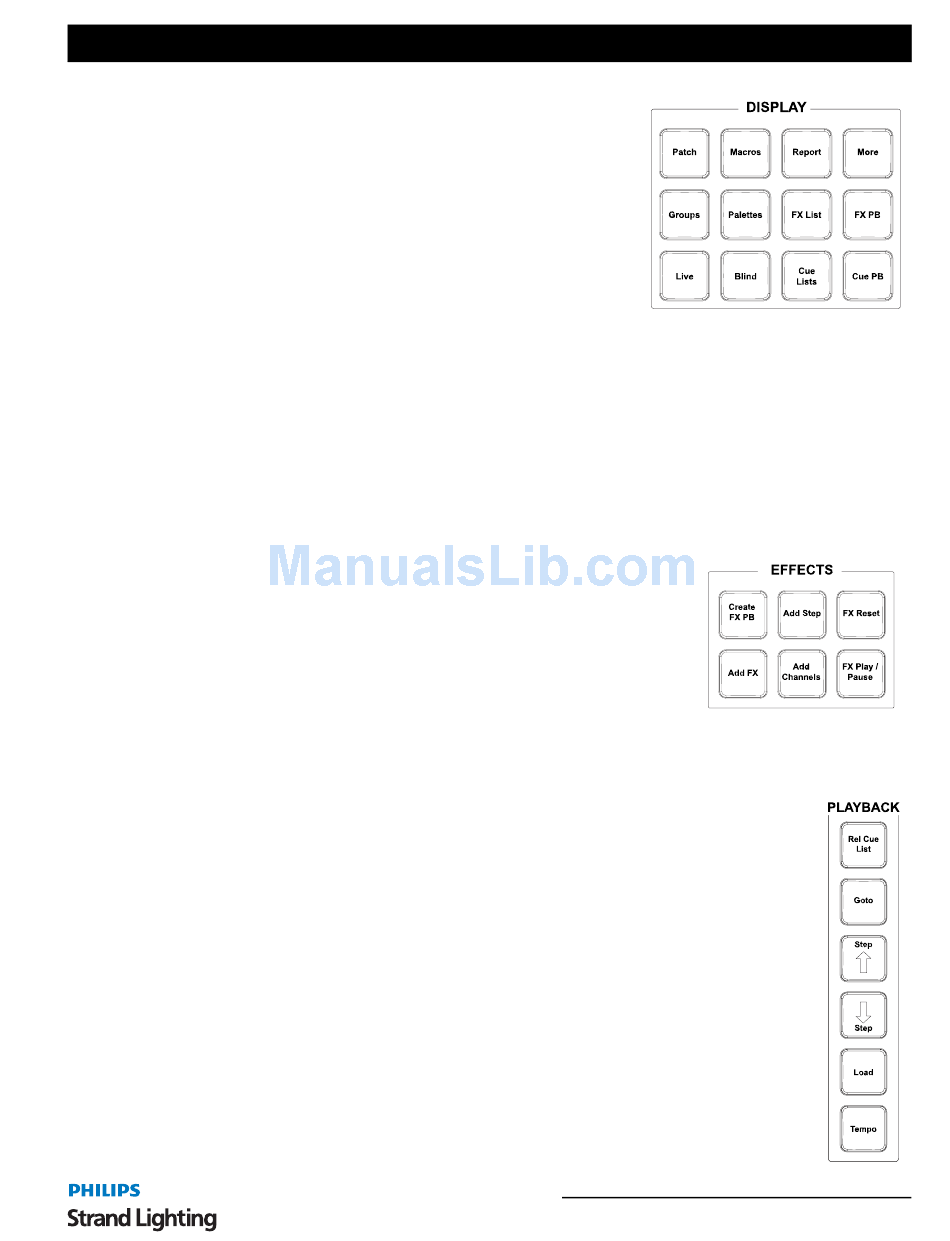

Display Keys

[Live] - Live is the main viewport and will show all active output for
fixtures and cues.
[Blind] - Activates Blind Mode. While in Blind, the channel grid has a
Grey background. Blind allows for non-Live viewing and editing.
[Cue Lists] - Opens the Cue List Details window. All details about cues
are available here.
[Cue PB] - Opens Cue playback popup window.
[Groups] - Opens Groups popup window. Allows editing of groups and
submasters assignment.
[Palettes] - Opens Palettes window. Allows editing/ adding/ deleting of Palettes for attributable fixtures.
[FX List] - Opens Effects editor window. Allows for adding, editing, and deleting effects.
[FX PB] - Opens effects playback window. Displays any saved effects for previewing.
[PATCH] - Switches the Screen display to view the patch screen (single monitor layout) or opens Patch popup
window (multiple monitor layout). Allows for editing of fixture assignment and how they are controlled.
[Macros] - Opens macro editor window. Allows for creating/editing/deleting of macros.
[Report] - Opens Selected Fixture Report popup window.
[More] - Brings up MORE menu from lower right, which allows access to additional screens and functionality.

Effects Keys

[Create FX PB] - Opens Effects editor popup window. Allows for adding, editing,
and deleting effects.
[Add Step] - Adds a step to the selected existing effect.
[FX Reset] -. Resets the currently running effect.
[Add FX] - Opens popup window with effects types to aid in the creation of
effects. Includes an Effects wizard to guide user through creating custom effects.
[Add Channels] - Adds channels to the selected step in effects creation/ editing.
[FX Play/Pause] - Acts as a GO/Stop button for the selected effect.

Playback Keys

[Rel Cue List] - Releases the current primary cue list and all fixtures will restore to default.
[Goto] - Places desired cue live on stage. Ex: [GOTO] [1] [ENTER].
[Step Up (arrow up)] - Cuts to the previous cue in the cue list.
[Step Down (arrow down)] - Cuts to the next cue in the cue list.
[Load] - Will preset the loaded cue as the next cue that runs on Go. [LOAD] [#] [ENTER]
[Tempo] - Allows the user to establish a tempo for manually stepped effects.
25
Programming Button Layout
