setting then the message has not reported a successful change. Changing the personality may change the footprint of
the fixture.
Identify - Use the identify button to find the fixture or device. This function is used for the user to physically identify
the device. The device/fixture shall physically identify itself using a visible or audible action. For example, strobing a
light or outputting fog. Click on this button will put the device/fixture into identify mode and change the label top
"Identify Off". Clicking again will turn off the identify mode.
Clear channel assignment - Click on this button to clear all of the channel numbers currently assigned to the
devices. No changes will be made to the actual patch at this point. All of the devices/fixtures will show "not patched".
Clear DMX address - Click on this button to clear all of the DMX addresses shown. This will not change the
assigned DMX start address on the device/fixture. Use this option when you want to automatically patch all of the
fixtures found using the instructions below.
Automatic Patching
The NEO RDM window provides a quick and easy way to patch all of the RDM devices that have been found. Before
starting this process click on the "clear channel assignment" and the "clear DMX addresses" button.
Next use the identify button to find the first fixture you want patched. Once you have found the first fixture you want
click on the "Patch" button. The selected fixture will be patched to the first channel and the first DMX address.
If the fixture (referenced by the Manufacturer and Model information) if not found the NEO fixture database then the
software will interrogate the fixture using RDM and build a suitable fixture profile. The amount of detail contained in
the new fixture profile will depend on the RDM commands supported by the device/fixture.
To patch the rest of the devices/fixtures use the identify button to find the next fixture and click "Patch" to patch it
into NEO. The software will automatically assign the next channel and the correct DMX start address to fit the
fixture.

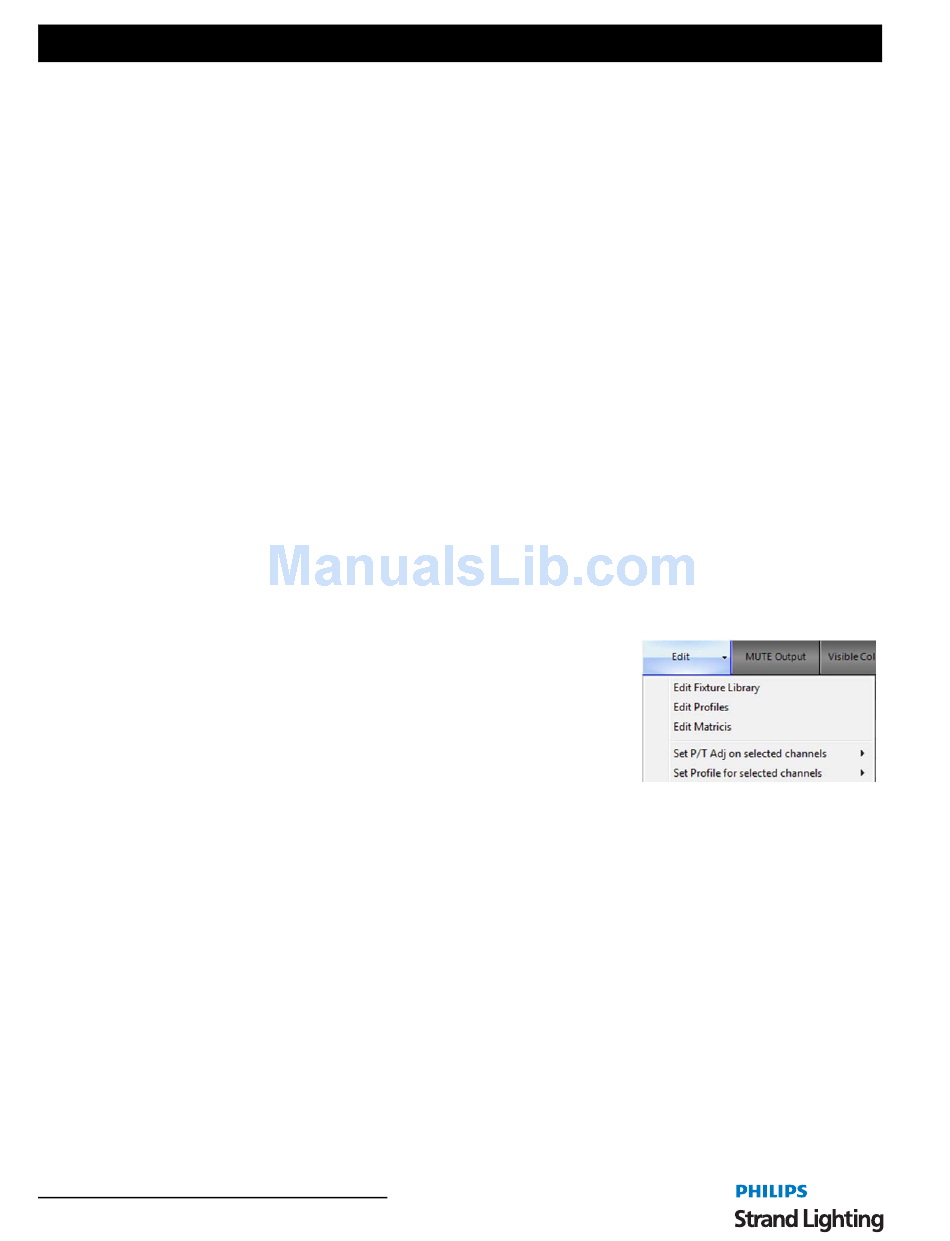

Edit Menu
The edit menu provides access to the following windows:
Edit Fixture Library
The fixture library is the list of all available fixtures that can be patched in the
software. Each fixture has an associated definition file that contains
information about how the NEO can manipulate the features of the light.
