INSTALLATION AND SETUP
1. Unpack

Site Requirement

The console and its components require a sturdy, flat surface for installation. The surface should be able to support
the weight of the console (including monitors, etc.) and should provide suitable ventilation. Also, the site should be
clean (i.e. absent of any construction dust or debris) and dry. Before setting up, ensure that the installation site meets
these requirements. Refer to product specification sheet on the Philips Strand Lighting web site for console
dimensions and power requirements.

Product Care

In the event the console needs to be cleaned, remove all power from unit and use only a very mild soap on a damp
cloth. Dry immediately with a soft lint-free cloth after cleaning. Never use harsh chemicals such as window cleaners,
paint removers, vinyl conditioners, etc.
It is recommended to gently blow out the sub pots and desk occasionally to prevent buildup of dust and dirt.

Unpack and Assemble Components

To unpack and assemble the console components, do the following:
Step 1. Remove console components from shipping container or case.
Step 2. Place console desk on installation surface.
Step 3. Place monitor(s)* and other external components close enough to console so that cabling will reach.
*Monitors sold separately.

2. Hardware Setup

Connecting Console Components

Figure 1 outlines the NEO Lighting Control Console's connections.
AC Input
On/Off Switch
USB 3.0 Ports
USB 2.0 Ports
Display Port
HDMI
HDMI Port
DVI Port
COM Ports
DMX Input
SMPTE In/Out
DMX Output (x4)

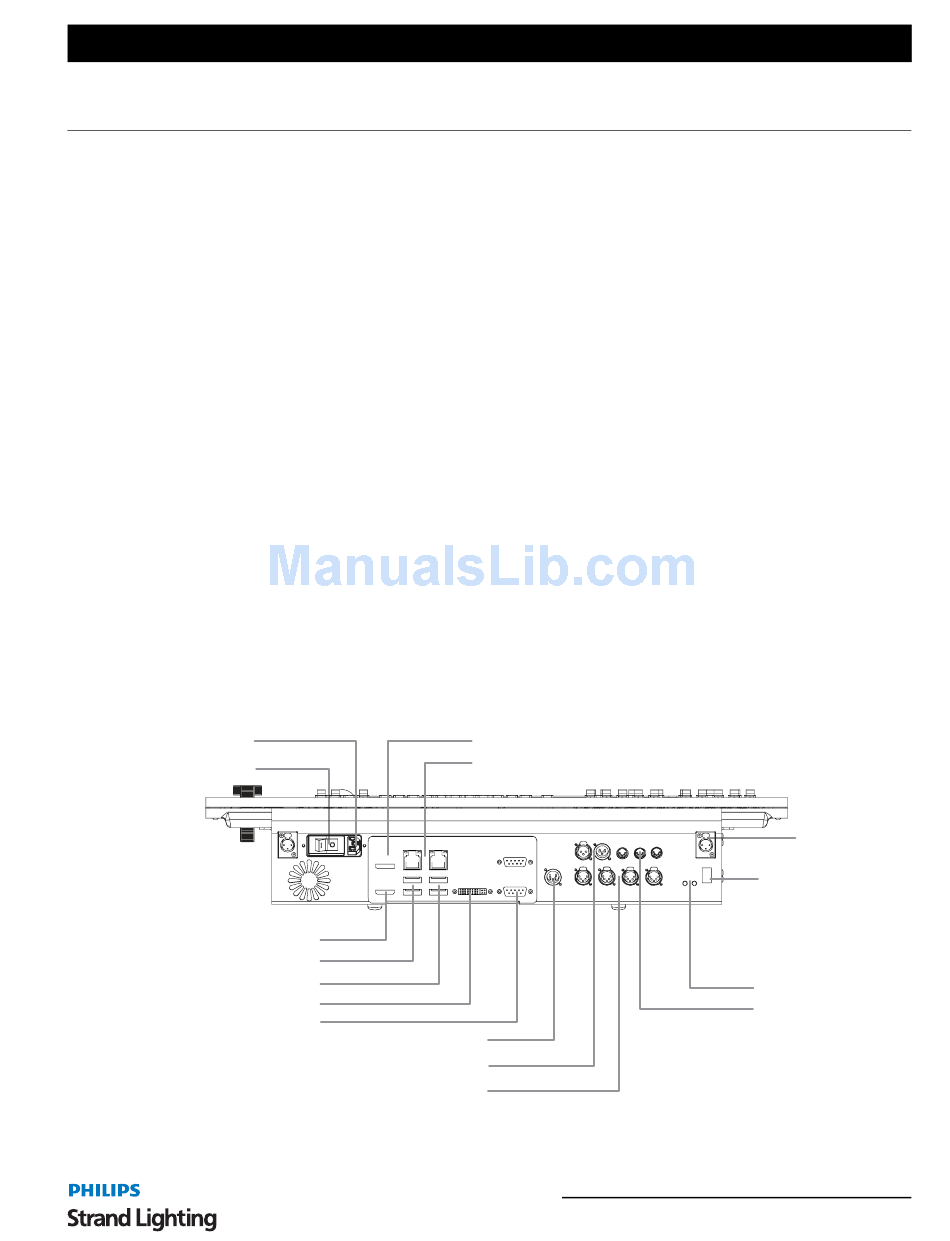

Figure 1: Console Rear Panel Connections
VESA Display Port
Network Ports
DVI
NEO Lighting Control Console
Rear of Unit
Console Light
Receptacle (x2)
Kensington Security
Lock Slot
(security cable and lock
by others)
Status Indicators
MIDI In/Out
