To modify the patching of dimmers or intelligent fixtures to channels open the "Patch" window by clicking on the
"Patch" button on the command window or pressing F7 on your keyboard.
Fixture Spreadsheet

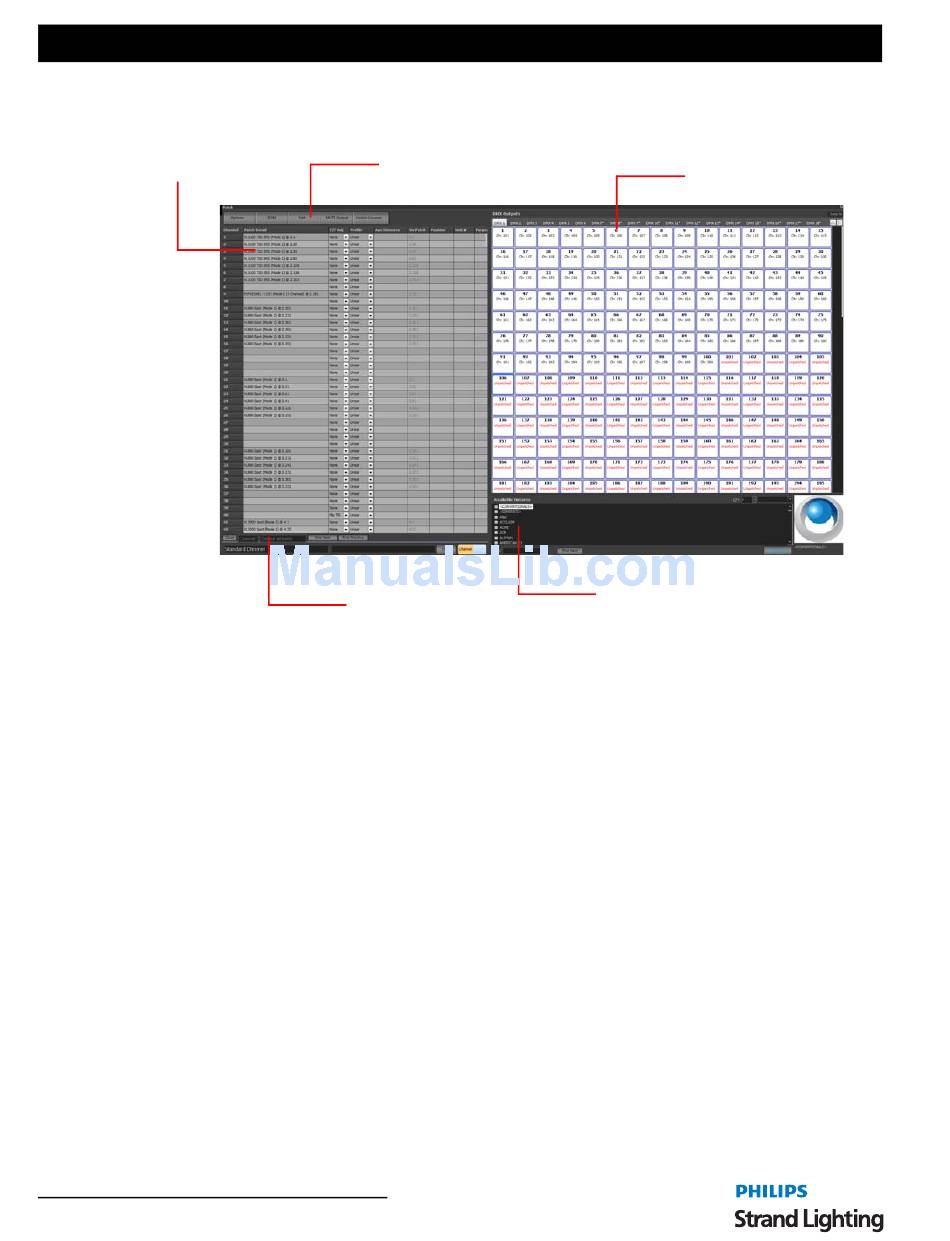

The "Dimmer Patch" window is broken into three sections.
Channel/Fixture View - On the left of the window, this allows you to see all of the channels and how they are
currently patched.
DMX Output View - At the top right is the DMX output view, containing all of the available outputs.
Fixture List - At the bottom right is the fixture list, containing all the different fixtures that can be patched into
channels.
When NEO is started for the first time or when a new show is created, all channels will be patched 1 to 1 with the
available dimmers.
P/T (Pan & Tilt) Adjust
These options give you the ability to reverse the operation of the pan and tilt control of moving lights. If you find that
a moving light has been hung in reverse to the logical movement of the light then you can correct it without having to
physically change the position of the light. Use the drop down combo to select the adjustment you want.
Flip Pan - The pan function of the fixture will be reversed
Flip Tilt - The tilt function of the fixture will be reversed
Flip Pan & Tilt - The pan & tilt function of the fixture will be reversed
Swap Pan & Tilt - The pan function will operate tilt and the tilt will operate pan.
Profile
Use the drop down combo box to select the default profile for the dimmer.
information about this option.
1 4 2
Software Configuration
Commands and Pulldowns
Command Line
Patch Area
DMX Outputs
Available
Fixtures
for GUI Patching
See "Profile" on page 101
for more
