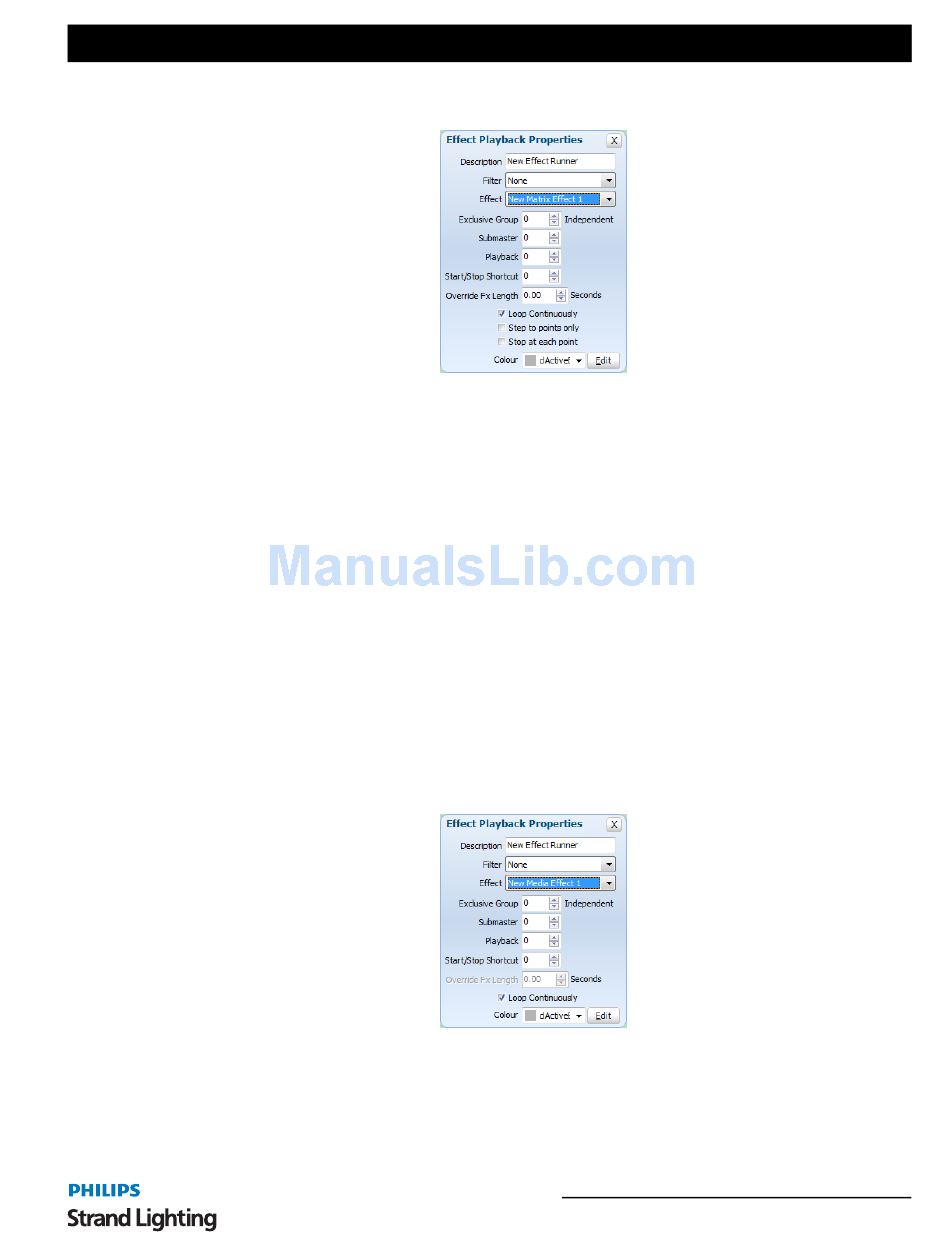

Matrix Effect Options

Submaster - Assigning a submaster to the playback will override the intensity the all of the fixtures contained in the
matrix.
Playback - Assigning a playback will disable the submaster edit as only one can be assigned to the FX playback at a
time. A playback relates to the Enttec Playback wing. Assigning a playback does more than just utilize the intensity
control of the fixtures in the matrix but also allows you to use the play, back and pause buttons to run the effect.
Start/Stop Shortcut - Set a shortcut number to assign to the playback controls for this playback. Pressing the shortcut
will start the effect running. Pressing the shortcut while the effect is running will pause the effect and pressing it twice
within 2 seconds will rewind the effect to the start.
Override Effect Length - Set this field to change the length that the effect will run for. If this value is set to 0, the
default length (Set during creation of the effect) will be used.
Loop Continuously - Check this option to make the effect loop back to the start when it finishes. If this option is not
checked then it will stop as soon as the effect ends.
Step to points only - Set this option to jump between points rather than tracking a smooth path. When the effect is
started the length of the effect will be broken up into the number of control points. As the effect runs it will jump from
point to point at equal time intervals.
Stop at each point - Set this option to run the effect more like a chase where each point becomes a step. The effect
will play normally however when each point is reached the effect will pause and wait for a play command.

Media Effect Options

Submaster - Assigning a submaster to the playback will override the volume of audio and the brightness of video
during playback of the effect.
Playback - Assigning a playback will disable the submaster edit as only one can be assigned to the FX playback at a
time. Assigning a playback will control the running the media file plus provide submaster functionally via the slider
below the playback controls.
161
FX or Effects Playbacks
