Circuit Name, Circuit Number & Dimmer Phase
Use these fields to record the power source to the fixture. This information may be needed later to debug power
problems.

Accessories

If the fixture has any added accessories added to it (top hat etc) the information can be recorded into this field.

Generic Data 1, 2 and 3

Any other information you want to record with the fixture can be stored in any of the three generic fields. Information
in these fields will be displayed in the verbose view of the channel display.

DMX Settings

The DMX settings column is a read only display of the dip switch settings for the patched
address. If the fixtures address is set by dip switched then this field can be used as a handy
reference.

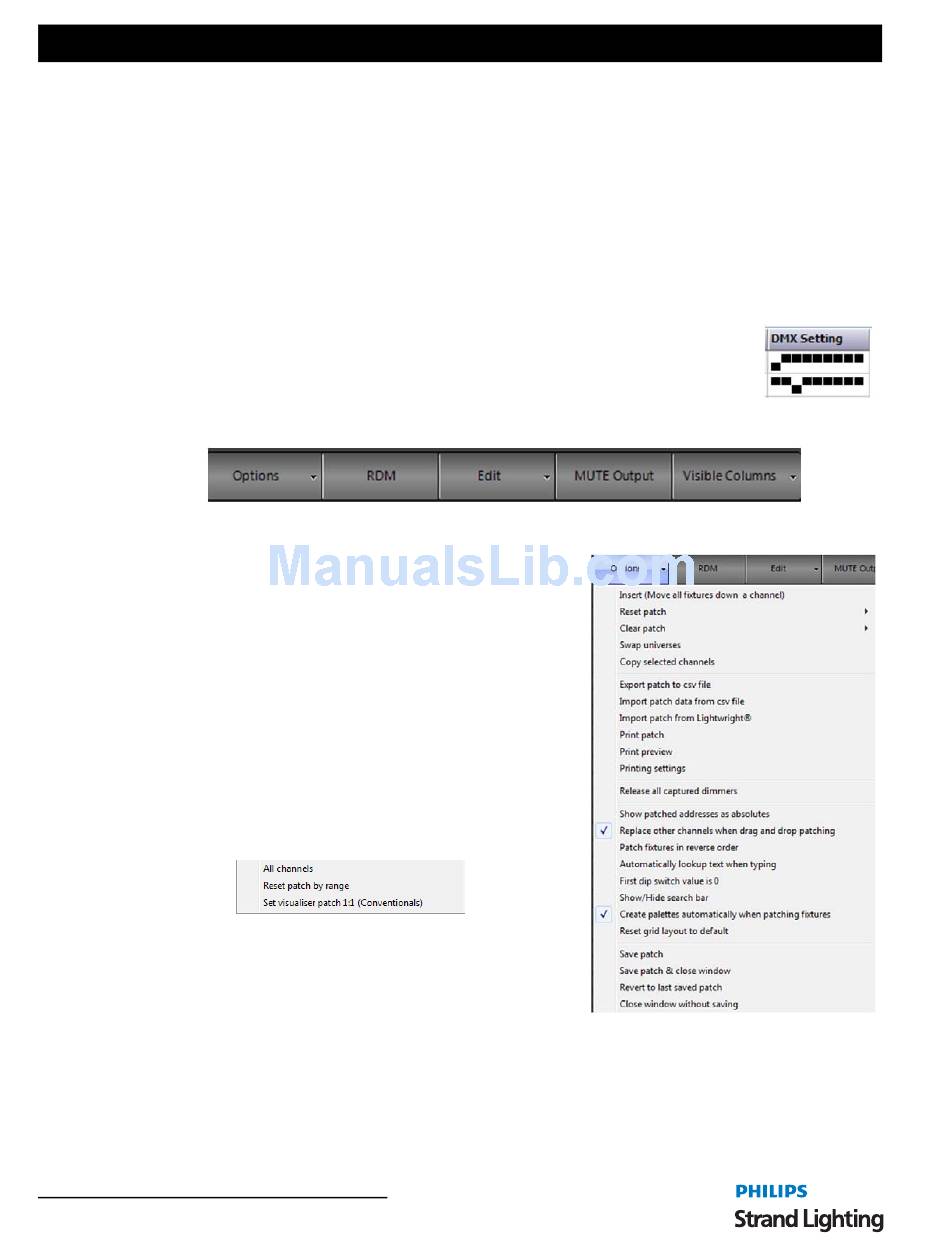

Command Buttons and Pulldowns

Options
Listed are the different options available to the user in patch.
The main issue to understand about patching in NEO is that the patch
data is not saved until you say Save Patch. This gives the user the
flexibility to make changes and restore the patch prior to committing
to it for the showfile.
Insert (Move All Fixtures Down a Channel)
Use the insert if you need to add a fixture to the patch and want to add
it between two other patched channels. The insert option will move
all of the patch information down one channel form the currently
selected channel.
Reset Patch
Selecting "Reset patch" from the menu will return all of the channels
back to a 1:1 patch. Each channel will be patched to the
corresponding dimmer number.
To reset only a range of channels select the desired channels by
clicking in the left of the system channels grid to highlight the desired
channels. Select "Reset patch by range" to only reset the highlighted
channels.
