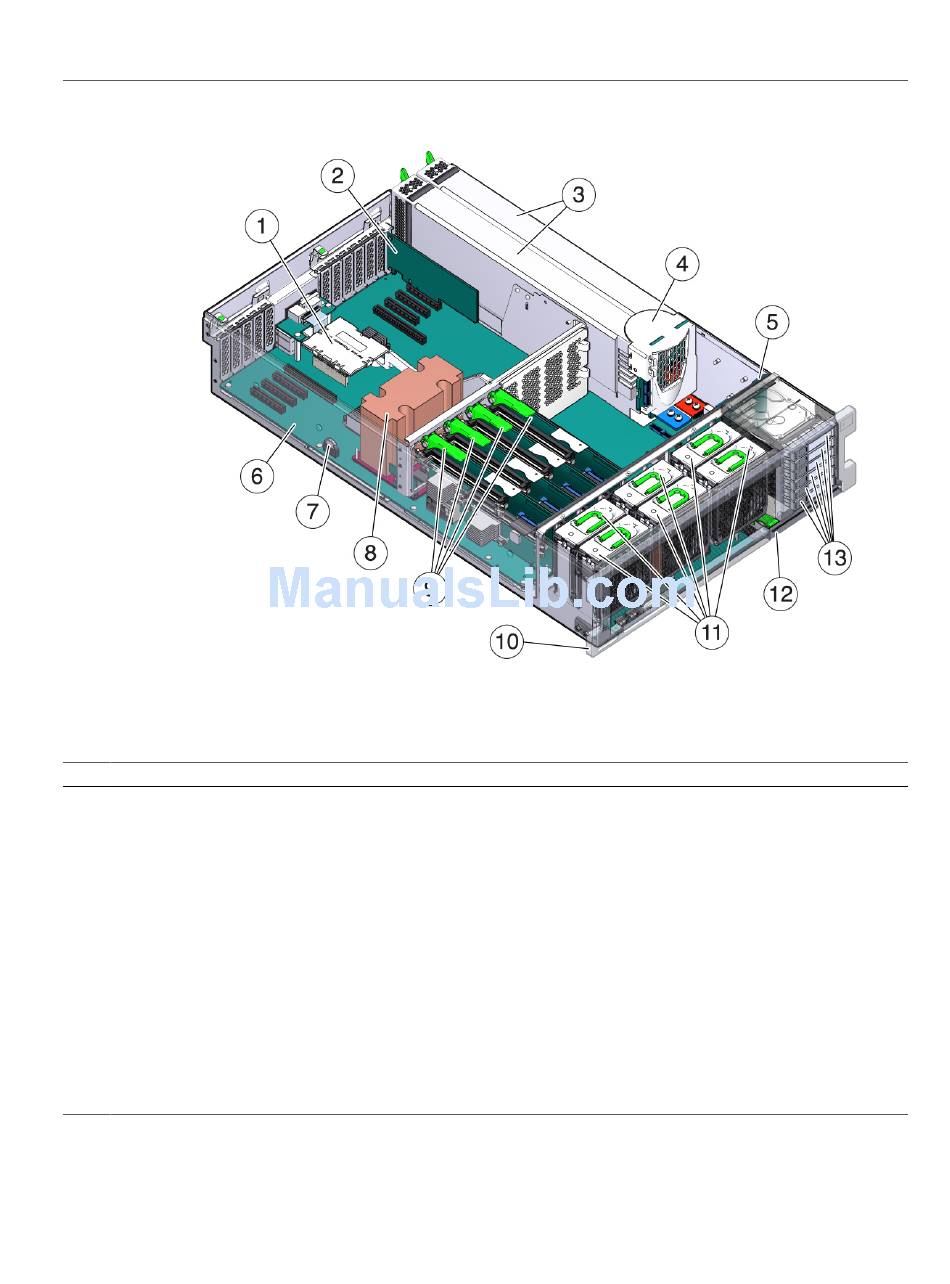

Internal Component Locations
This table applies to both the 2-processor server and the 1-processor server.
No.
Component
1
SP
2
PCIe card (in slot 1)
3
Power supplies
18
SPARC T5-2 Server Service Manual • February 2017
Oracle ILOM Target
/SYS/MB/SP
/SYS/MB/PCIE1
/SYS/MB/PCIE2
/SYS/MB/PCIE3
/SYS/MB/PCIE4
/SYS/MB/PCIE5
/SYS/MB/PCIE6
/SYS/MB/PCIE7
/SYS/MB/PCIE8
/SYS/PS0 (outer)
Links
"Servicing the SP" on page 129
"Servicing PCIe Cards" on page 121
"Servicing Power
Supplies" on page 89
