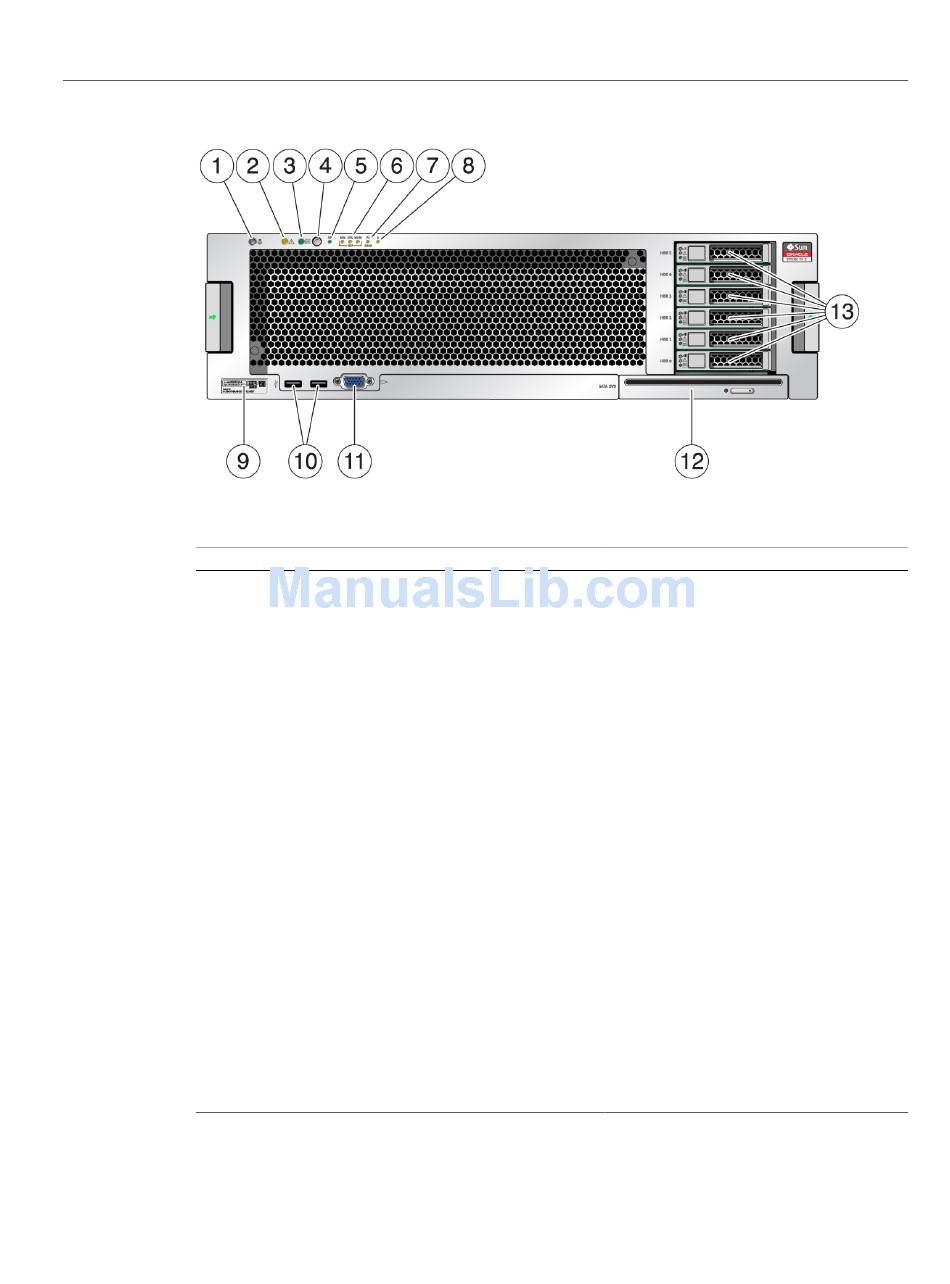

Front Panel Components (Service)
No.
1
2
3
4
5
6
7
8
9
10
11
12
14
SPARC T5-2 Server Service Manual • February 2017
Description
Locator LED/Locator button (white)
Service Action Required LED (amber)
Power/OK LED (green)
Power button
SP OK/Fault LED (green or amber)
Three Service Action Required LEDs (amber) for Fan
Module (FAN), Processor (CPU), and Memory (MEM)
Power Supply (PS) Fault (Service Action Required)
LED (amber)
Overtemperature LED (amber)
Serial number
Two USB 2.0 connectors
HD-15 video connector
SATA DVD drive
Links
"Front Panel Controls and
LEDs" on page 37
"Front Panel Controls and
LEDs" on page 37
"Front Panel Controls and
LEDs" on page 37
"Front Panel Controls and
LEDs" on page 37
"Front Panel Controls and
LEDs" on page 37
"Servicing the SP" on page 129
"Servicing Fan Modules" on page 81
"Servicing the Motherboard" on page 141
"Servicing Memory Risers and
DIMMs" on page 97
"Servicing Power Supplies" on page 89
"Front Panel Controls and
LEDs" on page 37
Server Installation, USB port
Server Installation, video port
"Servicing the DVD Drive" on page 113
