5 How to Install

5.7 Additional Connections

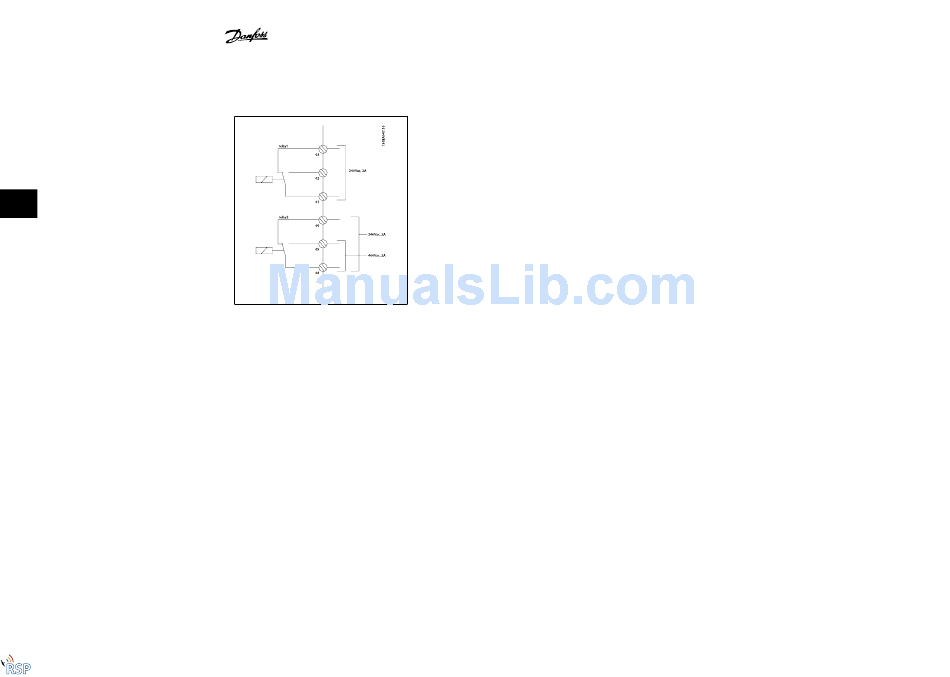

5.8.1 Relay Output
Relay 1
• Terminal 01: common
• Terminal 02: normal open 240 V AC
• Terminal 03: normal closed 240 V AC
Relay 2
5 • Terminal 04: common
• Terminal 05: normal open 400 V AC
• Terminal 06: normal closed 240 V AC
Function Relay
Relay 1 and relay 2 are programmed in par. 5-40
par. 5-41 On Delay, Relay , and par. 5-42 Off Delay, Relay .
Additional relay outputs by using option module MCB 105.
