5.8.3 Direction of Motor Rotation

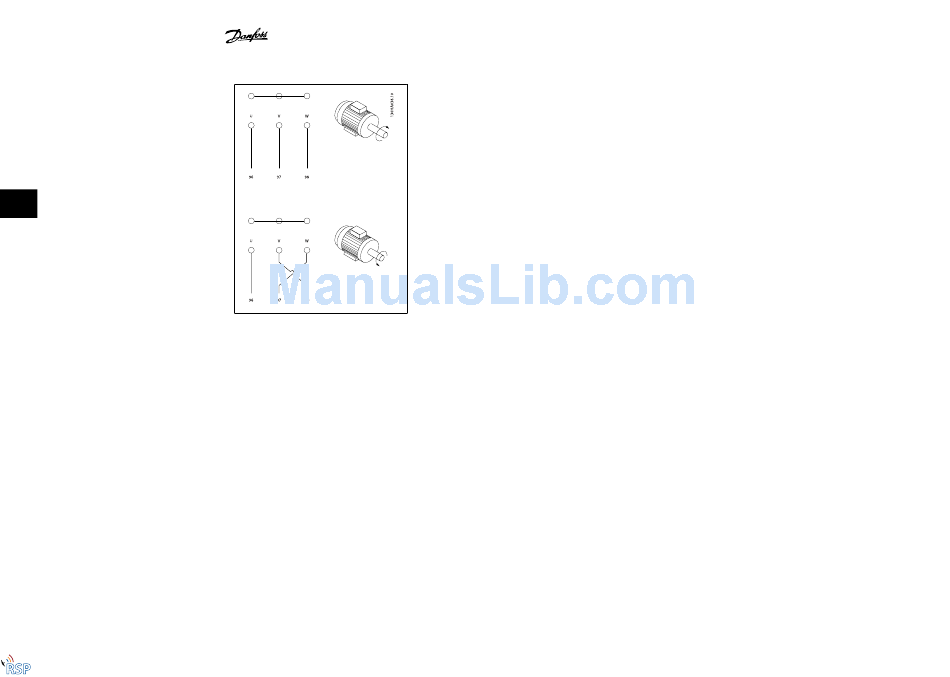

The default setting is clockwise rotation with the frequency converter
output connected as follows.
Terminal 96 connected to U-phase
Terminal 97 connected to V-phase
Terminal 98 connected to W-phase
The direction of motor rotation is changed by switching two motor pha-
ses.
Motor rotation check can be performed using par. 1-28
Motor Rotation
Check
and following the steps shown in the display.
5
5.8.4 Motor Thermal Protection
The electronic thermal relay in the frequency converter has received the UL-approval for single motor protection, when par. 1-90
tion
ETR Trip
Motor Current
is set for
and par. 1-24
is set to the rated motor current (see motor name plate).
178
MG.20.X1.22 - VLT
