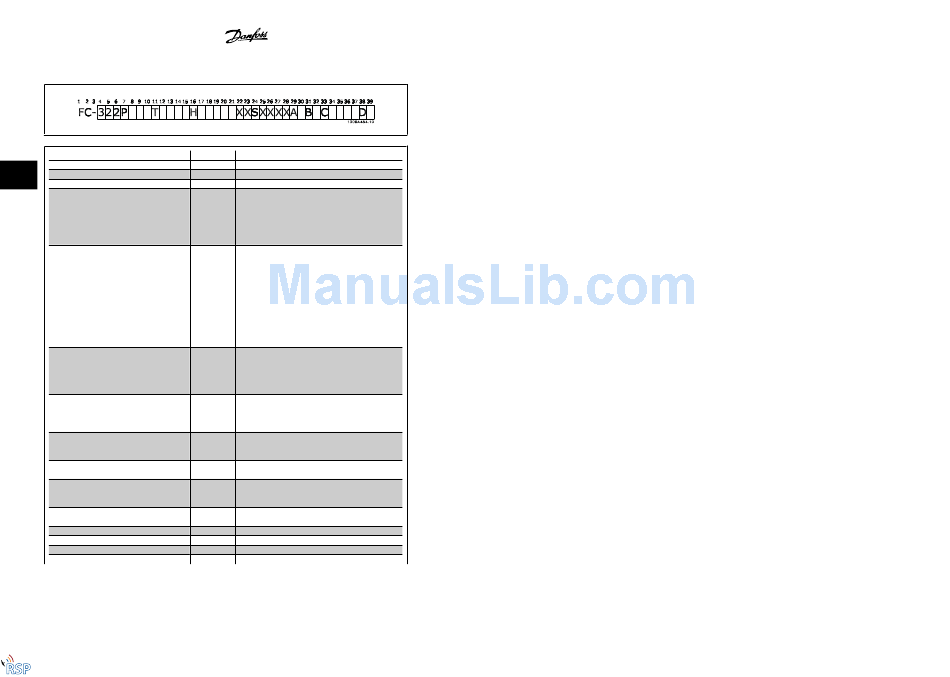

Type Code String - Danfoss VLT AutomationVTDrive FC322 Design Manual

4 How to Order

4.1.2 Type Code String

Description Pos.:
Product group & VLT Series 1-6
4
Power rating 7-10
Number of phases 11
Mains voltage 11-12
Enclosure 13-15
RFI filter 16-17
Brake 18
Display 19
Coating PCB 20
Mains option 21
Cable entries 22
23
Software release 24-27
Software language 28
A options 29-30
108
MG.20.X1.22 - VLT
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
http://www.remotesiteproducts.com/p-20783-Danfoss-131X8145-VLT-Automation-VT-Drive-VFD-FC322-460V-.5-HP.aspx
Automation VT Drive FC322 Design Guide
Possible choice
FC322
0.25 - 1200 kW
Three phases (T)
S2: 220-240 VAC single phase
S4: 380-480 VAC single phase
T 2: 200-240 VAC
T 4: 380-480 VAC
T 6: 525-600 VAC
T 7: 525-690 VAC
E20: IP20
E21: IP 21/NEMA Type 1
E55: IP 55/NEMA Type 12
E2M: IP21/NEMA Type 1 w/mains shield
E5M: IP 55/NEMA Type 12 w/mains shield
E66: IP66
F21: IP21 kit without backplate
G21: IP21 kit with backplate
P20: IP20/Chassis with backplate
P21: IP21/NEMA Type 1 w/backplate
P55: IP55/NEMA Type 12 w/backplate
HX: No RFI filter
H1: RFI filter class A1/B
H2: RFI filter class A2
H3: RFI filter class A1/B (reduced cable length)
H4: RFI filter class A2/A1
X: No brake chopper included
B: Brake chopper included
T: Safe Stop
U: Safe + brake
G: Graphical Local Control Panel (GLCP)
N: Numeric Local Control Panel (NLCP)
X: No Local Control Panel
X. No coated PCB
C: Coated PCB
D: Loadsharing
X: No Mains disconnect switch
8: Mains Disconnect + Loadsharing
X: Standard cable entries
O: European metric thread in cable entries
Reserved
Actual software version
AX: No options
®
is a registered Danfoss trademark
