5 How to Install
5

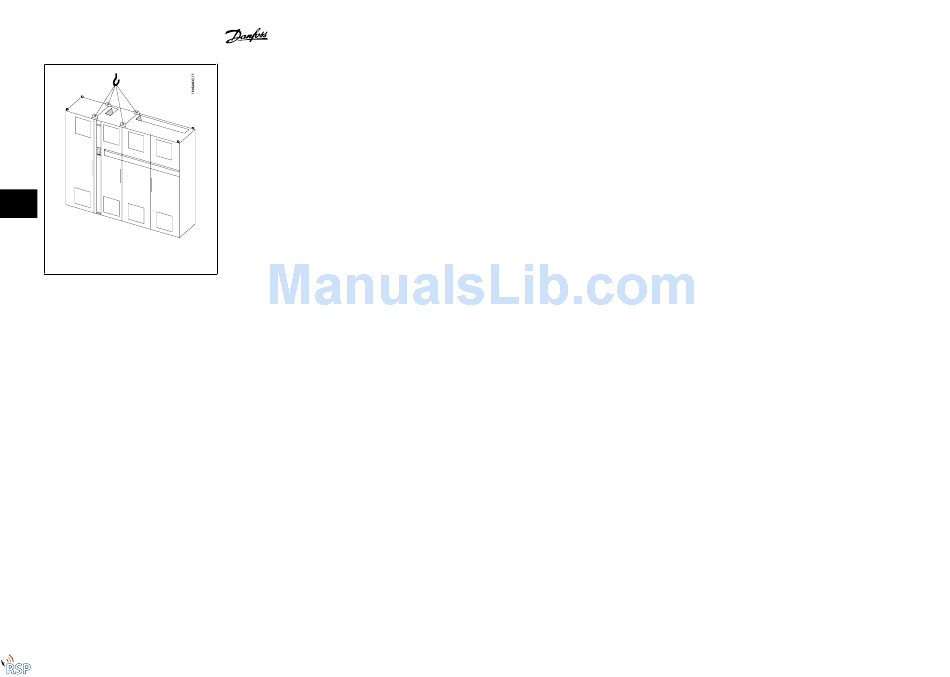

Illustration 5.8: Recommended lifting method, frame size
F4.
5.2.5 Tools Needed
To perform the mechanical installation the following tools are needed:
•
Drill with 10 or 12 mm drill
•
Tape measure
•
Wrench with relevant metric sockets (7-17 mm)
•
Extensions to wrench
•
Sheet metal punch for conduits or cable glands in IP 21/Nema 1 and IP 54 units
•
Lifting bar to lift the unit (rod or tube max. Ø 25 mm (1 inch), able to lift minimum 400 kg (880 lbs)).
•
Crane or other lifting aid to place the frequency converter in position
•
A Torx T50 tool is needed to install the E1 in IP21 and IP54 enclosure types.
